100kW Diesel Generator with ATS Auto Transfer Switch in Open Type Silent Type Configuration

This 100kW /125kVA diesel generator set is equipped with water‑cooled turbocharged intercooled industrial diesel engine and 100% copper brushless alternator. Two structure options are available: open‑frame type for good heat dissipation and easy maintenance, or silent sound‑proof canopy type for low‑noise outdoor installation. Fitted with ATS auto‑transfer switch for automatic power switching between utility mains and generator power, realizing unattended emergency power supply. Widely used for factories, hospitals, hotels, office buildings and construction sites. ISO & CE certificates are available for international tender and customs clearance.

• 100kW prime power /125kVA, standby power 110kW /137.5kVA, 4‑stroke water‑cooled turbocharged intercooled diesel engine, stable continuous heavy‑load performance
• Optional configuration:

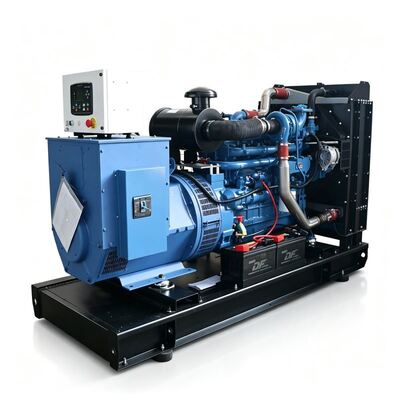

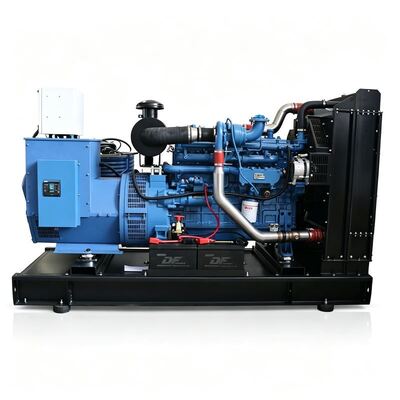

  • Open‑Frame: open‑ended steel base chassis, excellent heat dissipation, convenient for inspection and parts replacement

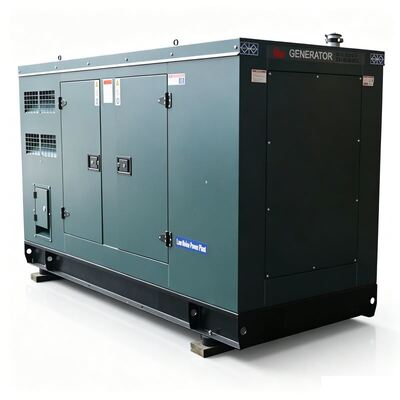

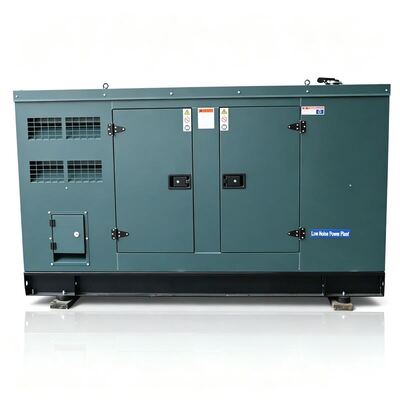

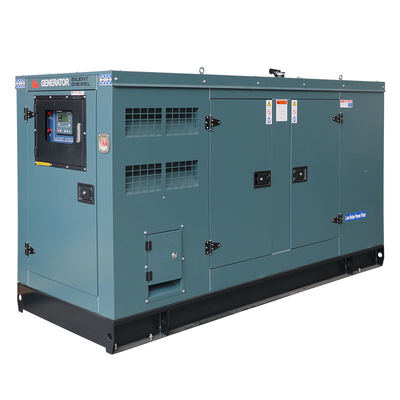

  • Silent Canopy: multi‑layer sound‑absorbing enclosure, rain‑proof & dust‑proof, low‑noise operation for noise‑sensitive sites
• 100% copper brushless alternator, H‑class insulation grade, IP23 protection grade, built‑in AVR, low temperature‑rise, stable voltage output under variable loads
• 3‑phase 4‑wire output, power factor 0.8 lagging; 50Hz / 60Hz optional, voltage 380V,400V,440V customizable
• 24V DC reliable electric starting system
• ATS auto‑transfer switch: auto‑start upon mains failure, auto‑stop when grid power recovers without manual operation
• Intelligent digital controller, local display of voltage, current, frequency, oil pressure, coolant temperature and accumulated running hours
• Full‑range multi‑protection: over‑voltage, under‑voltage, over‑current, short‑circuit, overspeed, low oil pressure, high‑temperature alarm & automatic shutdown
• Heavy‑duty anti‑vibration rubber mounts to reduce vibration transmission
• Optional mobile trailer, remote monitoring module, multi‑genset parallel cabinet
• Certificates: ISO, CE optional for import and project bidding

1. Flexible dual‑structure option: open‑frame for low‑cost easy maintenance; silent canopy for outdoor noise‑sensitive working environment
2. Heavy‑duty water‑cooled engine delivers reliable performance for long‑time standby emergency running
3. Pure‑copper brushless alternator guarantees high efficiency and stable power output for industrial‑commercial mixed loads
4. ATS auto‑transfer switch realizes fully automatic unattended power supply, protects critical equipment against power failure
5. Complete alarm and shutdown protection effectively avoid unit damage caused by abnormal working‑conditions
6. Support ISO & CE certificates, meet global import customs‑clearance and tender‑project requirements

Manufacturing factories, hospitals, hotels, shopping malls, office buildings, construction sites, providing emergency standby power for key commercial and industrial electrical equipment.
