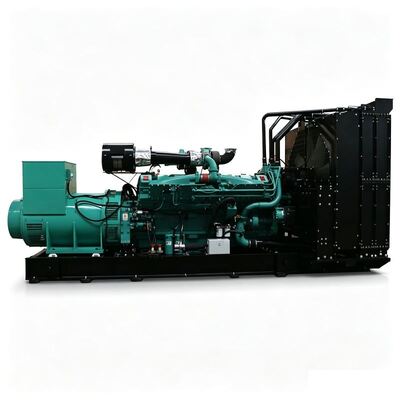

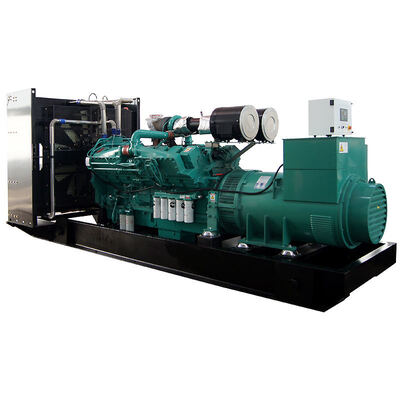

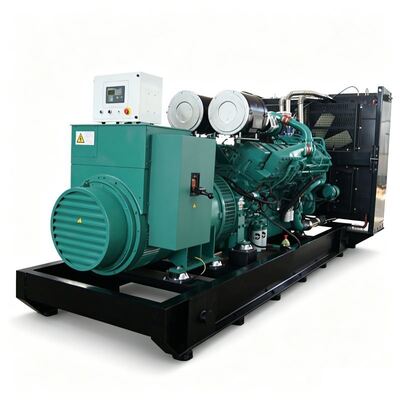

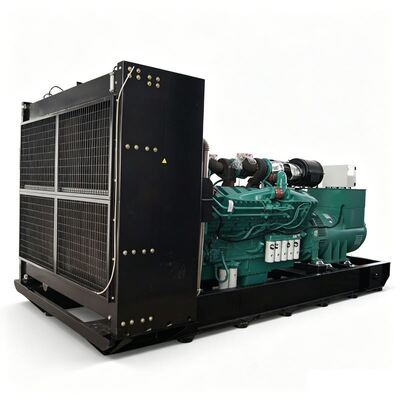

Open Type 1200KW Diesel Generator Set With ATS Auto Transfer Switch For Industrial Power

This 1200kW / 1500kVA open-frame heavy-duty diesel generator set is designed for large-scale industrial standby and prime power applications. Features a water-cooled V-cylinder turbocharged intercooled diesel engine paired with a high-efficiency 100% copper brushless alternator. Equipped with an ATS auto-transfer switch for automatic switching between utility power and generator power, enabling unattended emergency power supply. The open-frame base chassis provides excellent heat dissipation and easy access for inspection, maintenance, and component replacement. Widely used for large data centers, hospitals, manufacturing plants, commercial complexes, mining projects, and power plants without stable grid power. ISO & CE certificates available for international tender and customs clearance.

• 1200kW prime power / 1500kVA, standby power 1320kW / 1650kVA, heavy-duty 4-stroke turbocharged intercooled industrial diesel engine, reliable 24/7 continuous heavy-load operation performance
• Dual-frequency optional: 50Hz / 60Hz, corresponding speed 1500RPM / 1800RPM; multiple voltage options: 400V, 440V, 480V to meet global industrial standards
• Open-frame rugged base chassis, convenient for on-site installation, overhaul and spare-parts replacement
• 100% copper brushless alternator, H-class insulation grade, IP23 protection grade, low temperature-rise, stable voltage output under fluctuating heavy industrial loads
• 3-phase 4-wire output, power factor 0.8 lagging
• ATS auto-transfer switch, auto-start upon mains failure, auto-stop when mains power recovers, no manual intervention required
• High-end digital genset controller, real-time monitoring of voltage, current, frequency, oil pressure, coolant temperature, exhaust temperature and total running hours
• Full-range multi-protection: over-voltage, under-voltage, over-current, short-circuit, overspeed, low oil pressure, high-temperature alarm & automatic shutdown
• 24V DC reliable electric starting system; optional double starting motor for high-reliability requirements
• Heavy-duty anti-vibration rubber mounts to reduce vibration transmission
• Optional silent canopy, container housing, remote monitoring module, multi-genset parallel cabinet
• Certificates: ISO, CE available for international bidding and import customs-clearance

• Heavy-duty large-power industrial engine, proven stability for long-time continuous heavy-duty working conditions
• Open-frame design brings outstanding heat dissipation, easy maintenance for large-scale power station projects
• Pure-copper brushless alternator ensures low temperature-rise, high efficiency and long service-life under fluctuating heavy industrial loads
• ATS auto-transfer switch realizes fully automatic power switching, guarantees uninterrupted power supply for critical loads
• Comprehensive alarm and shutdown protection effectively protects genset from abnormal working-condition damage
• Support international standard certificates, meet global large-project tender and import customs-clearance requirements

Large-scale data centers, grade-A hospitals, heavy-industry manufacturing plants, commercial complexes, mining sites, power plants, providing emergency standby power and prime power for critical industrial equipment.
