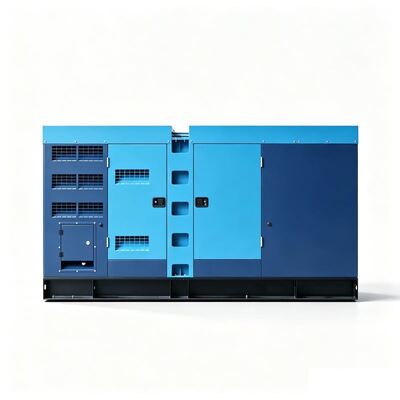

300KVA Silent Type Diesel Generator with ATS Auto Transfer Switch for Industrial Power Supply

Brand Name:	JFP
Model Number:	JFP-240GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Warranty:

1 Year

Type:

Silent Type

Controller:

Deepsea/ComAp/Smartgen

Phase:

3 Phase 4 Wire

Prime Power:

240kW / 300kVA

Standby Power:

264kW / 330kVA

Frequency:

50Hz / 60Hz Optional

Rotational Speed:

1500RPM(50Hz) / 1800RPM(60Hz)

Cooling Method:

Water-Cooled

Rated Voltage:

380V / 400V / 440V Customizable

Phase & Wire:

3 Phase 4 Wire

Power Factor:

0.8 Lagging

Packaging Details:

Plyfilm or plywood

Highlight:

300KVA Diesel Generator with ATS

Silent Type Diesel Generator with ATS

300KVA Silent Type Genset

Product Description

JFP 300KVA 240KW Silent Type Diesel Generator with ATS 3 Phase 4 Wire 50/60Hz

This 240kW / 300kVA silent-enclosure diesel generator set adopts water-cooled turbocharged intercooled industrial diesel engine and 100% copper brushless alternator. Equipped with heavy-duty sound-proof canopy to lower running noise, suitable for noise-sensitive working environments. ATS auto-transfer switch is equipped for automatic switching between mains power and generator power to realize unattended emergency power supply. Supports dual-frequency 50Hz / 60Hz for global market demands. Widely applied in factories, hospitals, hotels, shopping malls, office buildings and construction sites. ISO and CE certificates are available for international tender and customs clearance.

Main Features

240kW prime power / 300kVA, standby power 264kW / 330kVA, 4-stroke water-cooled turbocharged intercooled diesel engine, excellent continuous heavy-load performance
Silent sound-proof canopy with multi-layer sound-absorbing cotton, rain-proof and dust-proof, reduces noise for outdoor installation
100% copper brushless alternator, H-class insulation grade, IP23 protection grade, low temperature-rise, stable voltage output under variable loads
3-phase 4-wire output, dual-frequency 50Hz / 60Hz optional; multiple voltage: 400V, 440V, 380V customizable
ATS auto-transfer switch, auto-start upon mains failure, auto-stop when utility power recovers without manual operation
Intelligent digital controller, real-time monitor voltage, current, frequency, oil pressure, coolant temperature, exhaust temperature and accumulated running hours
Full-range protection: over-voltage, under-voltage, over-current, short-circuit, overspeed, low oil pressure, high-temperature alarm & auto shutdown
24V DC reliable electric starting system
Integrated large-capacity base fuel tank for long-hour continuous operation
Heavy-duty anti-vibration rubber mounts to isolate vibration transmission
Optional open-frame structure, mobile trailer, remote monitoring module, parallel cabinet for multi-genset operation
Certificates: ISO, CE optional for import and project bidding

Technical Specifications

Item	Parameter
Prime Power	240kW / 300kVA
Standby Power	264kW / 330kVA
Frequency	50Hz / 60Hz Optional
Rotational Speed	1500RPM (50Hz) / 1800RPM (60Hz)
Cooling Method	Water-Cooled
Rated Voltage	380V / 400V / 440V customizable
Phase & Wire	3 Phase 4 Wire
Power Factor	0.8 Lagging
Structure	Silent Sound-Proof Canopy Type
Starting Mode	24V DC Electric Start
Automatic Device	ATS Auto Transfer Switch
Alternator	100% Copper Brushless Alternator, H-Class Insulation, IP23
Vibration Damping	Heavy-duty anti-vibration rubber mounts
Control System	Industrial intelligent controller with full-range alarm & shutdown protection
Certificates	ISO, CE optional
Application	Factory, hospital, hotel, mall, office building emergency standby power
Optional	Open-frame, mobile trailer, remote monitoring, parallel cabinet

Competitive Advantages

Integrated silent canopy, low-noise operation, rain-proof dust-proof for direct outdoor placement
100% copper alternator ensures high efficiency and stable power output for commercial and industrial loads
ATS auto-transfer switch achieves fully automatic power supply, guarantees uninterrupted power for critical equipment
Heavy-duty water-cooled engine delivers reliable performance for long-time standby emergency running
Complete alarm and shutdown protection prevents genset damage under abnormal conditions
Dual-frequency design meets different country grid standards; ISO & CE support global import and tender projects

Application Scenarios

Industrial factories, hospitals, hotels, shopping malls, office buildings, residential communities, construction sites, providing emergency standby power for critical commercial and industrial electrical equipment.
