| Brand Name: | JFP |
| Model Number: | JFP-750GF |
| MOQ: | 1 |
| Payment Terms: | L/C,T/T |

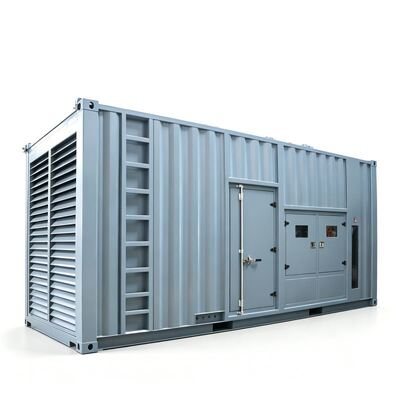

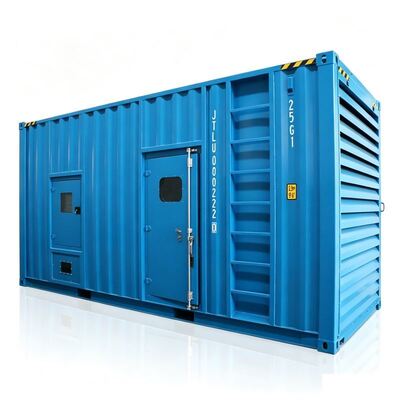

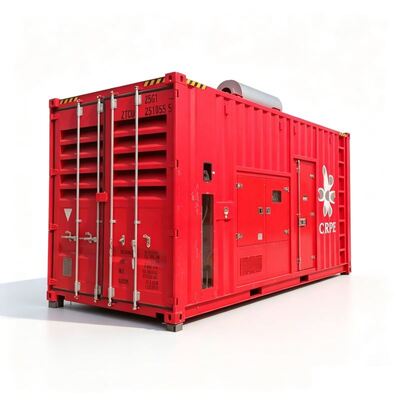

This 750kW /937.5kVA container‑type silent diesel generator set adopts heavy‑duty water‑cooled turbocharged intercooled industrial diesel engine and high‑efficiency 100% copper brushless alternator. Rated 60Hz, 1800RPM, housed inside integrated weather‑proof sound‑proof 20‑foot /40‑foot standard container enclosure. Equipped with ATS auto‑transfer switch to realize automatic switching between utility mains and generator power for unattended emergency power supply.
The container design integrates noise reduction, rain‑proof, dust‑proof, anti‑corrosion functions, convenient for sea‑land transportation and outdoor fixed installation. Widely used for data centers, mining sites, large factories, municipal projects and commercial complexes. ISO & CE certificates are available for international tender and customs clearance.
| Item | Parameter |
|---|---|
| Prime Power | 750kW / 937.5kVA |
| Standby Power | 825kW / 1031kVA |
| Frequency | 60Hz |
| Rotational Speed | 1800RPM |
| Cooling Method | Water‑Cooled |
| Rated Voltage | 480V/277V (440V /600V customizable) |
| Phase & Wire | 3 Phase 4 Wire |
| Power Factor | 0.8 Lagging |
| Structure | Silent Container Type (20ft /40ft optional) |
| Starting Mode | 24V DC Electric Start |
| Automatic Device | ATS Auto Transfer Switch |
| Alternator | 100% Copper Brushless Alternator, H‑Class Insulation, IP23 with AVR |
| Enclosure | Weather‑proof, dust‑proof, sound‑proof container cabin with maintenance doors |
| Vibration Damping | Heavy‑duty anti‑vibration rubber mounts |
| Control System | Industrial digital controller with full‑range alarm & shutdown protection, remote communication support |
| Certificates | ISO, CE optional |
| Application | Data center, mining site, large factory, municipal project emergency standby power |
| Optional | External silencer, multi‑genset parallel cabinet, fire alarm system |
Large‑scale data centers, mining projects, heavy‑industry manufacturing plants, municipal infrastructure projects, providing emergency standby power for key industrial facilities.
