250kW Weichai Water Cooled Diesel Engine Generator Set With ATS Remote Start

Brand Name:	JFP
Model Number:	JFP-250GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Controller:

Deepsea/ComAp/Smartgen

Warranty:

1 Year

Type:

Silent Type/Open Type

Phase:

3 Phase 4 Wire

Prime Power:

250kW / 312.5kVA

Standby Power:

275kW / 343.75kVA

Frequency:

50Hz

Rotational Speed:

1500RPM

Rated Voltage:

400V/230V (380V Customizable)

Power Factor:

0.8 Lagging

Packaging Details:

Plyfilm or plywood

Highlight:

Weichai Diesel Engine Generator Set

250kW Diesel Engine Generator Set

Water Cooled Diesel Engine Generator Set

Product Description

JFP 250kw 50Hz Silent Open Frame Diesel Generator Set

This 250kW / 312.5kVA diesel generator set is powered by genuine Weichai water-cooled industrial diesel engine, matched with high-efficiency 100% copper brushless alternator. Available in open-frame or silent sound-proof canopy version with ATS auto-transfer switch and remote start function for unattended automatic power supply.

Main Features

250kW prime power / 312.5kVA, standby power 275kW / 343.75kVA
Genuine Weichai 4-stroke inline turbocharged intercooled diesel engine
Dual-structure optional: open-frame chassis or silent canopy
100% copper brushless alternator with H-class insulation and IP23 protection
3-phase 4-wire output, power factor 0.8 lagging
24V DC electric starting system with remote start function
ATS auto-transfer switch for automatic power failure response
Intelligent digital controller with comprehensive monitoring
Full-range multi-protection system with automatic shutdown
Heavy-duty anti-vibration rubber mounts

Technical Specifications

Item	Parameter
Prime Power	250kW / 312.5kVA
Standby Power	275kW / 343.75kVA
Engine Brand	Genuine Weichai Industrial Diesel Engine
Frequency	50Hz
Rotational Speed	1500RPM
Cooling Method	Water-Cooled
Rated Voltage	400V/230V (380V customizable)
Phase & Wire	3 Phase 4 Wire
Power Factor	0.8 Lagging
Structure	Open-Frame / Silent Sound-Proof Canopy Optional
Starting Mode	24V DC Electric Start, Remote Start Function
Automatic Device	ATS Auto Transfer Switch
Alternator	100% Copper Brushless Alternator, H-Class Insulation, IP23 with AVR
Vibration Damping	Heavy-duty anti-vibration rubber mounts
Control System	Intelligent controller with remote communication & full-range alarm & shutdown protection
Certificates	ISO, CE optional

Competitive Advantages

Well-known Weichai engine with mature technology and convenient after-sales maintenance
Flexible structure choice for different installation requirements
100% copper winding alternator ensures high efficiency and long service life
ATS plus remote start enable unattended operation for critical equipment
Complete multi-protection system prevents damage under abnormal conditions
ISO & CE certification supports global import and international bidding

Application Scenarios

Manufacturing factories, hospitals, hotels, shopping malls, office buildings, construction sites - providing emergency standby power for key commercial and industrial electrical equipment.

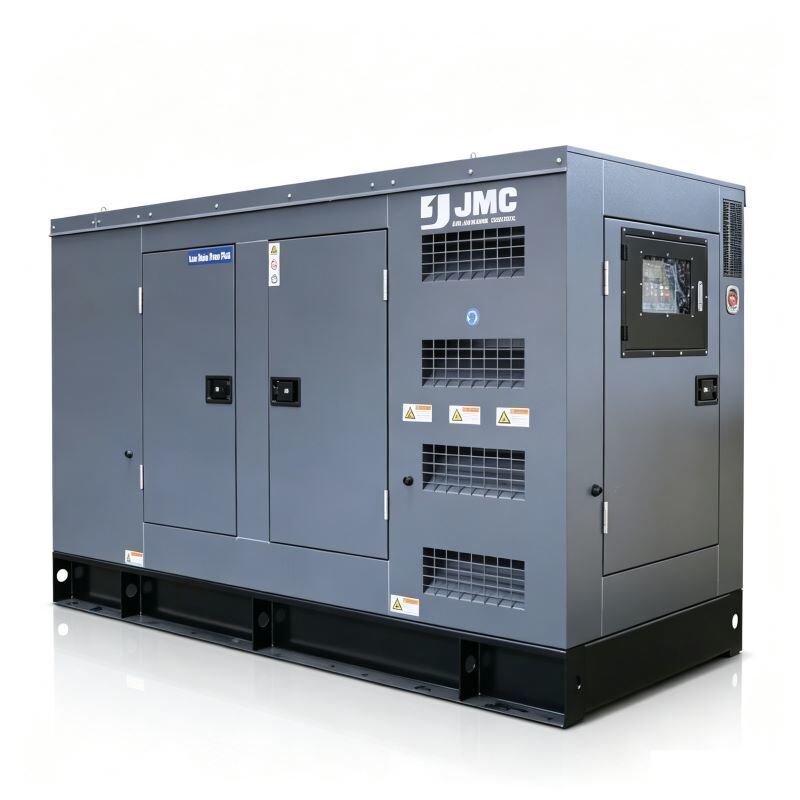

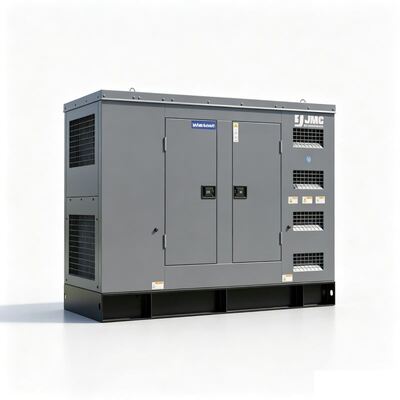

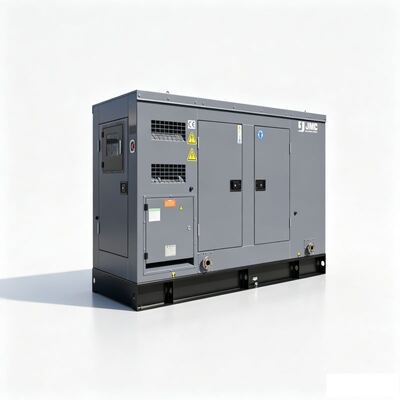

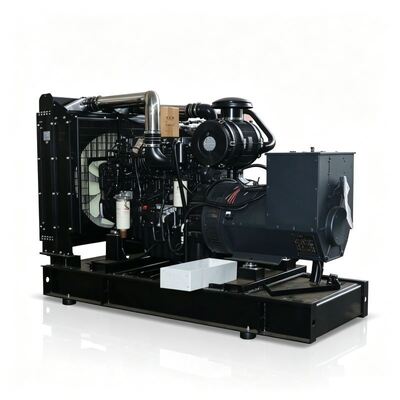

Product Images
