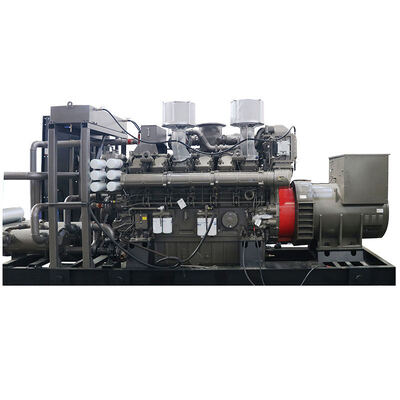

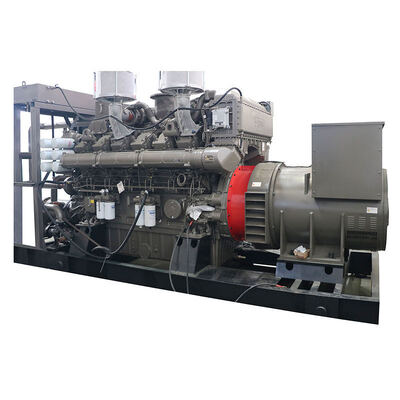

Yuchai YC12VC1850L-C22 1500kVA Open Frame Marine Diesel Generator Set 3 Phase 4 Wire Output

This 1200kW /1500kVA heavy-duty open-frame marine diesel generator set is driven by genuine Yuchai YC12VC1850L‑C22 V12 marine-grade diesel engine. Specially engineered for large-vessel onboard power supply under harsh salt-fog, high-humidity and heavy-vibration marine operating environments. Configured with marine heat-exchanger cooling system and dedicated seawater pump for closed fresh-water circulation cooled by seawater. Rated 60Hz, 3-phase 4-wire output, 24V DC electric starting system. Open-frame structural design provides excellent heat dissipation and easy access for inspection and maintenance inside large ship engine rooms. It serves as main auxiliary power or emergency backup power for ocean-going cargo ships, large fishing vessels, passenger ferries and offshore working crafts. Marine classification certificates including CCS, BV, ABS, EIAPP are optional for ship inspection, registration and marine-project tender.

• 1200kW prime power /1500kVA, standby power 1320kW /1650kVA, powered by original Yuchai YC12VC1850L‑C22 V12 four-stroke turbocharged intercooled marine diesel engine, 79.17L displacement, compliant with IMO Tier-II marine emission standards, stable continuous heavy-load performance under vessel rolling and pitching conditions.
• Open-frame marine-grade layout, outstanding heat-dissipation performance, convenient for routine checking, troubleshooting and spare-parts replacement
• Complete marine cooling assembly: marine heat-exchanger matched with dedicated seawater pump, fresh-water closed-loop circulation cooled by external seawater
• 100% copper brushless marine alternator, H-class insulation grade, anti-condensation tropical treatment, IP23 protection grade against salt-fog and cabin humidity
• 3-phase 4-wire output, rated 60Hz, multiple voltage options: 440V, 480V for global marine vessel standards
• Marine-specific digital control panel, real-time monitoring voltage, current, frequency, oil pressure, coolant temperature, seawater pump operating status and total running hours
• Full marine-grade protection: over-voltage, under-voltage, over-current, short-circuit, overspeed, low oil pressure, high-temperature, seawater flow failure alarm & auto shutdown
• 24V DC reliable electric starting system; optional auto-start, ATS auto-transfer switch and remote monitoring function
• Heavy-duty marine anti-vibration rubber mounts to buffer hull vibration generated during sailing
• Salt-fog anti-corrosion coating for corrosive humid marine cabin atmosphere
• Optional certificates: CCS, BV, ABS, EIAPP for ship survey, bidding and customs clearance.
• Optional marine silencer, parallel cabinet for multi-genset combined power supply

• Genuine Yuchai YC12VC1850L‑C22 V12 marine engine, high power density, proven sea-going reliability, global spare-parts supply and after-sales service network
• Open-frame layout delivers outstanding heat dissipation, easy maintenance for large-vessel engine-room space
• Professional heat-exchanger plus seawater pump cooling system, stable heat dissipation adapting to seawater cooling condition for long-time continuous voyage operation
• 100% copper marine alternator delivers high generating efficiency, low temperature rise and long service-life under salt-fog marine harsh conditions
• Full marine-oriented modification: anti-corrosion painting, vibration-absorbing mounts, seawater flow monitoring, adapt to complex ship rolling and pitching environment
• Support international marine classification certificates, satisfy official ship inspection, vessel registration and offshore-project tender requirements

Ocean-going large-tonnage cargo ships, big-size ocean-going fishing vessels, passenger ferries, offshore engineering vessels, providing main-use auxiliary power and emergency standby power for navigation instruments, communication systems and various ship-borne electrical equipment.
