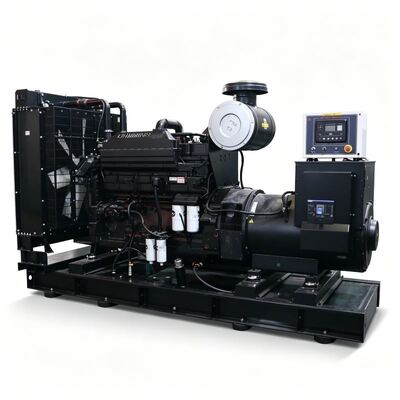

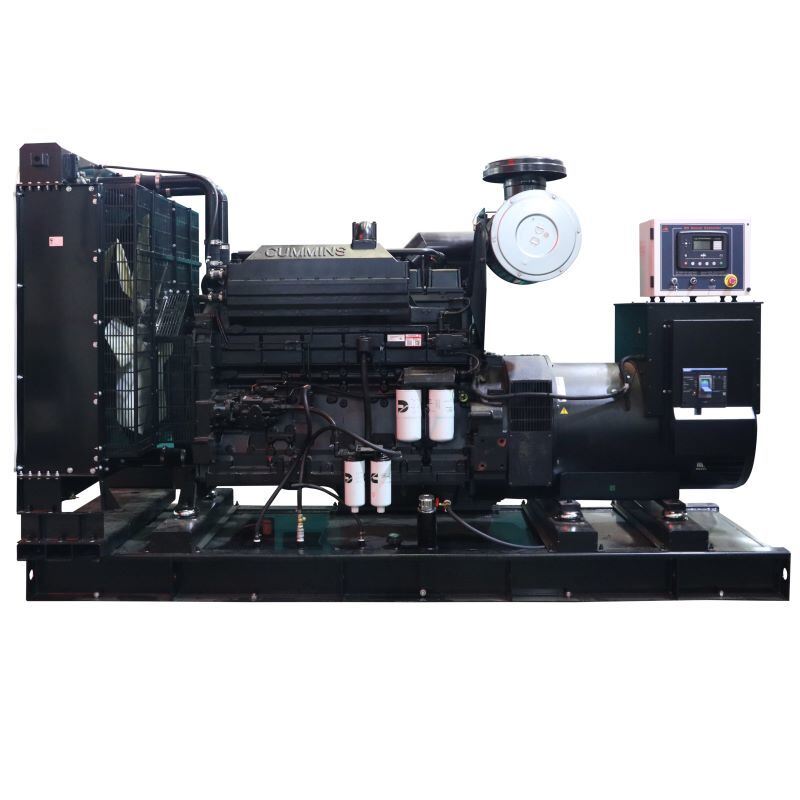

450KW Open Frame Marine Diesel Genset Cummins Engine For Ship Emergency Power

This 450kW / 563kVA open-frame marine diesel generator set is powered by genuine Cummins KTA19-DM inline 6-cylinder marine-grade diesel engine. Designed for harsh marine operating conditions including salt-fog corrosion, high humidity, heavy vibration and frequent vessel rolling & pitching. Equipped with marine heat-exchanger cooling system and bronze seawater pump for closed fresh-water circulation cooled by raw seawater. Open-frame structure provides excellent heat dissipation and convenient inspection & maintenance inside ship engine room. It can serve as main-use auxiliary power or emergency backup power for ocean-going cargo ships, tugboats, ferries, large fishing vessels and offshore working crafts. CCS, BV, ABS marine classification certificates are optional for ship inspection, registration and marine-project tender.

• 450kW prime power / 563kVA, standby power 495kW / 619kVA, driven by original Cummins KTA19-DM 4-stroke inline 6-cylinder turbocharged intercooled marine diesel engine, 19L displacement, stable long-time continuous heavy-load sea-going performance
• Open-frame marine-grade layout, outstanding heat-dissipation performance, easy access for routine checking, troubleshooting and spare-parts replacement
• Complete marine cooling assembly: marine heat-exchanger matched with anti-corrosion seawater pump, fresh-water closed-loop circulation cooled by external seawater
• 100% copper brushless marine alternator (optional Stamford / Marathon / Leroy-Somer), H-class insulation grade, anti-condensation tropical treatment, IP23 protection grade against salt-fog and cabin humidity
• 3-phase 4-wire output, 50Hz / 60Hz optional, multiple voltage options: 400V, 440V, 480V for global marine vessel standards
• Marine-specific digital control panel, real-time monitoring voltage, current, frequency, oil pressure, coolant temperature, seawater pump running status and total running hours
• Full marine-grade protection: over-voltage, under-voltage, over-current, short-circuit, overspeed, low oil pressure, high-temperature, seawater flow failure alarm & auto shutdown
• 24V DC reliable electric starting system; optional auto-start, ATS auto-transfer switch and remote monitoring function
• Heavy-duty marine anti-vibration rubber mounts to buffer hull vibration generated during sailing
• Salt-fog anti-corrosion coating for corrosive humid marine cabin atmosphere
• Optional certificates: CCS, BV, ABS, EIAPP for ship survey, bidding and customs clearance
• Optional marine silencer, parallel cabinet for multi-genset combined power supply

• Genuine Cummins KTA19-DM marine engine with proven sea-going reliability, global spare-parts supply and worldwide after-sales service network
• Open-frame layout delivers outstanding heat dissipation, simple inspection and low-cost maintenance for ship engine-room space
• Professional heat-exchanger plus seawater pump cooling system, stable heat dissipation adapting to seawater cooling condition for long-time continuous voyage operation
• Famous-brand 100% copper marine alternator delivers high generating efficiency, low temperature rise and long service-life under salt-fog marine harsh conditions
• Full marine-oriented modification: anti-corrosion painting, vibration-absorbing mounts, seawater flow monitoring, perfectly adapt to complex ship rolling-pitching environment
• Support international marine classification certificates, satisfy official ship inspection, vessel registration and offshore-project tender requirements

Ocean-going large-tonnage cargo ships, tugboats, passenger ferries, large-size ocean-going fishing vessels, offshore engineering vessels, providing main-use auxiliary power and emergency standby power for navigation instruments, communication systems and various ship-borne electrical equipment.
