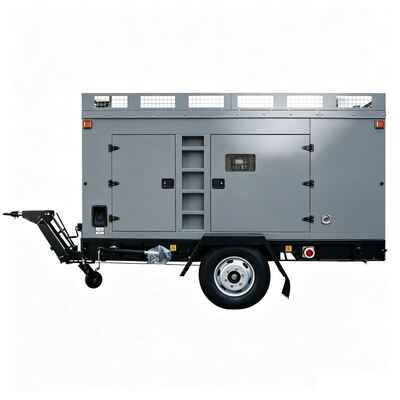

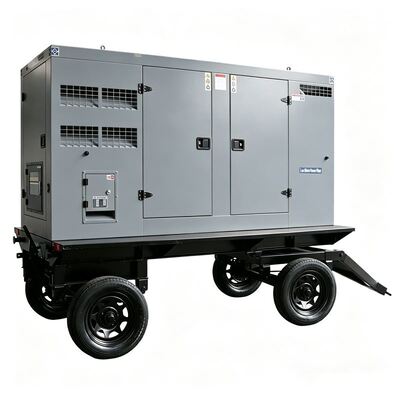

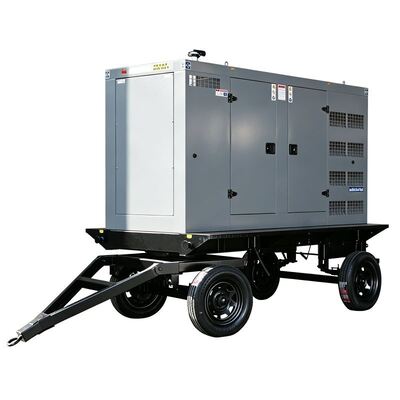

80KW 3 Phase Mobile Trailer Diesel Generator with ATS for Outdoor Power Supply

This 80kW / 100kVA mobile trailer-mounted diesel generator set is built for flexible outdoor power supply. Equipped with heavy-duty road-towable trailer chassis with drawbar and stabilizer support legs, convenient for quick relocation between different job sites. Fitted with water-cooled industrial diesel engine, 100% copper brushless alternator and ATS auto-transfer switch. It realizes fully automatic power switching for unattended emergency power management. Suitable for construction sites, outdoor engineering projects, temporary events, mining sites and remote areas without stable grid power. ISO & CE certificates are available for global tender and customs clearance.

• 80kW prime power / 100kVA, standby power 88kW / 110kVA, industrial four-stroke turbocharged intercooled diesel engine, stable heavy-load continuous running performance
• Heavy-duty mobile trailer chassis, road-towable design, drawbar for vehicle towing, stabilizer support legs for safe parking, rugged tires adapt to rough road conditions
• 100% copper brushless alternator, H-class insulation grade, IP23 protection grade, low temperature-rise, high generating efficiency under variable loads
• 3-phase 4-wire output, 50Hz / 60Hz optional, multiple voltage options: 380V, 400V, 415V, 480V for global industrial standards
• ATS auto-transfer switch, auto-start upon mains failure, auto-stop when mains power recovers, no manual operation required
• Intelligent genset controller, real-time monitoring voltage, current, frequency, oil pressure, coolant temperature, exhaust temperature and cumulative running hours
• Full-range multi-protection: over-voltage, under-voltage, over-current, short-circuit, overspeed, low oil pressure, high-temperature alarm & automatic shutdown
• 24V DC reliable electric starting system; large built-in base fuel tank for long-hour continuous operation
• Heavy-duty anti-vibration rubber mounts to reduce vibration transmission
• Optional silent canopy, open-frame version, remote monitoring module, parallel cabinet for multi-genset combined power supply
• Certificates: ISO, CE available for project bidding and import customs clearance

• Mobile trailer design enables fast transportation, flexible deployment for various temporary outdoor working sites
• Heavy-duty industrial engine guarantees stable continuous output, good adaptability to harsh field conditions
• 100% copper alternator features low temperature-rise, high efficiency and long service-life under fluctuating field loads
• ATS cooperates with auto-start controller to achieve fully automatic power switching, greatly reduces on-site manual operation
• Complete multi-protection system effectively prevents unit damage caused by abnormal working conditions
• Support international standard certificates, meet global project tender and import customs clearance requirements

Construction sites, mining operations, outdoor engineering projects, temporary stage events, field rescue, remote off-grid areas, emergency standby power for temporary industrial equipment.
