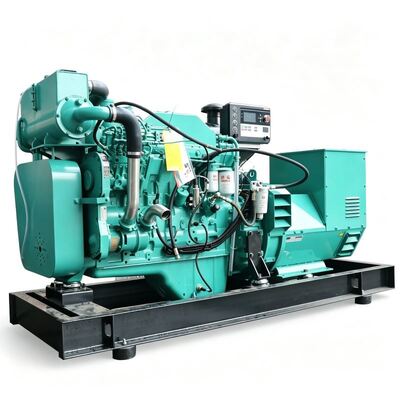

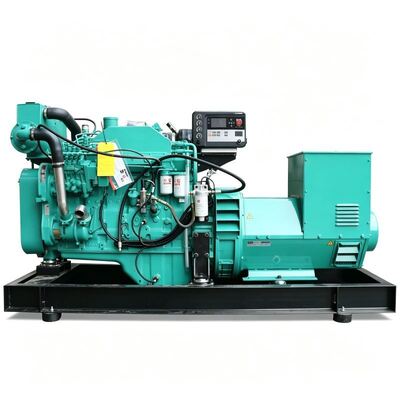

300KW Marine Diesel Genset With 100% Copper Alternator And AMF Controlled Auto Start

This 300kW open-type marine diesel generator set is fitted with 100% copper brushless marine alternator, AMF intelligent controller, auto-start function and ATS auto transfer switch. With salt-fog anti-corrosion treatment and heavy-duty anti-vibration mounts, the genset adapts to salt-spray, high-humidity and high-vibration marine environment. It serves as main auxiliary power or emergency backup power for large cargo ships, fishing vessels, ferries and offshore working crafts. Marine classification certificates including CCS, BV, ABS are optional for ship inspection, registration and project bidding.

• 300kW prime power output, marine-spec diesel engine, stable performance under vessel rolling, pitching and continuous heavy-load operation
• Open-frame marine structure, excellent heat dissipation, easy access for routine inspection, troubleshooting and parts replacement inside engine room
• Professional marine heat-exchanger water-cooled system, compatible with seawater cooling for marine application
• 100% copper brushless marine alternator, H-class insulation grade, anti-condensation tropical treatment, IP23 protection grade
• 3-phase 4-wire output, 50Hz / 60Hz optional, multiple voltage options: 400V, 440V, 230V to meet global marine power standards
• AMF marine controller, supports auto-start upon shore-power failure, auto-stop when shore power recovers
• ATS auto transfer switch realizes automatic load switching between shore power and genset power, achieving unattended onboard power management
• Real-time monitoring of voltage, current, frequency, oil pressure, coolant temperature, exhaust temperature and running hours
• Full marine-grade protection: over-voltage, under-voltage, over-current, short-circuit, overspeed, low oil pressure, high-temperature alarm & auto shutdown
• 24V DC reliable electric starting system, reserved interface for remote monitoring
• Heavy-duty marine anti-vibration rubber mounts to buffer hull vibration during sailing
• Salt-fog anti-corrosion coating for humid and corrosive cabin atmosphere
• Optional certificates: CCS, BV, ABS for ship survey and customs clearance
• Optional marine silencer, parallel cabinet for multi-genset combined power supply

• Open-frame layout provides outstanding heat dissipation, convenient maintenance for limited marine engine-room space
• Professional marine heat-exchanger cooling system supports seawater cooling, reliable for long-term voyage operation
• 100% copper marine alternator resists cabin humidity and salt-fog, high efficiency and long service-life under variable load
• AMF controller cooperating with ATS realizes fully automatic power switching between shore power and generator, reduces manual operation onboard
• Complete marine-oriented modification: anti-corrosion painting, vibration-absorbing mounts, fit for complex ship sailing environment
• Support international marine classification certificates, satisfy ship inspection, registration and offshore project tender requirements

Large-tonnage cargo ships, big-size fishing vessels, passenger ferries, coastal working boats, offshore auxiliary crafts, onboard auxiliary power and emergency standby power for navigation, communication and ship-borne electrical equipment.
