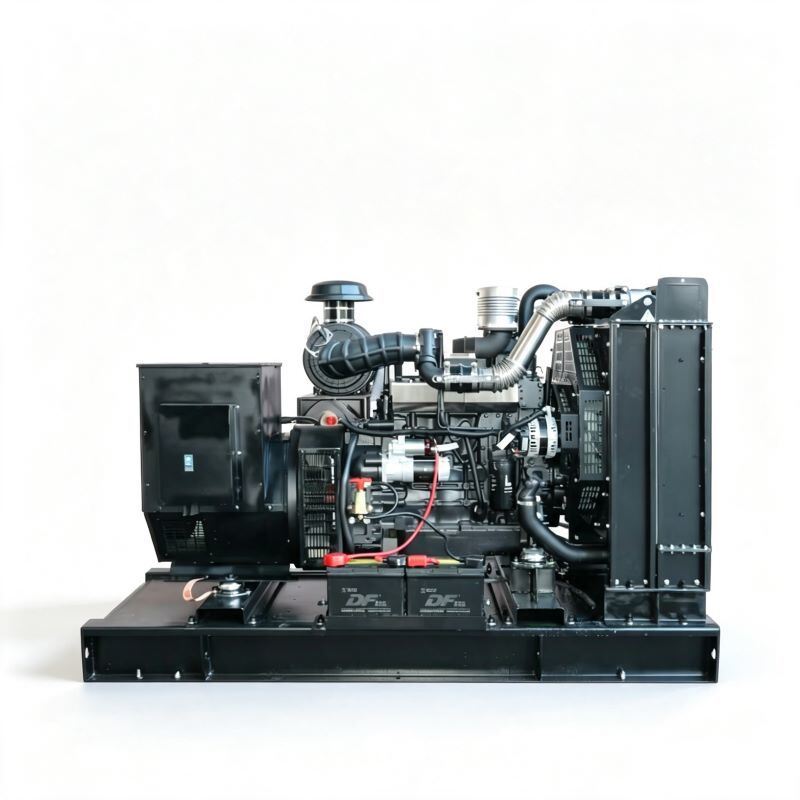

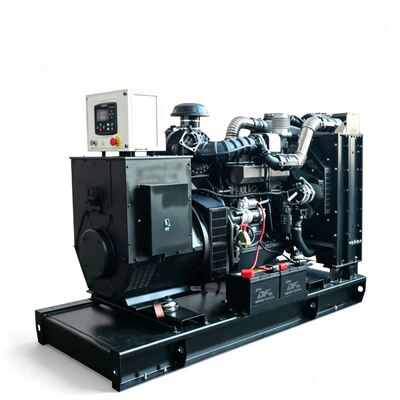

100kW Open Frame Standby Diesel Generator For Mining Machinery Backup Power

This 100kW (125kVA) open-frame standby diesel generator set is purpose-built to deliver reliable emergency backup power for mining machinery and mine-site auxiliary facilities. Equipped with heavy-duty water-cooled turbocharged intercooled diesel engine and high-efficiency 100% copper brushless alternator, the unit supports 230V rated voltage. Compliant with ISO 8528 and CE standards, it provides stable power for mining drive equipment, processing workshops, site lighting and control cabinets. ATS automatic transfer switch is offered as optional configuration. Soundproof canopy, mobile trailer chassis and remote monitoring system are available for different site conditions.

• Heavy-Duty Water-Cooled Industrial Diesel Engine: Four-stroke inline turbocharged intercooled diesel engine with abundant power reserve, excellent dust resistance and heavy-load adaptability for harsh mining environments. 24V DC electric start guarantees fast and dependable startup during mains power outage. Capable of stable operation under high-temperature, dusty and high-vibration mine-site conditions. Built-in base fuel tank supports long-hour continuous running; reserved port for external large-capacity fuel tank connection for extended blackout scenarios.
• 100% Copper Brushless Alternator: Class H insulation grade, IP23 protection grade, built-in AVR automatic voltage regulator with low voltage waveform distortion. Rated 230V output configurable for single-phase or multi-phase. Superior motor-starting capability to handle inductive mining machinery loads. Delivers clean and stable power, protecting mining motors, hydraulic control units and on-site electrical devices against voltage surges and fluctuations.
• Open-Frame Skid-Mounted Structure: Robust open-skid design provides excellent heat dissipation, which is essential for high-dust mining-site operation. Easy access for daily inspection, overhaul and component replacement in tough field conditions. Heavy-gauge channel-steel welded base fitted with high-density rubber vibration isolators to absorb external vibration from mining operations. Pre-drilled mounting holes for secure fixed installation inside mine workshop or generator room. Silent canopy and mobile trailer can be selected as alternatives.
• Intelligent Control & Comprehensive Safety Protection: Digital genset controller real-time monitors voltage, current, frequency, coolant temperature, lube oil pressure, engine speed and accumulated running hours. Complete protection functions: overspeed, high coolant temperature, low lube oil pressure, overvoltage, undervoltage, overload, short-circuit, with audible-visual alarm and automatic emergency shutdown. Optional ATS automatic transfer switch enables unattended auto-start and automatic load switching between utility power and generator. Remote cloud monitoring is optional for remote status check and fault notification.
• Pre-Assembly & Factory Full-Load Aging Test: Fully pre-assembled before delivery for convenient hoisting and transportation. Every unit passes strict full-load aging test simulating mine-site heavy-load working conditions, ensuring stable standby performance. Fast on-site commissioning after arrival.

• Open-frame layout with outstanding heat dissipation, well-suited for high-dust, harsh mining-site working environment.
• Configurable 230V rated voltage to match local mining machinery electrical requirements.
• Optional ATS realizes unattended automatic power switching, lowering manual-operation risks for mine facilities.
• Strong motor-starting performance, perfectly adapted for inductive loads of mining machinery and driving equipment.
• Complete multi-level safety protection reduces unexpected shutdown risk for mission-critical mine-site power supply.
• Strict full-load factory test ensures reliable performance under long-term intermittent standby duty.

Open-pit mines, underground mine auxiliary systems, mining machinery emergency backup power, mineral processing workshops, mine-site lighting and control cabinets and other mining-related sites requiring open-frame emergency standby power.
