20KVA 16KW Silent Type Diesel Generator with Large Fuel Tank for Backup Power

JFP 20KVA 16kW Silent Backup Diesel Generator with Large Fuel Tank for Shop, Office, Farm & Home Use

Product Overview

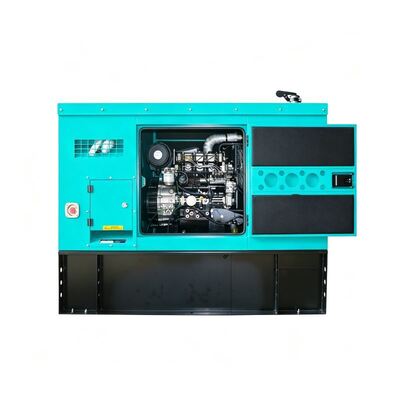

This 16kW (20kVA) silent diesel generator is a compact emergency backup power unit designed for residential, commercial and agricultural applications. Equipped with large‑capacity built‑in fuel tank, water‑cooled industrial diesel engine and all‑copper brushless alternator, enclosed inside noise‑reducing silent canopy. It provides stable standby power for home, retail shops, small offices and remote farm sites during utility power failure, complying with ISO 8528 generator standards.

Main Features

1. Reliable Water‑Cooled Diesel Engine

Four‑stroke water‑cooled diesel engine delivers steady output, low vibration and good fuel economy. 24V DC electric start for easy one‑touch startup. Strong adaptability for farm dusty environment and fluctuating ambient temperature. Large integrated fuel tank supports long continuous running time without frequent refueling.

2. All‑Copper Brushless Alternator

Class H insulation, IP23 protection grade, low voltage distortion. Standard 400/230V 3‑phase 4‑wire; single‑phase 230V optional, 50Hz (60Hz customizable). Delivers clean power to protect household appliances, office equipment, shop lighting and farm machinery from voltage surge damage.

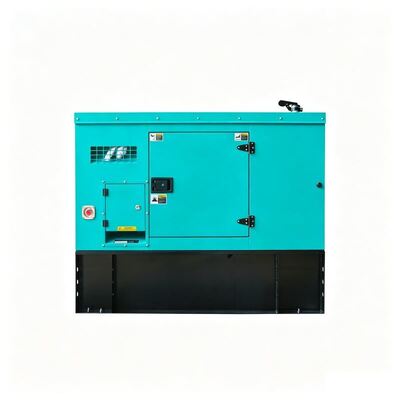

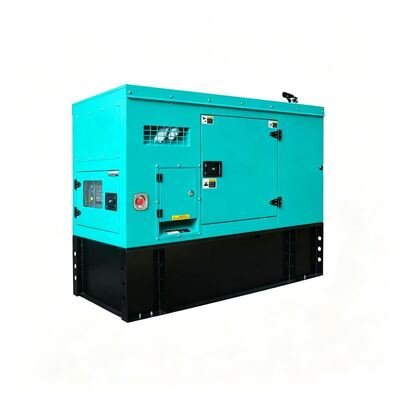

3. Silent Rain‑Proof Canopy

Fully sealed metal enclosure with multi‑layer sound‑absorbing cotton and built‑in silencer. Noise ≤72dB(A) @7 m. Rain‑proof and dust‑proof design allows outdoor placement at backyard, farm yard or behind retail store. Optimized air intake and exhaust duct prevents overheating during long‑time standby operation.

4. Large‑Capacity Built‑in Fuel Tank

Extended large fuel tank greatly prolongs continuous working hours, ideal for home, shop and farm where refueling access may be inconvenient. Reserved port for connecting external fuel tank for ultra‑long standby mission.

5. Intelligent Control & Safety Protection

Compact digital control panel displays voltage, current, frequency, coolant temperature, oil pressure and running hours. Protection functions: high water temperature, low oil pressure, overvoltage, undervoltage, overload, short‑circuit, with alarm and auto shutdown. Optional ATS automatic transfer switch for unattended auto‑start when mains power cuts off.

6. Compact Integrated Base

Channel steel base with rubber shock absorbers to reduce vibration. Compact overall size, easy lifting and moving. Small footprint suitable for limited space of home backyard, shop rear area and farm out‑building.

Technical Specifications

Competitive Advantages

1. Large built‑in fuel tank for long‑hour backup operation, less frequent refueling for home, shop and farm usage.
2. Silent enclosure reduces noise disturbance for residential and commercial surroundings.
3. Compact size, space‑saving for backyard, storehouse and farm out‑building installation.
4. Dual‑voltage optional for home single‑phase and small three‑phase farm equipment.
5. Simple operation and full safety protection, friendly for non‑professional users.
6. Cost‑effective emergency backup solution for small‑scale domestic, retail and agricultural scenarios.

Application Scenarios

Family home backup power, retail shops, small offices, remote farms, livestock breeding sites, small workshops, country houses and other places requiring compact silent emergency standby power.
