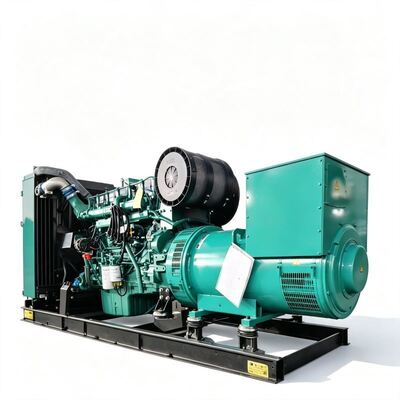

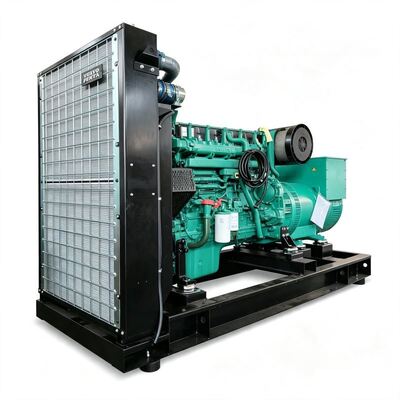

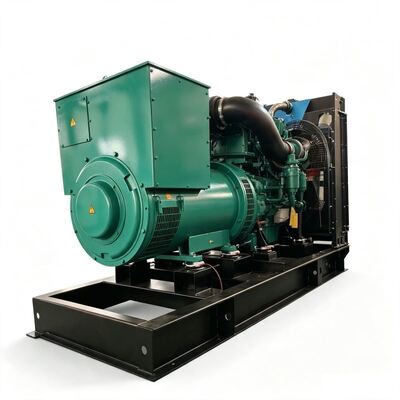

450kW Volvo Penta Backup Diesel Generator with Auto ATS for Backup Power Plant

This 450kW (562.5kVA) open-frame diesel generator set is powered by genuine Sweden-imported Volvo Penta industrial diesel engine, specially designed for large-scale backup power plant projects. Equipped with high-performance all-copper brushless alternator, auto-start control system and optional ATS automatic transfer switch. Multiple voltage options including 110V, 400/230V, 480/277V are supported, complying with ISO 8528 international genset standards. Delivers stable, durable emergency standby power for industrial facilities, commercial complexes, hospitals, data centers and centralized backup power stations. Silent canopy, container and mobile trailer configurations are available as optional upgrades.

• Genuine Sweden Volvo Penta Water-Cooled Diesel Engine: Adopts original Volvo Penta TAD1642GE in-line 6-cylinder, 4-stroke turbocharged intercooled diesel engine imported from Sweden, 16.12L displacement. Electronic fuel injection system ensures excellent fuel economy, fast load response and long service life. 24V DC electric starting system for reliable auto-start during mains power failure. Global Volvo Penta spare-parts network supports convenient after-sales service worldwide, suitable for continuous heavy-duty backup power-plant operation.
• Multi-Voltage All-Copper Brushless Alternator: Class H insulation grade, IP23 protection grade, built-in AVR automatic voltage regulator, low voltage waveform distortion. Customizable output voltages: 110V, 220V, 400/230V, 480/277V, supporting single-phase or three-phase 4-wire, 50Hz / 60Hz optional. Provides clean stable power to protect critical loads of backup power plant from voltage fluctuation damage.
• Open-Frame Skid-Mounted Structure: Standard open-skid design with outstanding heat-dissipation performance, easy access for inspection, maintenance and component replacement. Heavy-duty channel-steel welded base fitted with high-density rubber vibration isolators to absorb engine vibration. Reserved mounting holes for fixed installation inside power-plant machine room. Compact layout saves installation space for centralized power station arrangement.
• Auto-Start Control & Optional ATS Automatic Transfer Switch: Advanced digital genset controller supports manual / auto operation modes. When grid power is lost, the unit automatically starts within 5-10 seconds. Matching ATS cabinet realizes fully unattended power switching: automatically switch load back to municipal power supply and shut down generator once utility power restores. Multi-unit parallel function and remote cloud monitoring are optional for large backup power plant group operation.
• Comprehensive Multi-Level Safety Protection: Real-time monitoring of voltage, current, frequency, coolant temperature, lube oil pressure, engine speed and accumulated running hours. Full protection functions: overspeed, high coolant temperature, low lube oil pressure, overvoltage, undervoltage, overload, short-circuit, with audible-visual alarm and automatic emergency shutdown, effectively avoid unit damage for backup power station continuous operation.

• Original Swedish Volvo Penta power unit, mature reliable performance, global spare-parts supply support for overseas backup-power-plant projects.
• Wide voltage customization including 110V, satisfies diversified regional grid-standard requirements for global export.
• Open-frame structure features good heat dissipation and convenient maintenance, ideal for indoor fixed backup-power-station machine-room deployment.
• Support ATS auto-switch and multi-generator parallel connection, perfect for large-capacity centralized backup power plant construction.
• Electronic fuel-injection engine delivers good fuel efficiency, reduces long-term operating cost for standby-mode application.
• Strict factory full-load test before delivery, stable output under variable-load working conditions for critical-load scenarios.

Centralized backup power plants, large manufacturing factories, data centers, hospital clusters, commercial complexes, mining zones, telecom hub stations and other key facilities requiring high-reliability emergency standby power supply.
