CCS Certified 800KVA Cummins Marine Diesel Generator Set For Ship Emergency Power

Brand Name:	JFP
Model Number:	JFP-640GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Application:

Ship Emergency Power

Engine:

Cummins

Type:

Open Type

Phase:

3 Phase 4 Wire

Warranty:

1 Year

Prime Power:

640kW / 800kVA

Standby Power:

704kW / 880kVA

Engine Model:

Cummins Marine KTA38-DM

Frequency:

50Hz (60Hz Customizable)

Rated Voltage:

400V/230V 3-Phase 4-Wire (440V For 60Hz)

Rated Current:

1155A

Power Factor:

0.8 Lagging

Cooling System:

Heat-exchanger With Seawater Pump (marine Cooling)

Packaging Details:

Plyfilm or plywood

Highlight:

CCS Cummins Marine Diesel Generator

800KVA Cummins Marine Diesel Generator

800KVA Marine Diesel Generator Set

Product Description

JFP CCS Certified 800KVA 640kW Cummins Marine Diesel Genset for Boat & Vessel

This 800kVA (640kW) CCS-certified marine diesel generator set is powered by genuine Cummins marine-grade diesel engine, specially designed as main or emergency auxiliary power for various vessels. Fully inspected and approved by China Classification Society (CCS), it adopts seawater-cooled heat-exchanger cooling system, anti-salt-fog corrosion treatment and marine-standard control system. It complies with marine IMO safety regulations, delivering stable reliable power for cargo ships, fishing boats, work vessels, offshore platforms and yachts. Other classification society certificates such as BV, ABS, DNV are optional upon request.

Main Features

Genuine Cummins Marine-Spec Diesel Engine: Marine-duty 4-stroke V12 turbocharged intercooled diesel engine. Optimized for continuous marine heavy-load operation, excellent anti-vibration performance for ship swaying environment. Equipped with marine seawater pump, heat exchanger cooling system, 24V DC electric starting system. Good fuel economy, global Cummins spare-parts support network worldwide.
Marine-Grade Full-Copper Brushless Alternator: Class H insulation, IP23 protection grade, anti-salt-fog special winding treatment, built-in AVR automatic voltage regulator. Low voltage waveform distortion, stable three-phase output, protects ship-borne navigation equipment, lighting, communication and refrigeration facilities from voltage fluctuation damage.
CCS Marine Standard Configuration: Complete CCS ship-survey supporting documents and factory marine load test report. Whole unit adopts salt-spray resistant anti-corrosion painting, damp-heat & mould-proof treatment suitable for high-humidity salty marine atmosphere. Heat-exchanger seawater cooling system avoids seawater direct corrosion to engine core components. Space heater fitted to prevent condensation inside alternator while unit stands by.
Marine Intelligent Control & Multi-Safety Protection: Marine-purpose control panel real-time monitors engine speed, coolant temperature, lube oil pressure, generator voltage, current, frequency and running hours. Protection functions: low lube oil pressure, high cooling-water temperature, overspeed, over-voltage, under-voltage, overload, short-circuit, with audible-visual alarm and emergency shutdown. Support manual / auto start; parallel function for multi-generator operation optional.
Heavy-Duty Marine Base Frame: Thick marine-grade steel skid base with anti-vibration rubber isolators to absorb vibration from hull shaking. Reserved mounting holes for onboard fixed installation; all wiring, pipelines follow marine electrical standards.

Technical Specifications

Item	Parameter
Prime Power	640kW / 800kVA
Standby Power	704kW / 880kVA
Engine Brand & Model	Cummins Marine KTA38-DM
Frequency	50Hz (60Hz customizable)
Rated Voltage	400V/230V 3-Phase 4-Wire (440V for 60Hz)
Rated Current	1155A
Power Factor	0.8 lagging
Cooling System	Heat-exchanger with seawater pump (marine cooling)
Starting Mode	24V DC Electric Start
Certification	CCS China Classification Society certified; BV / ABS optional
Alternator	100% copper brushless, H-class insulation, IP23, anti-salt-fog
Structure	Marine open-skid type
Fuel Consumption @75% Load	~136 L/h
Optional Accessories	Parallel cabinet, air start system, remote monitoring system

Competitive Advantages

Complete official CCS ship-certified documentation, meets ship registry, port inspection and marine insurance requirements.
Special seawater heat-exchanger cooling system, effectively resist seawater corrosion, extend service life under salt-fog marine environment.
Cummins marine power unit with global after-sales and spare-parts network, convenient for overseas vessel maintenance.
Anti-condensation space heater, damp-heat and mould-proof processing, adapts long-term high-humidity ocean working conditions.
Strong anti-vibration design, stable output under vessel rolling & swaying navigation status.
Factory full-load marine simulation test before delivery, ready for direct onboard installation.

Application Scenarios

Cargo vessels, fishing ships, engineering work boats, inland waterway vessels, offshore auxiliary platforms, yachts and other marine crafts for main power or emergency backup power supply.

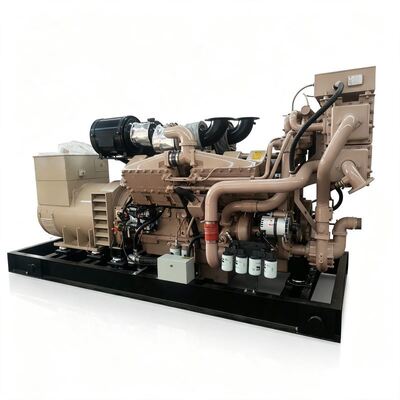

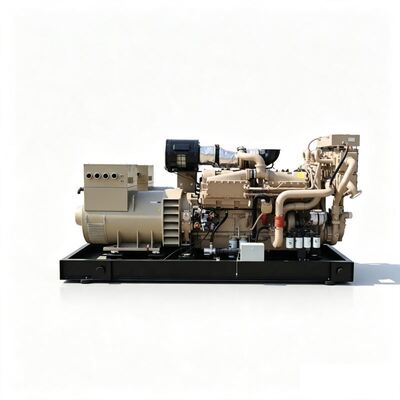

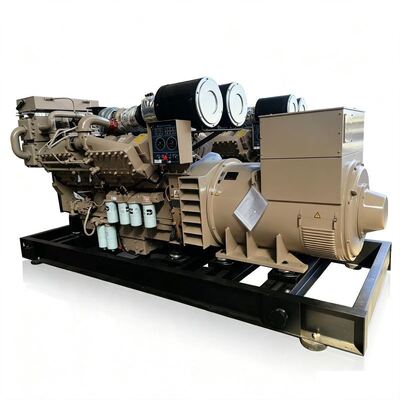

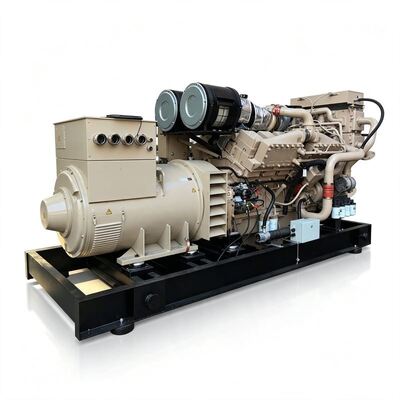

Product Images

CCS Certified 800KVA Cummins Marine Diesel Generator Set For Ship Emergency Power
