Trailer Diesel Generator

160kW 200kVA Silent Mobile Trailer Diesel Generator Set For Outdoor Construction

All Category

Open Type Diesel Generator Set

Diesel Generator with ATS

Ms. Alice

sales@jfpower-genset.com

+86-13305162218

Chat Now

160kW 200kVA Silent Mobile Trailer Diesel Generator Set For Outdoor Construction

Brand Name:	JFP
Model Number:	JFP-160GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Warranty:

1 Year

Phase:

3 Phase 4 Wire

Type:

Mobile Trailer Silent

Color:

Customized Colors

Engine:

Shangchai

Prime Power:

160kW / 200kVA

Standby Power:

176kW / 220kVA

Rated Voltage:

400/230V

Rated Current:

289A

Frequency:

50Hz

Rotating Speed:

1500rpm

Power Factor:

0.8 Lagging

Fuel Consumption:

~34 L/h @75% Load

Packaging Details:

Plyfilm or plywood

Highlight:

Mobile Trailer Diesel Generator

160kW Trailer Diesel Generator

200kVA Trailer Generator Set

Product Description

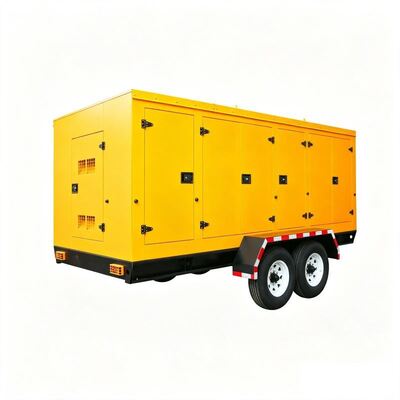

JFP 160kW (200kVA) Shangchai Mobile Trailer Diesel Generator Set

This 160kW (200kVA) trailer-mounted diesel generator set is driven by genuine Shangchai heavy-duty industrial diesel engine, matched with 100% copper brushless self-excited alternator, manufactured strictly following ISO 8528‑1 international genset standard.

Product Overview

Equipped with reinforced heavy-duty two-wheel mobile trailer chassis, the unit features convenient towing and flexible site transfer, widely used in municipal engineering, highway & bridge construction, open-pit mining, emergency rescue and all outdoor worksites without fixed generator room.

Main Features

Original Shangchai inline 6-cylinder 4-stroke water-cooled diesel engine, turbocharged intercooled with electronic governor, abundant power reserve, low fuel consumption and stable performance under high-dust, high-temperature harsh outdoor conditions
All-copper brushless synchronous alternator, Class H insulation, IP23 protection grade, low voltage waveform distortion, delivering clean and stable power to support construction machinery and precision electronic equipment
Heavy-duty dual-wheel mobile trailer: standard traction drawbar for vehicle towing, leaf spring shock absorption, hand brake + fixed parking brake, four adjustable leveling support outriggers, mud guards and running signal lights; integrated rainproof canopy optional
Deepsea intelligent digital controller, real-time display of voltage, current, frequency, coolant temperature, lube oil pressure, rotation speed and total accumulated running hours
Complete full-range safety protection: overspeed, high water temperature, low oil pressure, overvoltage, undervoltage, overload, short-circuit protection with audible & visual alarm and automatic emergency shutdown
Large-capacity built-in base fuel tank for long-hour continuous operation; thickened high-density rubber shock absorbers cut vibration transmission between power unit and trailer frame
Optional configurations: exhaust silencer, ATS automatic transfer switch, remote cloud monitoring module, silent soundproof enclosure

Core Functions

Continuous prime power supply for heavy field construction equipment
Mobile emergency backup power when mains power cuts off at outdoor sites
Real-time monitoring of all operating parameters and automatic fault shutdown protection
Highway legal towing transportation, stable horizontal parking by adjusting support legs
Unattended auto-start function when equipped with optional ATS cabinet

Technical Specifications

Prime Power	160kW / 200kVA
Standby Power	176kW / 220kVA
Rated Voltage	400/230V, 3 Phase 4 Wire
Rated Current	289A
Frequency / Rotating Speed	50Hz / 1500rpm
Power Factor	0.8 lagging
Engine	Shangchai industrial diesel engine, turbo intercooled, electronic governing
Alternator	Brushless self-excited, full copper winding, Class H insulation, IP23
Cooling System	Oversized large water radiator cooling
Fuel Consumption @75% Load	~34 L/h
Trailer Structure	Heavy-duty two-wheel mobile trailer, traction arm, parking brake, support outriggers, optional rain shelter
Controller	Deepsea intelligent control module

Competitive Advantages

Mature Shangchai high-power engine platform, complete global spare parts supply network, easy overseas after-sales maintenance and outstanding cost performance
Thickened reinforced trailer frame with strong load-bearing capacity, stable towing performance, well-adapted to bumpy mountain roads and construction site roads
Optional integrated rainproof canopy with dustproof and splash-proof performance, realizing all-weather open-air outdoor operation
Multi-layer vibration reduction design effectively reduces component abrasion during frequent transportation and relocation
Rich expandable optional accessories to meet diversified power demands of equipment rental, engineering construction and disaster rescue industries
Complete full-load aging test before factory delivery, stable and reliable for long-hour continuous heavy-load operation

Application Scope

Urban municipal road construction, bridge engineering, open-pit mining, temporary construction camps, flood disaster emergency rescue, field communication base stations, outdoor large-scale events and all scenarios requiring mobile temporary power supply.
