150kW Cummins-Leroy Somer Mobile Trailer Diesel Generator Set With Deepsea Controller

Brand Name:	JFP
Model Number:	JFP-150GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Phase:

3 Phase 4 Wire

Warranty:

1 Year

Type:

Mobile Trailer Silent

Color:

Customized Colors

Controller:

Deepsea

Prime Power:

150kW / 187.5kVA

Standby Power:

165kW / 206.25kVA

Rated Voltage:

400/230V, 3 Phase 4 Wire

Rated Current:

271A

Frequency / Speed:

50Hz / 1500rpm

Fuel Consumption:

~32 L/h @75% Load

Packaging Details:

Plyfilm or plywood

Highlight:

Mobile Trailer Diesel Generator

150kW Trailer Diesel Generator

Product Description

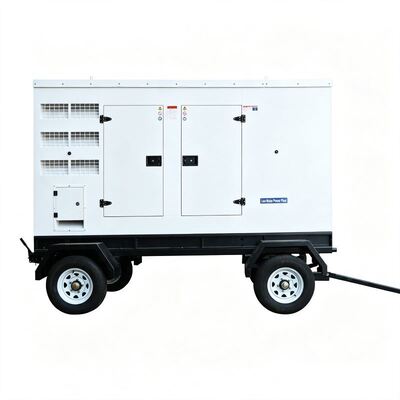

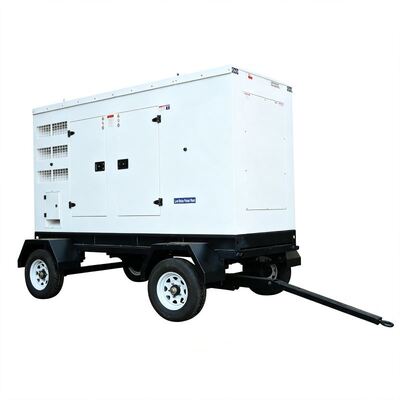

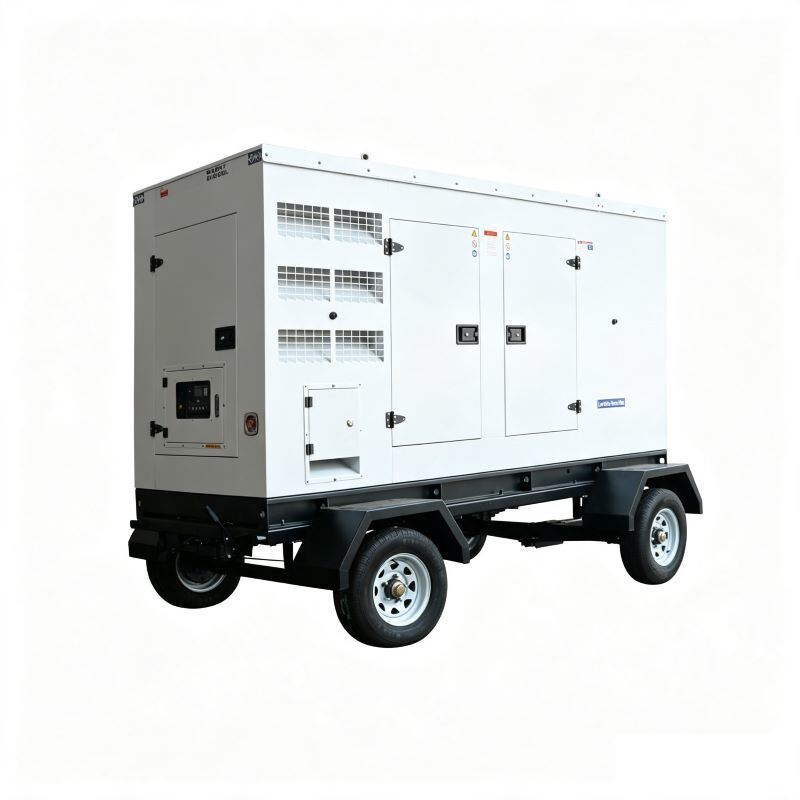

JFP 150kW Cummins-Leroy Somer Mobile Trailer Diesel Generator Set

This 150kW (187.5kVA) trailer-mounted diesel generator set combines genuine Cummins industrial diesel engine with Leroy Somer brushless synchronous alternator, manufactured in compliance with ISO 8528-1 international standards. The heavy-duty reinforced two-wheel mobile trailer chassis ensures easy transportation, making it ideal for municipal engineering, road and bridge construction, open-pit mining, disaster emergency rescue, and outdoor projects without fixed generator facilities.

Main Features

Original Cummins inline six-cylinder 4-stroke water-cooled diesel engine with turbocharged intercooling and electronic fuel injection governing
Leroy Somer all-copper brushless alternator with Class H insulation and IP23 protection grade
Heavy-duty mobile dual-wheel trailer with standard traction drawbar, leaf spring shock absorption, and multiple braking systems
Deepsea intelligent digital controller for real-time monitoring of operational parameters
Comprehensive multi-layer safety protection system with automatic emergency shutdown
Large-capacity built-in base fuel tank for extended continuous operation
Optional accessories including exhaust silencer, ATS automatic transfer switch, and remote cloud monitoring

Core Functions

Continuous prime power supply for heavy outdoor construction equipment
Mobile emergency standby power for construction sites during mains power outages
Real-time tracking of operational parameters with automatic fault shutdown
Highway-legal towing transport with stable horizontal parking capability
Unattended auto-start function when paired with optional ATS cabinet

Technical Specifications

Item	Parameter
Prime Power	150kW / 187.5kVA
Standby Power	165kW / 206.25kVA
Rated Voltage	400/230V, 3 Phase 4 Wire
Rated Current	271A
Frequency / Rotating Speed	50Hz / 1500rpm
Power Factor	0.8 lagging
Engine	Cummins industrial diesel engine, turbo intercooled, electronic governor
Alternator	Leroy Somer brushless self-excited, full copper winding, Class H insulation, IP23
Cooling System	Oversized water radiator cooling
Fuel Consumption @75% Load	~32 L/h
Trailer Structure	Heavy-duty two-wheel mobile trailer, traction arm, parking brake, support outriggers, optional rain cover
Controller	Deepsea intelligent control module

Competitive Advantages

World-famous brand combination of Cummins engine and Leroy Somer alternator with global spare parts network
Reinforced trailer frame with strong load-bearing capacity and stable towing performance
Optional integrated rainproof canopy for all-weather outdoor operation
Multi-stage vibration reduction structure for reduced parts wear during transport
Diversified expandable configurations for various industry applications
Comprehensive factory testing for reliable long-hour heavy-load operation

Application Scope

Municipal road maintenance, bridge engineering, open-pit mining, temporary construction camps, flood disaster emergency rescue, field communication base stations, outdoor large-scale activities, and all scenarios requiring mobile temporary power supply.
