50kW 62.5kVA Cummins Mobile Trailer Diesel Genset With Leroy Somer Alternator

Brand Name:	JFP
Model Number:	JFP-50GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Phase:

3 Phase 4 Wire

Warranty:

1 Year

Controller:

Deepsea

Engine:

Cummins

Type:

Mobile Trailer Silent

Color:

Customized Colors

Prime Power:

50kW / 62.5kVA

Standby Power:

55kW / 68.75kVA

Rated Voltage:

400/230V, 3 Phase 4 Wire

Rated Current:

90A

Frequency:

50Hz / 1500rpm

Power Factor:

0.8 Lagging

Fuel Consumption:

~10.7 L/h @75% Load

Cooling Mode:

Standard Large Water Radiator Cooling

Packaging Details:

Plyfilm or plywood

Highlight:

Mobile Trailer Diesel Genset

62.5kVA Mobile Diesel Genset

50kW Cummins Diesel Genset

Product Description

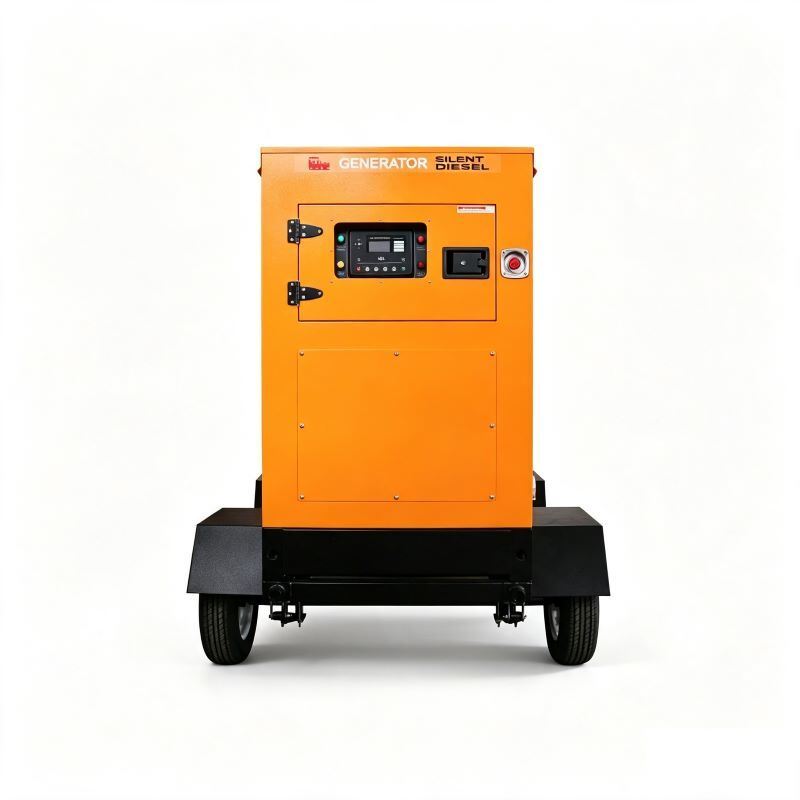

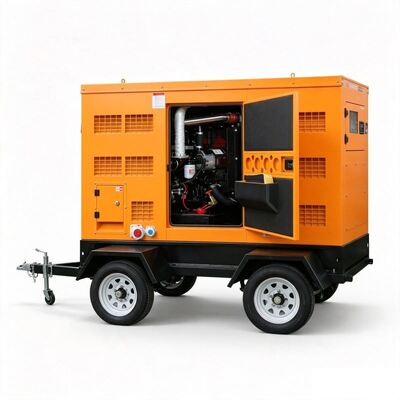

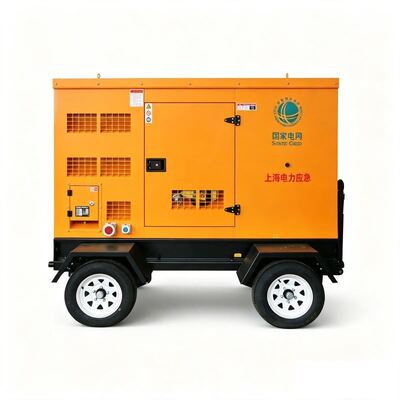

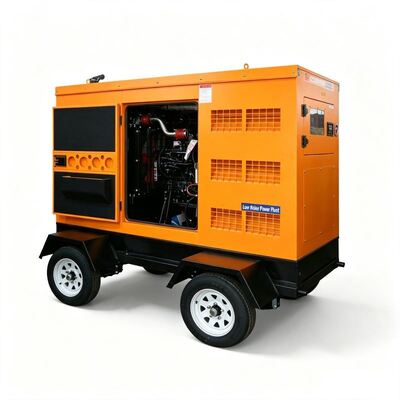

JFP 50kW (62.5kVA) Cummins Mobile Trailer Diesel Genset With Leroy Somer Alternator

This 50kW (62.5kVA) trailer-mounted diesel generator set is assembled with original Cummins industrial diesel engine and Leroy Somer brushless synchronous alternator, fully produced per ISO 8528‑1 international generator standard. Fitted with heavy-duty two-wheel mobile trailer chassis, the unit is convenient for vehicle towing and site transfer, ideal for municipal construction, field mining, engineering rescue, outdoor temporary projects and sites without fixed generator room.

Main Features

Genuine Cummins 4-stroke water-cooled diesel engine, turbocharged intercooled, electronic fuel injection control, stable power output, low failure rate, excellent adaptability to high dust, high temperature outdoor harsh environment
Leroy Somer all-copper brushless alternator, Class H insulation, IP23 protection grade, ultra-low voltage waveform distortion, pure stable power output, compatible with precision instruments and construction equipment
Reinforced mobile dual-wheel trailer: traction drawbar for towing, leaf spring shock absorption, hand brake + parking brake, four adjustable support outriggers, mud guards and signal running lights as standard; integrated rainproof canopy optional
Deepsea intelligent digital controller, real-time display of voltage, current, frequency, coolant temperature, lubricating oil pressure, rotating speed and cumulative running hours
Complete multi-layer safety protection: overspeed, high water temperature, low oil pressure, overvoltage, undervoltage, overload, short-circuit protection with sound-light alarm and automatic emergency shutdown
Large-capacity built-in base fuel tank for prolonged continuous operation; thickened rubber shock absorbers isolate vibration between power unit and trailer frame
Optional configurations: silencer, ATS automatic transfer switch, remote cloud monitoring module, silent cover

Core Functions

Continuous prime power supply for field construction machinery and outdoor loads
Mobile emergency standby power supply when grid power cuts off
Real-time monitoring of all operating parameters and automatic shutdown upon faults
Highway legal towing transport, stable leveling parking via support legs
Unattended automatic startup function when equipped with optional ATS cabinet

Technical Specifications

Item	Parameter
Prime Power	50kW / 62.5kVA
Standby Power	55kW / 68.75kVA
Rated Voltage	400/230V, 3 Phase 4 Wire
Rated Current	90A
Frequency / Rotating Speed	50Hz / 1500rpm
Power Factor	0.8 lagging
Engine	Cummins industrial diesel engine, turbo intercooled, electronic governor
Alternator	Leroy Somer brushless self-excited, full copper winding, Class H insulation, IP23
Cooling Mode	Standard large water radiator cooling
Fuel Consumption @75% Load	~10.7 L/h
Trailer Structure	Heavy-duty two-wheel mobile trailer, traction arm, parking brake, support outriggers, optional rain shelter
Controller	Deepsea intelligent control module

Competitive Advantages

World-famous Cummins engine + Leroy Somer alternator matching, globally recognized brand, complete overseas spare parts supply network, low after-sales maintenance difficulty
Thickened reinforced trailer frame, strong load-bearing capacity, stable towing performance, suitable for bumpy construction and mountain field roads
Optional integrated rain canopy for dustproof and splash-proof, allowing long-term open-air outdoor operation
Multi-stage vibration reduction design reduces component abrasion during frequent moving and relocation
Diversified optional accessories to meet rental, engineering, emergency rescue multi-industry power demand
Full load aging test before factory delivery, stable and reliable for long-time heavy-load continuous operation

Application Scope

Municipal road construction, bridge engineering, open-pit mining, temporary construction sites, flood disaster emergency rescue, field engineering camps, outdoor large-scale activities, field communication stations and all scenarios requiring mobile temporary power supply.
