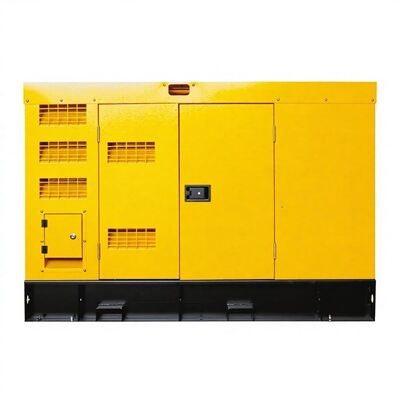

Super Silent Diesel Generator With ATS

This 60kW /75kVA super silent diesel generator set is equipped with heavy‑duty water‑cooled industrial diesel engine and 100% copper brushless alternator. The compact sound‑absorbing silent canopy greatly reduces running noise, rain‑proof and dust‑proof for outdoor installation. Fitted with ATS auto‑transfer switch for automatic power switching between mains and generator power, realizing unattended emergency power supply. Widely applied for hotels, hospitals, shopping malls, office buildings, communication base stations and residential complexes where low‑noise operation is required. ISO & CE certificates are available for global import and project tender.

• 60kW prime power /75kVA, standby power 66kW /82.5kVA, industrial 4‑stroke turbocharged intercooled diesel engine, stable continuous heavy‑load performance

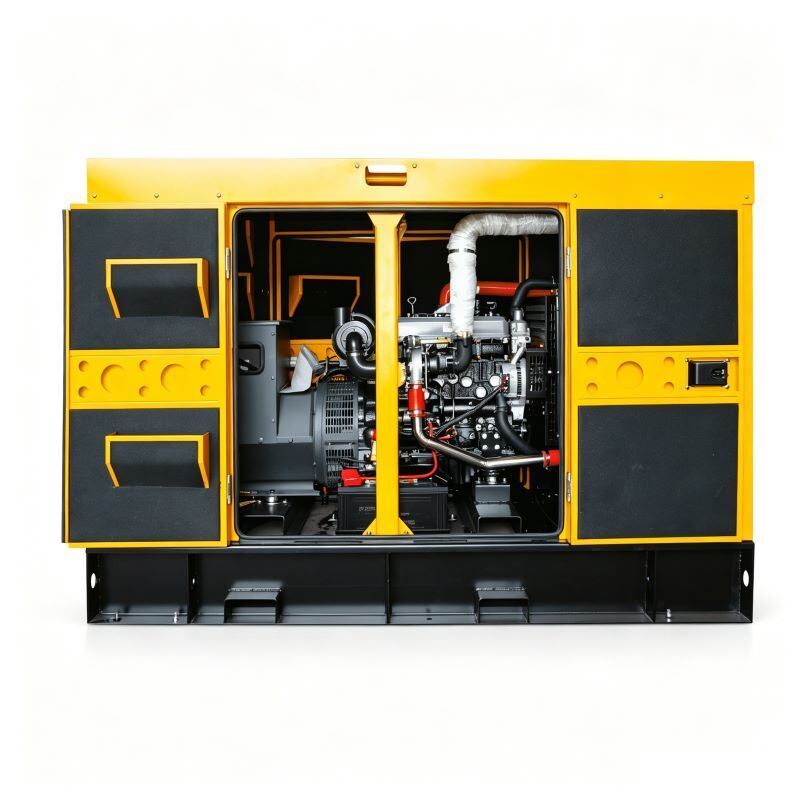

• Super silent sound‑proof canopy, multi‑layer sound‑absorbing cotton design, rain‑proof & dust‑proof, suitable for outdoor working environment
• 100% copper brushless alternator, H‑class insulation grade, IP23 protection grade, low temperature‑rise, high generating efficiency and long service‑life under fluctuating loads
• 3‑phase 4‑wire output, 50Hz / 60Hz optional, multiple voltage options: 380V,400V,415V,480V for global industrial standards
• ATS auto‑transfer switch, auto‑start upon mains failure, auto‑stop when grid power recovers, no manual operation needed
• Intelligent genset controller, real‑time monitoring voltage, current, frequency, oil pressure, coolant temperature, exhaust temperature and cumulative running hours
• Full‑range multi‑protection: over‑voltage, under‑voltage, over‑current, short‑circuit, overspeed, low oil pressure, high‑temperature alarm & automatic shutdown
• 24V DC reliable electric starting system; large integrated base fuel tank supports long‑hour continuous operation
• Heavy‑duty anti‑vibration rubber mounts to minimize vibration transmission
• Optional open‑frame version, mobile trailer, remote monitoring module, parallel cabinet for multi‑genset joint power supply
• Certificates: ISO, CE optional for customs clearance and project bidding

• Super silent canopy effectively lowers noise level, rain‑proof dust‑proof for outdoor placement without extra housing
• 100% copper winding alternator delivers stable voltage output, good adaptability for various commercial and industrial loads
• ATS auto‑transfer switch achieves fully automatic power switch, greatly reduces on‑site manual intervention
• Heavy‑duty industrial engine ensures reliable performance for long‑time standby emergency running
• Complete multi‑protection system avoids unit damage caused by abnormal working conditions
• Support international standard certificates, meet global import customs‑clearance and tender requirements

• Hospitals
• Hotels
• Shopping malls
• Office complexes
• Communication base stations
• Residential communities
• Small factories
• Emergency backup power for critical electrical equipment requiring low‑noise operation
