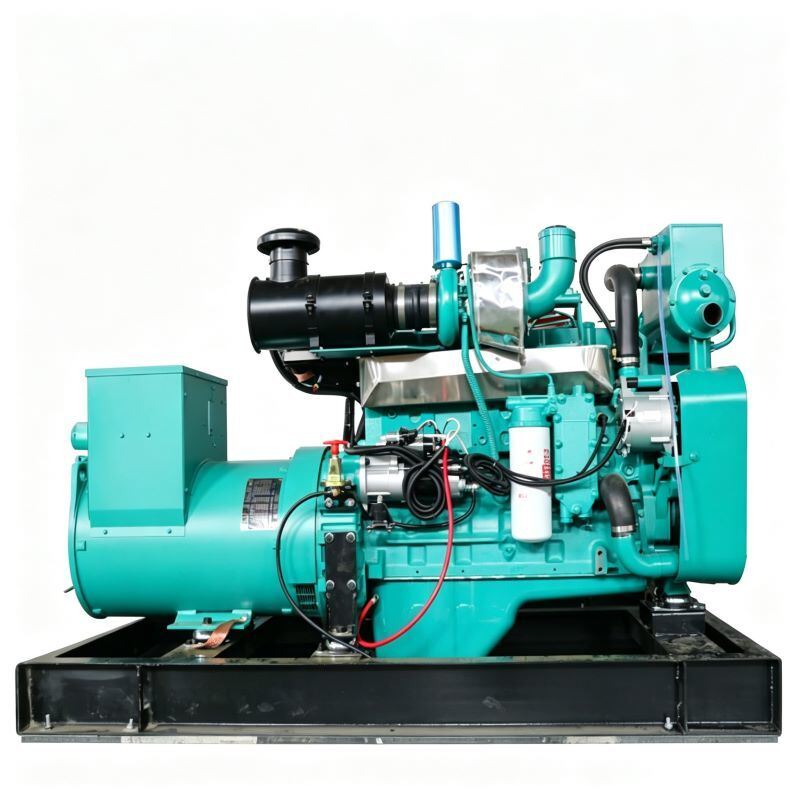

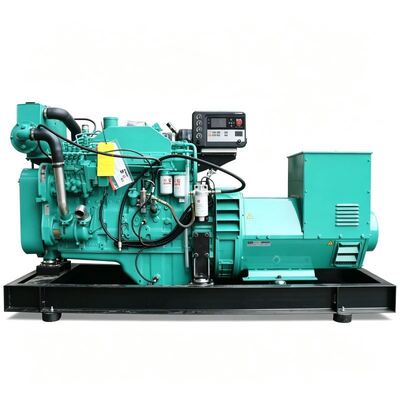

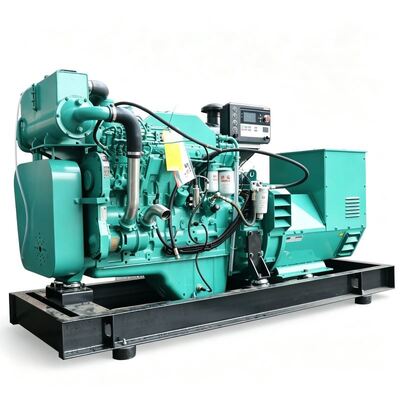

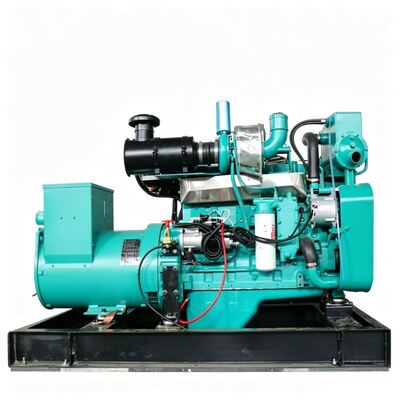

100kW Marine Diesel Genset

This generator set works as main auxiliary power or emergency backup power for fishing boats, cargo vessels, working boats and ferries, supplying stable power for navigation instruments, communication devices, lighting and all kinds of onboard electrical loads. CCS marine classification certificate is optional for ship inspection and vessel registration.

• 100kW prime power /125kVA, powered by original Cummins 6CT8.3-GM115 marine engine, 8.3L displacement, turbocharged design, stable performance under vessel rolling and pitching environment
• Complete marine seawater cooling assembly: marine heat-exchanger + seawater pump, closed fresh-water circulation cooled by seawater, perfect for ship engine-room application
• 100% copper brushless marine alternator, H-class insulation grade, anti-condensation tropical treatment, IP23 protection against salt-fog and cabin humidity
• 3-phase 4-wire output, standard 400V/230V, other marine-grade voltages optional
• Marine-specific control panel, real-time monitor voltage, current, frequency, oil pressure, coolant temperature, seawater flow status and running hours
• Full marine-grade protection: over-voltage, under-voltage, over-current, short-circuit, low oil pressure, high water temperature, seawater flow failure alarm & auto shutdown
• 24V DC reliable electric starting system; optional auto-start, ATS auto-transfer switch and remote monitoring function
• Heavy-duty marine anti-vibration rubber mounts to buffer hull vibration during sailing
• Salt-fog anti-corrosion painting for corrosive marine atmosphere
• Optional certificates: CCS, BV, ABS for ship survey, bidding and customs clearance
• Optional marine silencer, parallel cabinet for multi-genset combined power supply

• Genuine Cummins 6CT8.3-GM115 marine engine, proven marine-going reliability, global spare-parts and after-sales service network
• Professional seawater cooling system with heat-exchanger and seawater pump, stable heat dissipation for long-time voyage operation
• 100% copper marine alternator resists salt-fog and cabin humidity, high efficiency and long service-life under variable marine loads
• Full marine-oriented modification: anti-corrosion coating, vibration-absorbing mounts, seawater flow monitoring, adapt to complex ship sailing environment
• Support marine classification certificates, satisfy official ship inspection, registration and offshore tender requirements
• Compact open-frame layout, easy installation and maintenance inside limited ship engine-room space
