80kW Backup Diesel Generator

This 80kW (100kVA) industrial standby diesel generator set is powered by genuine Cummins 6BT5.9‑G2 water‑cooled diesel engine, matched with high‑efficiency 100% copper brushless three‑phase alternator. Complying with ISO 8528 and CE standards, this genset delivers stable emergency backup power for hotels, camping resorts, commercial buildings and small industrial sites. It ensures continuous power supply during mains power failure. Open‑frame, soundproof silent canopy, mobile trailer and ATS automatic transfer switch are available as optional configurations.

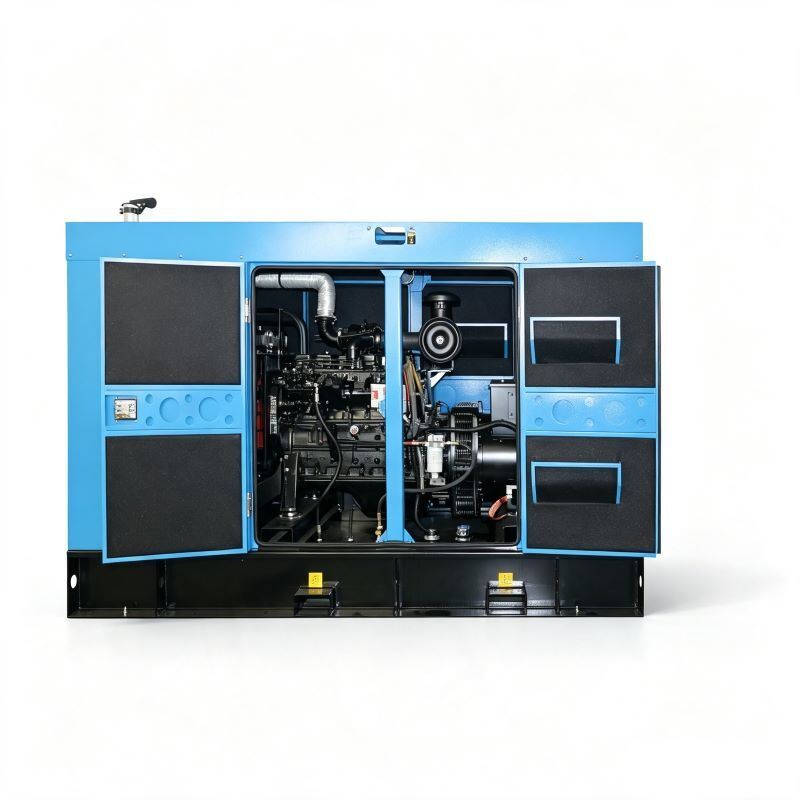

• Genuine Cummins 6BT5.9‑G2 Diesel Engine: Original Cummins 6BT5.9‑G2 inline 6‑cylinder water‑cooled turbocharged intercooled diesel engine. Features compact structure, stable running performance, good fuel economy and long service life. 24V DC electric starting system provides fast and reliable startup for emergency power‑loss scenarios.
• 3‑Phase Full‑Copper Brushless Alternator: Class H insulation grade, IP23 protection grade, built‑in AVR automatic voltage regulator, low voltage waveform distortion. Standard 400/230V 3‑phase 4‑wire 50Hz output; 60Hz 480/277V is customizable.

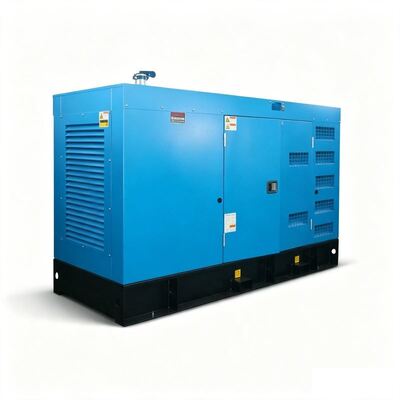

• Multiple Optional Structures: Open‑frame skid type for excellent heat dissipation; soundproof silent canopy for weather‑proof, low‑noise design; mobile trailer type for flexible temporary power supply.
• Intelligent Control & Comprehensive Safety Protection: Digital genset controller monitors voltage, current, frequency, coolant temperature, lube oil pressure, engine speed and accumulated running hours. Full protection functions with audible‑visual alarm and automatic emergency shutdown.
• Pre‑Assembled Unit & Factory Full‑Load Aging Test: Whole unit pre‑assembled before delivery for easy hoisting, transportation and fast on‑site commissioning. Each unit passes strict full‑load aging test.

• Adopts authentic Cummins 6BT5.9‑G2 well‑known engine, mature and reliable model with global spare‑parts support
• Multiple structure selections, silent canopy meets noise‑sensitive requirements
• Stable low‑distortion power output suitable for commercial loads
• Complete multi‑level safety protection reduces unexpected shutdown risk
• Optional ATS achieves unattended automatic power switching
• Compact overall layout for convenient transportation and quick commissioning
