| Brand Name: | JFP |
| Model Number: | JFP-16GF |
| MOQ: | 1 |
| Payment Terms: | L/C,T/T |

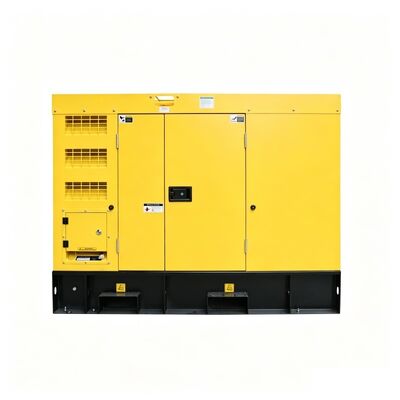

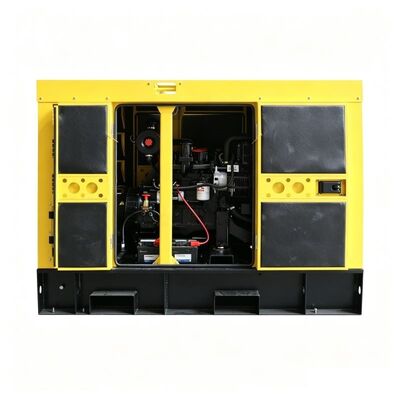

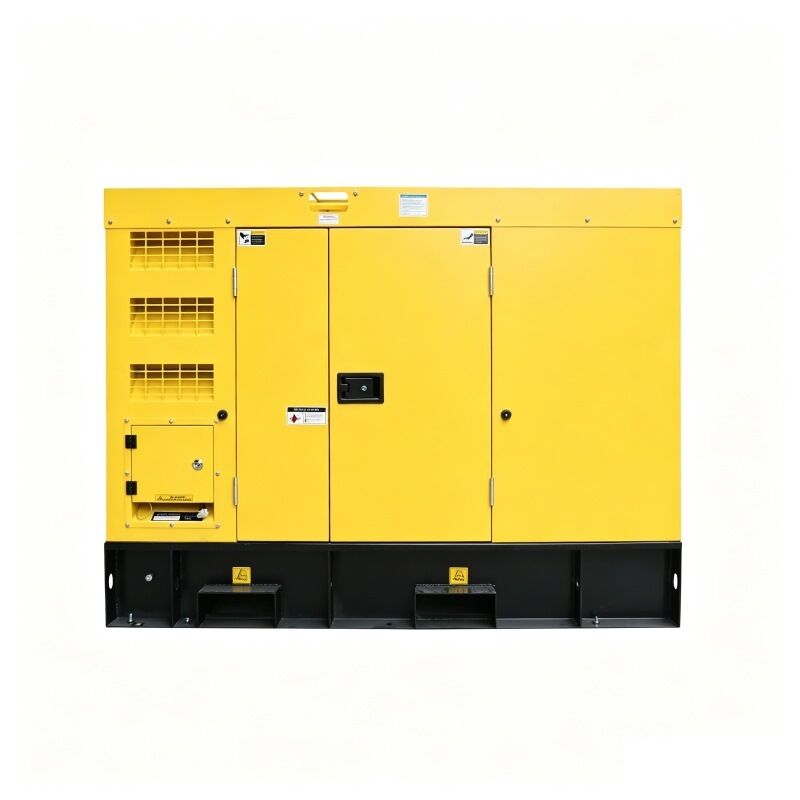

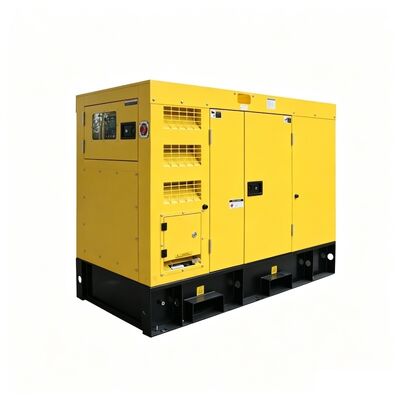

JFP 16KW Cummins Backup Standby Diesel Generator With Reliable Efficient And Durable Power Solution for Commercial Application
This 16kW (20kVA) silent Cummins backup diesel generator set adopts genuine DCEC Cummins 4B3.9-G1 diesel engine matched with STAMFORD high-efficiency brushless alternator, complying with ISO 8528 standards. Equipped with integrated rainproof silent canopy, it serves as reliable emergency backup power. Widely used for residential communities, shops, offices, telecom base stations, small construction sites and commercial facilities where noise control is required. It can be installed outdoors directly without additional noise reduction construction.
1. 60Hz/440V specification can be customized upon request.
2. Please confirm power definition: PRIME POWER or STANDBY POWER before order.
| Model | JFP-16GF |
| Prime Power (PRP) | 16 kW / 20 kVA |
| Standby Power (ESP) | 17.6 kW / 22 kVA |
| Rated Voltage | 400V / 230V, 3P4W Star Connection |
| Rated Frequency | 50 Hz |
| Rated Speed | 1500 rpm |
| Power Factor | 0.8 (Lagging) |
| Rated Line Current | 28.9A |
| Optional Type | Super Silent Type/Open/Trailer/Container |
| Brand & Model | DCEC Cummins 4B3.9-G1 |
| Type | 4-cylinder In-line, 4-stroke, Water-cooled, Direct Injection |
| Aspiration | Naturally Aspirated |
| Bore * Stroke | 102 mm × 120 mm |
| Displacement | 3.9 L |
| Starting System | DC 24V Electrical Start |
| Fuel Consumption (1500rpm) | 227 g/kW*h |
| Brand | Stamford |
| Type | Brushless, Self-excited, Rotating Field, Single Bearing |
| Rated Power | Prime:20 kVA; Standby:22 kVA |
| Standard AVR | MX321 |
| Insulation Class | H |
| Protection Grade | IP23 |
| Brand | Deepsea |
