EPA Certified 500KW Volvo Diesel Genset Power Plant For Mining Machinery

EPA Certified 500KW Volvo Engine Diesel Generators Power Plant for Mining Machinery

Product Overview

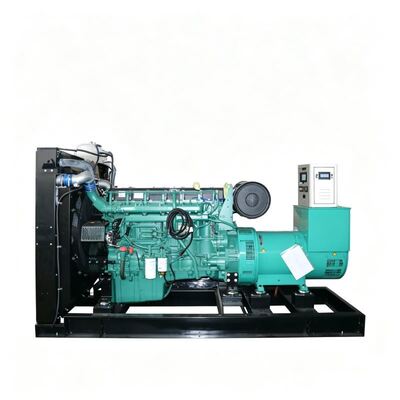

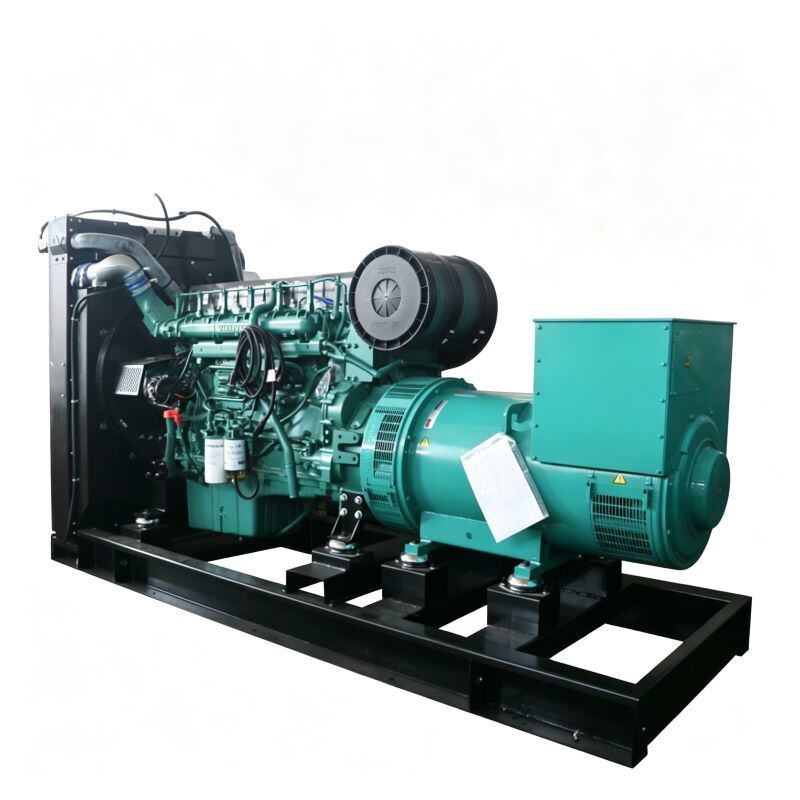

This 500kW /625kVA industrial diesel generator power plant is driven by genuine Volvo Penta heavy‑duty diesel engine with official EPA emission certification. Built to withstand harsh dusty, high‑vibration mining site conditions, it delivers stable prime or standby power for mining machinery, drill rigs, crushing equipment, mine workshop and on‑site facilities. Multiple construction versions available: open‑frame, silent canopy or container‑type power station. Matched with high‑efficiency 100% copper brushless alternator. Widely deployed for open‑pit and underground mining projects in EPA‑regulated regions. ISO & CE certificates are available for international tender and customs clearance.

Main Features

• Prime power: 500kW /625kVA; Standby power: 550kW /687.5kVA. Original Volvo Penta inline‑6‑cylinder turbocharged intercooled water‑cooled engine, EPA certified emission standard, electronic fuel injection system, excellent fuel economy, strong load‑acceptance capability, long service interval for heavy‑duty mining continuous operation.
• Mining‑oriented heavy‑duty configuration: heavy‑duty air filter assembly adapting to heavy dust mine environment, reinforced base frame, anti‑dust and anti‑corrosion treatment for whole unit.
• Multiple structure options:
  • Open‑Frame: robust steel base chassis, good heat dissipation, easy access for inspection, filter replacement and field repair
  • Silent Canopy: sound‑attenuated enclosure, rain‑proof & dust‑proof, for surface mine noise‑restricted zones
  • Container‑type: 20ft /40ft containerized portable power plant, convenient transportation for mobile mining sites
• 100% copper brushless alternator, H‑class insulation grade, IP23 protection grade, built‑in PMG‑AVR voltage regulation, outstanding transient response against frequent large‑load fluctuation of mining machinery.
• 3‑phase 4‑wire output, power factor 0.8 lagging; 50Hz /60Hz optional, rated voltage customizable (400V, 480V, 600V for mining equipment).
• Rotational speed: 1500RPM(50Hz), 1800RPM(60Hz).
• 24V DC electric starting system with maintenance‑free battery and battery charger.
• Industrial intelligent controller, real‑time monitor voltage, current, frequency, oil pressure, coolant temperature, exhaust temperature and running hours; support remote communication for mine central control room.
• Full‑range multi‑protection: over‑voltage, under‑voltage, over‑current, short‑circuit, overspeed, low oil pressure, high‑temperature alarm & automatic shutdown to protect unit under tough mining working conditions.
• Heavy‑duty reinforced anti‑vibration rubber mounts, resist vibration from surrounding mining equipment.
• Optional accessories: ATS auto‑transfer switch, mobile trailer, heavy‑duty filter kit, multi‑genset parallel cabinet, spill containment base.
• Certificates: EPA certification, ISO, CE optional for North America and global mining project procurement.

Technical Specifications

Competitive Advantages

1. Volvo Penta original engine with official EPA certification, meets emission requirements for North‑American mining projects, global after‑sales and spare‑parts support network.
2. Mining‑specific reinforced configuration: heavy‑dust air filtration, anti‑corrosion and anti‑vibration design, adapt to dusty, bumpy harsh mine‑site environment, reduce downtime.
3. Multiple structural options: open‑frame for low‑cost maintenance; silent canopy for surface mine; container‑type for relocatable mining project.
4. Premium brushless alternator with excellent transient performance, stable power output for drill rigs, crushers and other variable‑load mining machinery.
5. Complete safety protection plus remote monitoring function, convenient for mine site unattended operation management.
6. Rich customizable options; EPA / ISO / CE certifications support global mining tender procurement.

Application Scenarios

Open‑pit mines, underground mining sites, mineral processing plants, supply prime power and emergency backup power for mining drill rigs, crushing machinery, conveyors, mine workshops and site facilities.
