800kW Yuchai Engine Containerized Diesel Generator With ATS Optional

Brand Name:	JFP
Model Number:	JFP-800GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Type:

Silent Container

Warranty:

1 Year

Controller:

Deepsea/ComAp/Smartgen

Engine:

Yuchai

Color:

Customized Colors

Phase:

3 Phase 4 Wire

Rated Prime Power:

800kW / 1000kVA

Standby Power:

880kW / 1100kVA

Power Factor:

0.8 Lagging

Rated Voltage:

400/230V (Customizable)

Frequency:

50Hz / 60Hz Optional

Rated Speed:

1500rpm

Noise Level:

≤72dB(A) @7 Meters

Voltage Regulation Accuracy:

≤±1%

Packaging Details:

Plyfilm or plywood

Highlight:

800kW Containerized Diesel Generator

ATS Containerized Diesel Generator

Product Description

JFP 800kW/1000kVA Yuchai Containerized Diesel Genset With ATS Optional

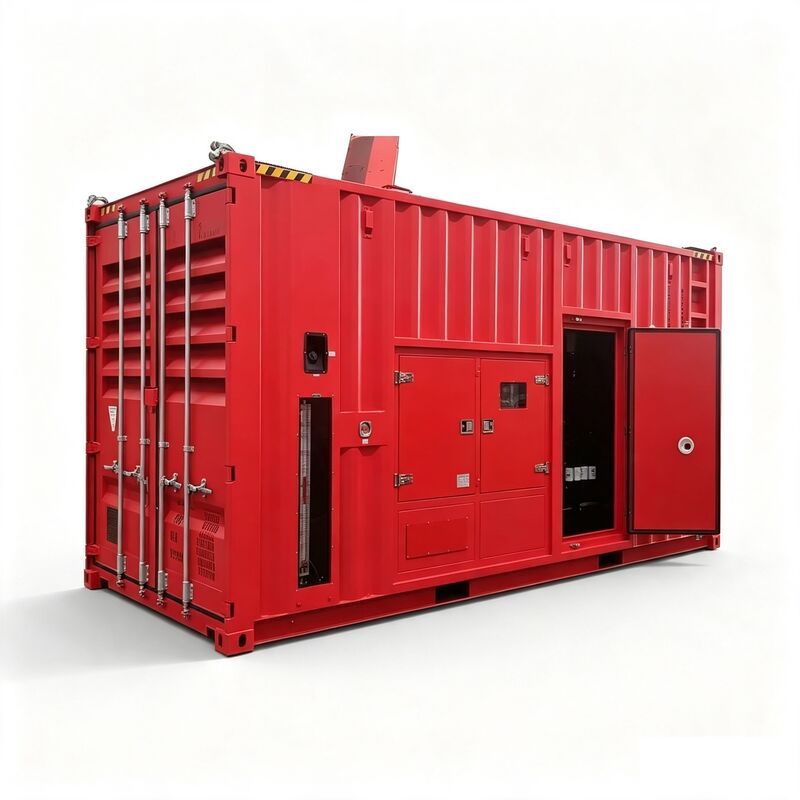

This 800kW containerized diesel generator set features a heavy-duty Yuchai industrial diesel engine and large frame brushless synchronous alternator, housed in a standard 40ft high cube marine container. Designed for all-weather operation with low noise and full protection systems, it's ideal for industrial and commercial applications requiring reliable prime or standby power.

Key Features

Original Heavy-Duty Yuchai Engine: Self-developed large-displacement industrial engine with electronic high-pressure common rail fuel injection, providing stable performance, low fuel consumption, and strong overload capacity
High-Performance Brushless Alternator: Large self-excited brushless alternator with digital AVR, ultra-low harmonic distortion, and pure sine wave output for sensitive equipment protection
40ft High Cube Silent Container: Marine steel construction with flame-retardant sound-absorbing insulation and multi-stage industrial silencer for excellent noise reduction
Dual Independent Cooling System: Separate cooling air channels with dust-proof filters and heavy-duty exhaust fans to prevent overheating during continuous operation
All-Weather Outdoor Design: IP54 protection rating for rainproof, dustproof, and anti-corrosion performance without requiring separate housing
Comprehensive Safety Protection: Full protection functions including low oil pressure, high temperature, overspeed, overload, and emergency stop systems
Separated Control Room: Isolated control compartment with digital intelligent controller for real-time monitoring and parameter display
Maintenance-Friendly Layout: Quick-opening maintenance doors, full internal walkway, and multiple lifting options for easy service access

Main Functions

Output 800kW continuous prime power and 880kW emergency standby power for industrial and commercial applications
Integrated silent container structure meets urban environmental noise standards for sensitive locations
Supports unattended continuous operation with automatic alarm and protective shutdown systems
Optional ATS cabinet enables seamless automatic switching between grid and generator power
Standard communication interfaces support remote monitoring, start-stop control, and fault alerts
Complete integrated power station with silencer, ventilation, and fuel supply systems
Standard 40ft container dimensions compatible with global shipping and transportation

Technical Parameters

Item	Specification
Rated Prime Power	800kW / 1000kVA
Standby Power	880kW / 1100kVA
Power Factor	0.8 lagging
Rated Voltage	400/230V (Customizable)
Frequency	50Hz / 60Hz Optional
Phase	3 Phase 4 Wire
Rated Speed	1500rpm
Engine Brand	Original Heavy-Duty Yuchai Industrial Diesel Engine
Structure	Standard 40ft High Cube Container Type
Cooling Method	Water Cooling
Startup Mode	24V DC Heavy-Duty Electric Start
Insulation / Protection Class	H Class / IP54
Noise Level	≤72dB(A) @7 meters
Voltage Regulation Accuracy	≤±1%
Control System	Isolated Digital Intelligent Central Controller
Approx. Dimensions (L×W×H)	12032 × 2438 × 2896 mm
Approx. Total Weight	16600 kg

Competitive Advantages

Mature Yuchai power assembly with stable full-load performance and outstanding cost-effectiveness
Factory pre-assembled and tested integrated unit reduces on-site installation time and costs
Optimized low-noise design compliant with urban environmental regulations
Dual independent cooling system prevents overheating during continuous operation
IP54 fully enclosed anti-corrosion container suitable for permanent outdoor placement
Separated control room provides comfortable monitoring environment isolated from vibration and noise
Comprehensive optional configurations for diverse industrial applications
Standard 40ft container design meets international shipping requirements

Application Scenarios

Medium-large data center backup power
Heavy industrial manufacturing parks
Municipal tertiary hospitals and healthcare facilities
Airports, railway hubs, and seaport terminals
Medium open-pit mines and chemical plants
Super commercial complexes and high-rise building clusters
Offshore supporting power stations
Government key infrastructure projects
