800kW Cummins Engine Silent Containerised Diesel Generator Set For Industrial Power

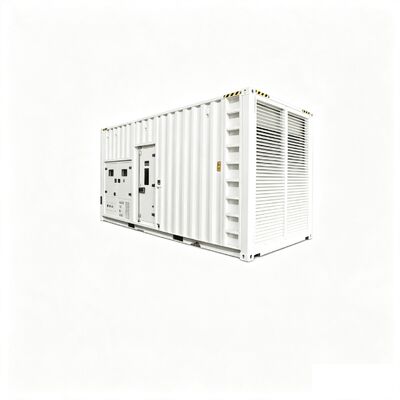

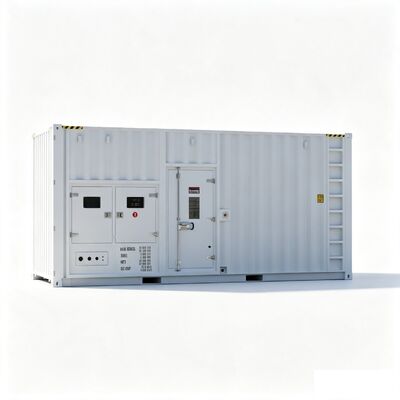

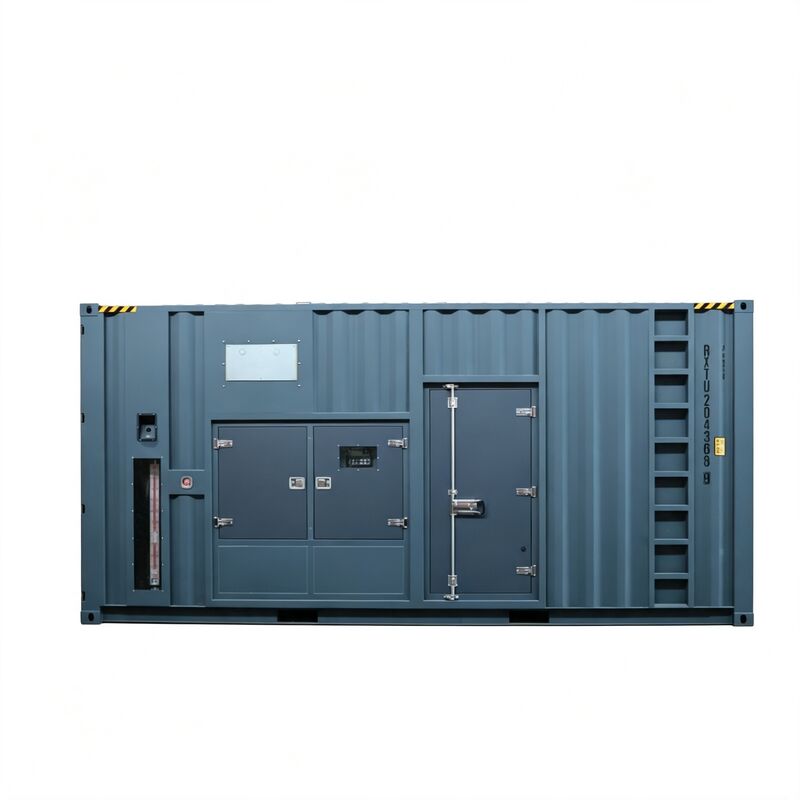

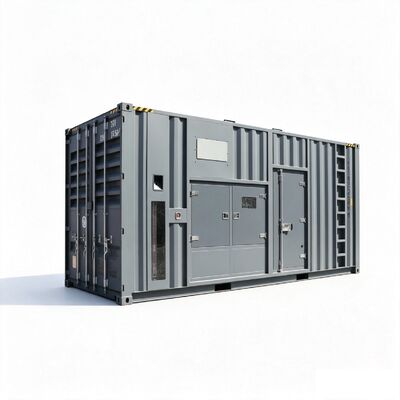

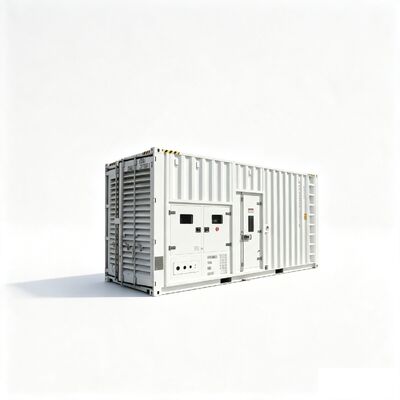

800kW Cummins Container Type Diesel Generator Set

Product Overview

This 800kW containerized diesel generator set is equipped with original heavy-duty Cummins industrial diesel engine, matched with large frame brushless synchronous alternator. The whole unit is assembled inside a standard 40ft high cube marine container, integrating multi-stage silencing system, dual independent forced ventilation & heat dissipation system, built-in daily fuel tank, separated sealed control room and full-length internal maintenance walkway to form a complete integrated power station. It features ultra-low noise, IP54 all-weather outdoor protection, stable 24-hour unattended full-load continuous operation, and standard container size compatible with global sea and land transportation. It can be used as long-term continuous prime power or critical emergency standby power for large industrial parks, medium-large data centers, municipal hospitals, ports, mines and chemical plants, fully complying with ISO8528, CE and international container logistics standards for global export.

Key Features

1.Genuine Heavy-Duty Cummins Industrial Engine

Original Cummins high-power engine with reinforced cast iron cylinder block, high-pressure common rail fuel injection system, abundant power reserve and strong overload capacity. It delivers stable full-load operation, low fuel consumption and low vibration, supported by a complete global spare parts supply and after-sales service network, with low failure rate for long-term heavy-load operation.

2. High-Performance Brushless Self-Excited Alternator

Large-size brushless alternator fitted with high-precision digital AVR, ultra-low harmonic distortion and pure stable sine wave output. It can withstand large motor starting impact and protect medical, communication and precision electronic equipment, adopting H-class insulation and IP23 internal protection for long service life.

3. 40ft High Cube Low-Noise Container Cabin

Thick marine-grade steel container shell coated with heavy anti-corrosion marine paint; inner wall fully lined with multi-layer flame-retardant high-density sound-absorbing cotton, equipped with built-in oversized multi-stage industrial silencer to achieve excellent noise reduction performance.

4. Dual Independent Forced Ventilation & Heat Dissipation System

Dust-proof air intake shutters with filter screens paired with heavy-duty large axial flow exhaust fans, forming an independent closed heat dissipation circulation channel. It thoroughly solves the heat accumulation risk of medium-high power units under long-time continuous full-load operation, avoiding over-temperature shutdown in high-temperature environments.

5. All-Weather Outdoor Integrated Design

The whole container reaches IP54 protection grade, rainproof, dustproof and salt-spray resistant, eliminating the need to build an independent noise reduction machine room on site. A large-capacity daily fuel tank is pre-installed inside the container, with reserved external fuel pipeline interfaces to connect large underground storage tanks for round-the-clock uninterrupted power supply.

6. Comprehensive Multi-Layer Safety Protection System

Complete protection logic including low oil pressure pre-alarm & automatic shutdown, high coolant temperature protection, overspeed, overload, overvoltage, undervoltage, short-circuit, reverse power and earth fault protection. Internal and external double emergency stop buttons are configured to ensure safe operation and maintenance.

7. Separated Sealed Intelligent Centralized Control Room

An independent control room isolated from the power cabin to block unit vibration and noise interference. The digital intelligent controller real-time displays coolant temperature, oil pressure, voltage, current, frequency, power, cumulative running hours and fault alarm codes.

8. Humanized Maintenance Layout & Diverse Optional Configurations

Large quick-opening maintenance doors on both sides, full-length internal maintenance walkway, explosion-proof LED lighting inside the container, top lifting lugs and bottom forklift holes for convenient hoisting, transportation and daily overhaul. Standard 24V DC heavy-duty maintenance-free electric start system; optional ATS automatic transfer switch cabinet, cloud remote monitoring module, low-temperature cold start preheating device and built-in automatic fire suppression system.

Main Functions

1. Output 800kW continuous prime power and 880kW emergency standby power for medium-large industrial and commercial high-power consumption critical sites.
2. Integrated silent container design meets strict urban environmental noise standards, applicable to downtown data centers, hospitals and commercial complexes with strict noise control requirements.
3. Support long-hour unattended continuous operation; automatically trigger alarm and protective shutdown under abnormal working conditions to prevent permanent damage to the unit.
4. Optional ATS cabinet realizes seamless automatic switching between municipal grid power and generator power to guarantee zero power interruption for vital loads.
5. Reserved standard communication interfaces support remote start-stop, real-time operating data viewing and fault alarm push via cloud monitoring platform.
6. Built-in complete silencer, ventilation and fuel supply system forms an independent integrated power station without additional supporting auxiliary equipment.
7. Standard international 40ft high cube container dimensions compatible with ocean freight, trucks and trailers, convenient for bulk delivery of overseas large-scale EPC projects.

Competitive Advantages

1. World-class Cummins high-power engine assembly, stable full-load performance, low failure rate, global spare parts and after-sales service support for overseas medium-large infrastructure projects.
2. Factory pre-assembled, fully wired and full-load aging tested integrated container unit; only foundation fixing and pipeline connection required after site arrival, greatly shortening project construction cycle and civil engineering costs.
3. Optimized low-noise container structure that complies with strict urban environmental protection noise limits, suitable for densely populated urban core areas with noise restrictions.
4. Dual independent forced air circulation heat dissipation design effectively eliminates high-temperature shutdown failures during long continuous full-load operation of medium-high power units.
5. All-weather rainproof, dustproof and anti-corrosion container shell allows permanent outdoor placement without constructing dedicated power station buildings.
6. Separated independent control room isolates unit vibration and noise, providing operators with a safe, comfortable monitoring and operation environment.
7. Rich optional supporting configurations including ATS cabinet, remote cloud monitoring, cold start preheating and fire suppression system to meet high-standard power station construction demands.
8. Each unit undergoes strict full-load aging inspection before shipment with stable batch quality; standard 40ft container size meets international sea transportation standards, ideal for mining, port and industrial park power supply overseas EPC projects.

Application Scenarios

Medium-large data center backup power, heavy industrial manufacturing parks, municipal tertiary hospitals, airports, railway hubs, seaport terminals, medium open-pit mines, chemical plants, super commercial complexes, high-rise building clusters, offshore supporting power stations, national key infrastructure projects.
