| Brand Name: | JFP |
| Model Number: | JFP-200GF |
| MOQ: | 1 |
| Payment Terms: | L/C,T/T |

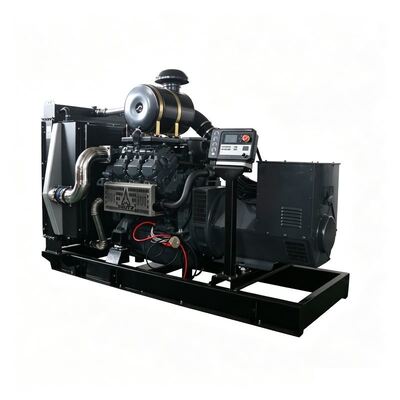

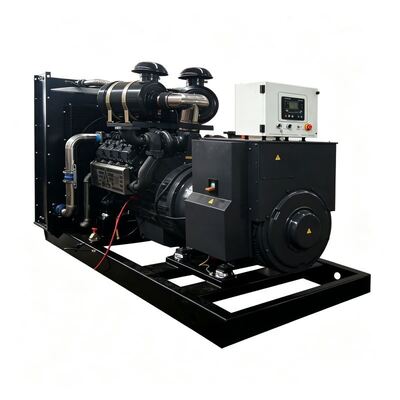

JFP 200kW(250kVA) Open Type Deutz Diesel Genset
Product Overview
This 200kW (250kVA) open frame diesel generator set is driven by genuine Deutz industrial diesel engine, matched with high-performance brushless synchronous alternator. Designed and manufactured strictly according to ISO 8528 international generator standards. The unit is mounted on an integrated heavy-duty steel base frame equipped with vibration isolators. It supplies stable prime continuous power and emergency standby power. It is widely used in industrial parks, factories, mining sites, commercial projects and other occasions equipped with dedicated generator rooms. The open layout brings great convenience for daily inspection, maintenance and overhaul.
Technical Specifications
| Unit General Parameters | |
|---|---|
| Prime Power | 200kW / 250kVA |
| Standby Power | 220kW / 275kVA |
| Rated Voltage | 400/230V (380/220V, 415/240V optional) |
| Frequency | 50Hz (60Hz customizable) |
| Rated Speed | 1500rpm |
| Phase & Connection | 3 Phase 4 Wires |
| Power Factor | 0.8 Lagging |
| Rated Current | 361A |
| Structure Type | Open Type (Base Frame Mounted) |
| Standard Controller | Smartgen / Deepsea Control Module |
| Optional Parts | ATS Automatic Transfer Switch, Remote Monitoring System, Water Jacket Heater |
| Deutz Diesel Engine | |
|---|---|
| Engine Model | TCD13.5 L6 |
| Configuration | 6-Cylinder, In-line, Four-Stroke, Water Cooled |
| Aspiration | Turbocharged & Intercooled |
| Displacement | 13.5 L |
| Governor | Electronic Governing System |
| Starting System | 24V DC Electric Start |
| Fuel Consumption | ~41.5 L/h @100% full load |
| Emission Standard | EU Stage IIIA / EPA Tier 3 |
| Alternator | |
|---|---|
| Type | Brushless, Self-excited, Single Bearing |
| Winding | 100% Pure Copper |
| Insulation Class | Class H |
| Protection Grade | IP23 |
| Voltage Regulation | ≤±1% |
| Note | Can be modified to Stamford if required |
| Open Base Frame & Dimension | |
|---|---|
| Base Frame | Thickened steel base with rubber vibration isolators |
| Overall Dimension (L×W×H) | 2900 × 1120 × 1650 mm |
| Approximate Weight | 2350 kg |
Main Features
Core Functions
Competitive Advantages
Application Scope
Manufacturing factories, industrial parks, mining projects, construction sites, logistics parks, large commercial buildings and other projects requiring continuous or emergency standby power supply.
