24KW Yuchai Silent Diesel Genset

Brand Name:	JFP
Model Number:	JFP-24GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Type:

Silent/Canopy

Warranty:

1 Year

Controller:

Deepsea/ComAp/Smartgen

Color:

Customized Colors

Engine:

Yuchai

Phase:

3 Phase 4 Wire

Rated Prime Power:

24KW / 30KVA

Standby Power:

26.4KW / 33KVA

Power Factor:

0.8 Lagging

Rated Voltage:

400/230V (Customizable)

Frequency:

50Hz / 60Hz Optional

Noise Level:

≤72dB @7m

Packaging Details:

Plyfilm or plywood

Highlight:

24KW Silent Diesel Genset

Industrial Silent Diesel Genset

30KVA Yuchai Diesel Genset

Product Description

JFP 24KW (30KVA) Yuchai Silent Diesel Genset

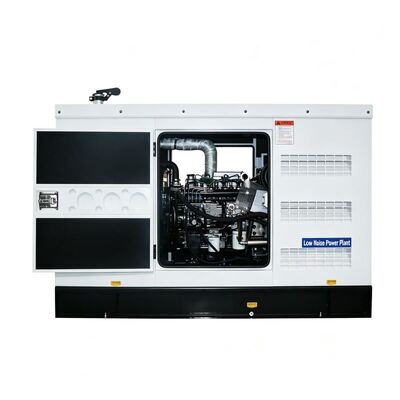

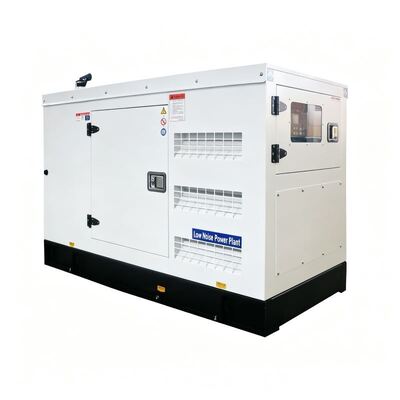

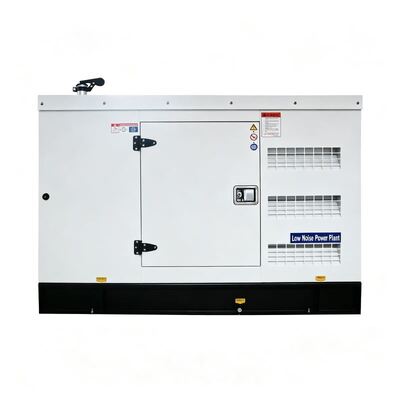

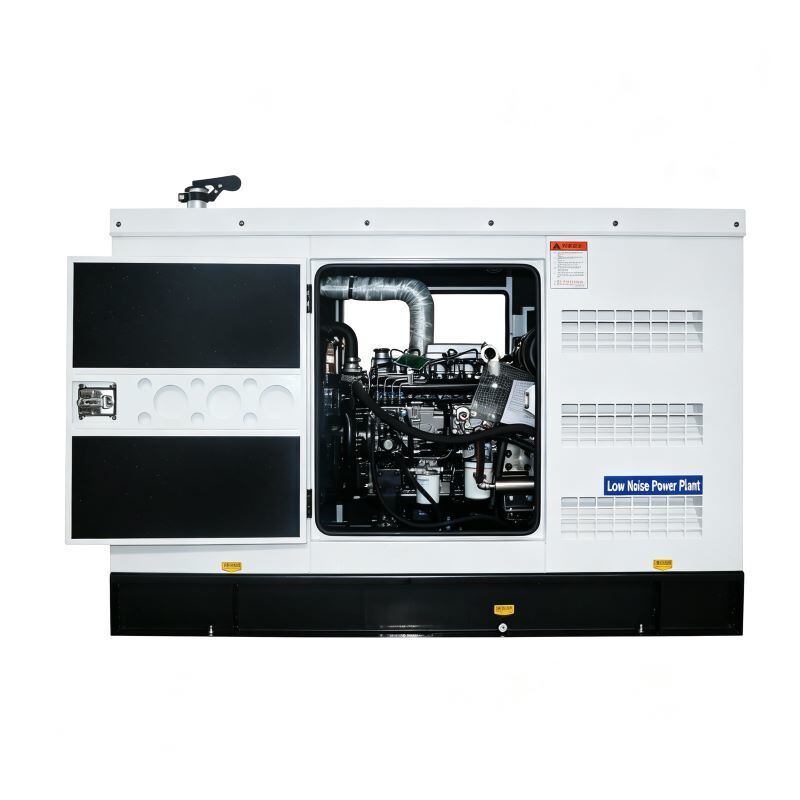

This 24KW (30KVA) silent diesel genset is powered by genuine Yuchai water-cooled diesel engine, matched with high-efficiency brushless synchronous alternator. Equipped with heavy-duty fully-enclosed silent canopy with multi-layer noise-reduction and optimized heat-dissipation system, the unit delivers stable power output with low-noise and low-vibration performance.

Product Overview

This generator set is widely suitable for noise-restricted urban areas, small workshops, commercial shops, residential communities, offices and construction sites. It can serve as continuous prime power supply or emergency standby power when mains power fails. Complying with ISO8528 and CE international standards, this genset features reliable performance, excellent cost-effectiveness and simple maintenance, providing economical and trustworthy power solutions for global small-and-medium industrial and commercial projects.

Key Features

Original Yuchai water-cooled diesel engine with proven mature structure, sufficient power reserve, low vibration and long service life
Heavy-duty silent canopy made of thickened steel plate, fitted with flame-retardant high-density sound-absorbing cotton, industrial muffler and base anti-vibration dampers
Brushless alternator equipped with high-precision AVR automatic voltage regulator, low harmonic distortion, pure sine-wave output to protect precision electronic devices
Complete multi-protection system: low oil pressure alarm, high coolant temperature shutdown, overspeed, overload, overvoltage, undervoltage and short-circuit protection
Whole-machine anti-rust and anti-corrosion surface treatment, H-class insulation and IP23 protection grade
Maintenance access doors reserved on canopy for convenient daily inspection, oil & filter replacement and fault troubleshooting
Standard 24V DC electric start; optional intelligent controller, ATS automatic transfer switch and remote monitoring module

Main Functions

Provide continuous prime power supply and emergency standby power supply
Real-time monitoring of coolant temperature, oil pressure, voltage, current, frequency and cumulative running hours
Automatic alarm and protective shutdown once abnormal working conditions occur
Optional ATS to realize automatic switching between mains power and generator power for unattended operation
Optional remote start-stop and real-time remote data monitoring function
Stable continuous operation under rated load within allowable ambient temperature range

Technical Parameters

Parameter	Specification
Rated Prime Power	24KW / 30KVA
Standby Power	26.4KW / 33KVA
Power Factor	0.8 lagging
Rated Voltage	400/230V (Customizable)
Frequency	50Hz / 60Hz Optional
Phase	3 Phase 4 Wire
Rated Speed	1500rpm
Engine Brand	Genuine Yuchai Water-cooled Diesel Engine
Noise Level	≤72dB @7m
Cooling Method	Water Cooling
Startup Mode	24V DC Electric Start
Insulation / Protection Class	H Class / IP23
Voltage Regulation Accuracy	≤±1%

Competitive Advantages

Well-known domestic Yuchai engine brand, mature technology, easy-to-source spare parts and convenient global after-sales support
Outstanding cost-performance compared with imported brands, effectively controlling customers' procurement budget
Factory pre-assembled silent canopy for whole-unit delivery, saving extra on-site noise-reduction construction investment
Optimized fuel injection and combustion system, low fuel consumption to reduce long-term operating expenditure
Compact and reasonable layout, convenient for hoisting, transportation and on-site installation
Comprehensive safety protection system reduces unexpected faults and extends unit service lifespan
Flexible configuration options: ATS, extended fuel tank, remote monitoring and cold-start device available

Application Scenarios

Small workshops, commercial stores, office buildings, residential districts, construction sites, clinics, hotels and remote areas without stable grid power supply.
