| Brand Name: | JFP |
| Model Number: | JFP-200GF |
| MOQ: | 1 |
| Payment Terms: | L/C,T/T |

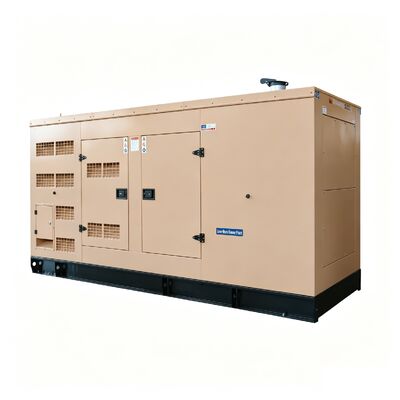

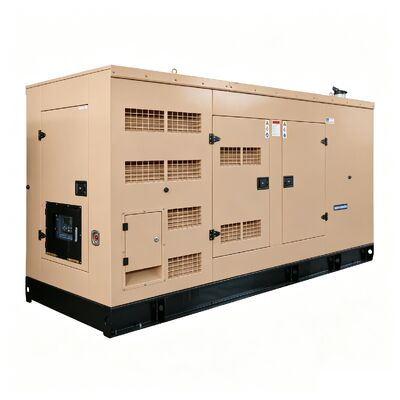

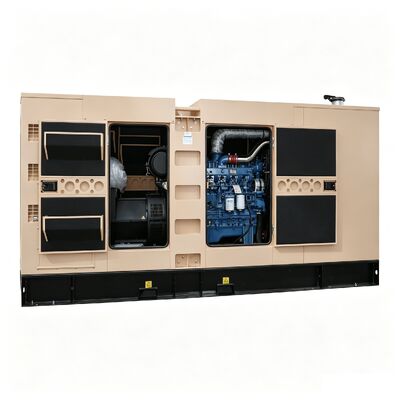

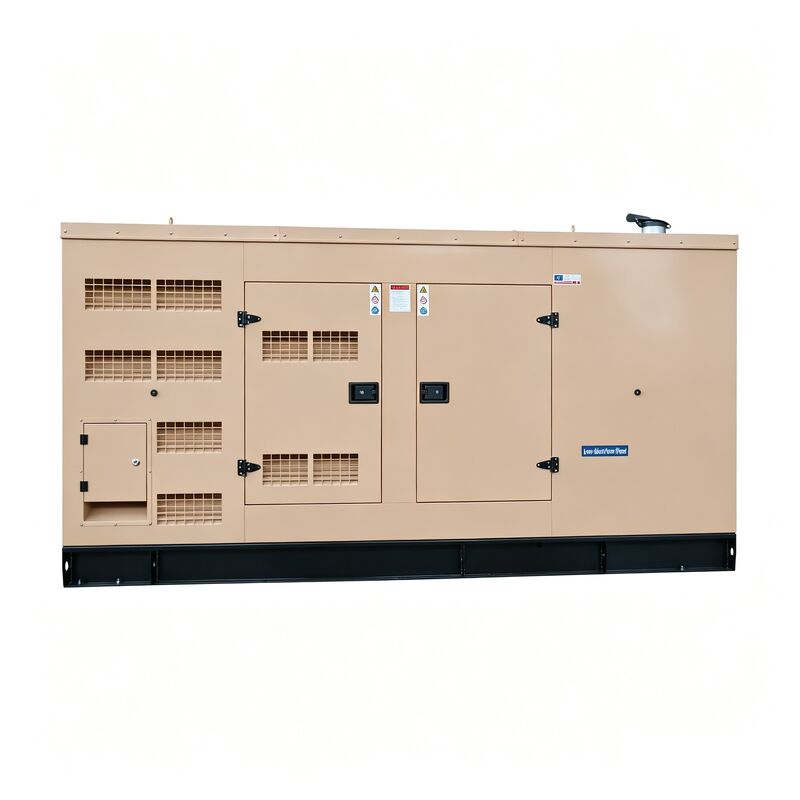

This 200kW (250kVA) silent diesel generator set is driven by original Yuchai heavy-duty industrial diesel engine, matched with high-efficiency brushless synchronous alternator. Equipped with heavy-duty weather-proof silent canopy, it effectively reduces operating noise and supports direct outdoor installation. It can serve as prime power or emergency standby power supply.
| Item | Specification |
|---|---|
| Rated Prime Power | 200kW / 250kVA |
| Standby Power | 220kW / 275kVA |
| Rated Frequency | 50Hz (60Hz optional) |
| Rated Voltage | 400/230V (480V customizable) |
| Rated Current | 361A |
| Power Factor | 0.8 Lagging |
| Rotating Speed | 1500rpm |
| Connection | 3 Phase 4 Wires, Star Connection |
| Structure Type | Silent Canopy Type |
| Noise Level @7m | ≤75dB(A) |
| Control System | Intelligent digital controller (ATS optional) |
| Overload Capacity | 110% rated load for 1 hour every 12 hours |
| Base Fuel Tank | 8-hour continuous running fuel tank |
| Item | Specification |
|---|---|
| Engine Model | YC6MK350-D20 |
| Configuration | In-line 6-cylinder, 4-stroke, water cooled |
| Intake Mode | Turbocharged & Intercooled |
| Governing Mode | Electronic governor |
| Displacement | 10.3L |
| Starting System | 24V DC electric start |
| Cooling System | Closed radiator cooling |
| Fuel Consumption | ≤202 g/kW*h |
| Fuel Type | 0# Diesel |
| Item | Specification |
|---|---|
| Type | Brushless self-excited synchronous alternator with AVR |
| Winding | 100% pure copper winding |
| Insulation Class | Class H |
| Protection Grade | IP23 |
| Steady-state Voltage Regulation | ≤±1% |
| Efficiency | ≥94.0% |
| Waveform Distortion Rate | ≤2.5% |
Emergency standby power for large industrial plants, hospitals, shopping malls, residential communities, large construction sites, office buildings, small-medium data centers, schools, water-treatment plants and other noise-restricted areas.
