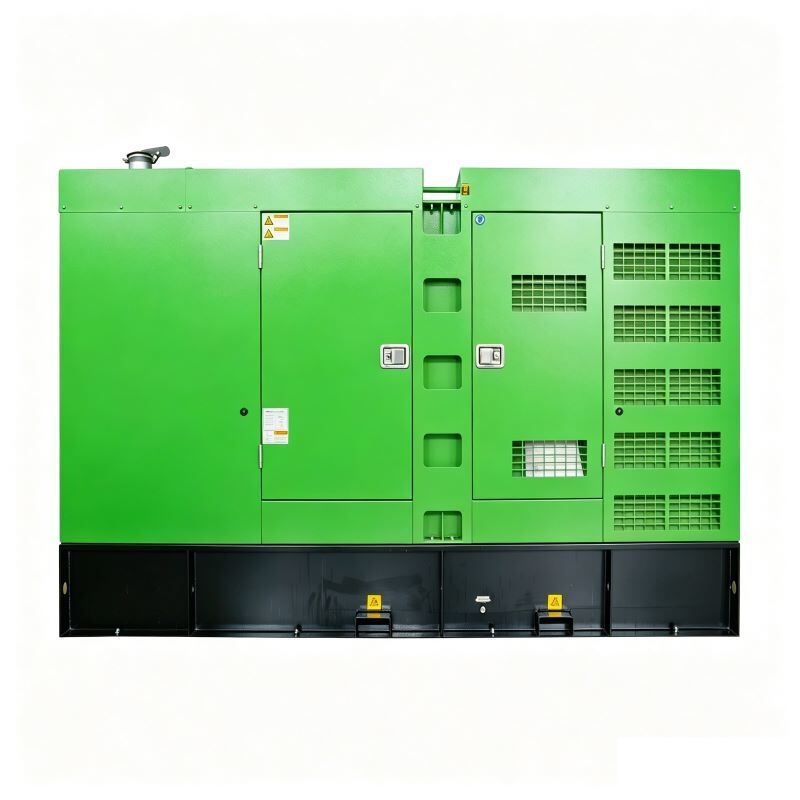

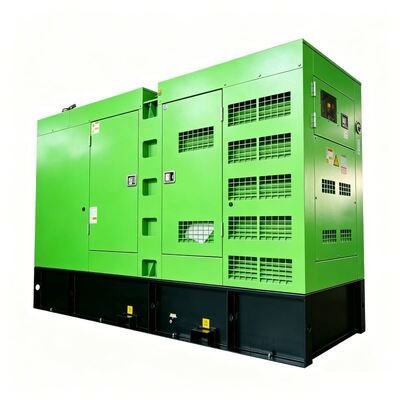

200kW Silent Diesel Genset

This 200kW (250kVA) silent diesel generator set is driven by original Shangchai heavy-duty industrial diesel engine, matched with high-efficiency brushless synchronous alternator. Equipped with heavy-duty weather-proof silent canopy, it greatly reduces running noise and supports direct outdoor installation. Suitable for both prime power and emergency standby power supply.

Widely used in residential zones, hospitals, commercial complexes, construction sites and other places with strict noise-control requirements. Optimized air duct design guarantees stable heat dissipation under long-time full-load continuous operation.

- Overall Dimension (L×W×H): 3150 × 1260 × 1720 mm

- Net Weight: 3050 kg

• Genuine Shangchai Heavy-duty Engine: Mature industrial power platform, strong power output, good load adaptability, low fuel consumption, complete global spare-parts supply system.
• Weather-resistant Silent Canopy: Adopts high-density sound-absorbing cotton and large-volume industrial silencer. The canopy is rain-proof, dust-proof and anti-corrosion. Multiple maintenance access doors for convenient inspection and component replacement.
• 100% Pure Copper Brushless Alternator: Fast voltage response, strong anti-impact-load capability, low failure rate and long service life.
• Optimized Air Intake & Exhaust Duct: Avoid hot-air recirculation, effectively prevent overheating under long-time full-load working condition.
• Multi-layer Safety Protection: Real-time monitoring for oil pressure, water temperature, rotating speed, voltage and current; automatic alarm and shutdown for fault conditions.
• Integrated Vibration-damping Structure: Heavy-duty rubber shock absorbers installed between base frame and power unit, reduce vibration transmission and secondary noise.

1. Good noise-reduction performance, meets urban environmental noise limits
2. Cost-effective domestic well-known Shangchai power, lower purchase and maintenance cost versus imported brands
3. Outdoor-ready silent canopy, no extra noise-reduction room required, saves civil-construction investment
4. Reasonable compact layout, convenient container loading, transportation and field installation
5. Stable output, suitable for power supply of precision instruments and critical loads
6. Rich optional items: ATS automatic transfer switch, remote monitoring, multi-units parallel system
7. Complete after-sales service network, fast spare-parts delivery

Standby power for hospitals, hotels, shopping malls, residential communities, large construction sites, office buildings, data centers, schools, water-treatment plants and other noise-restricted areas.
