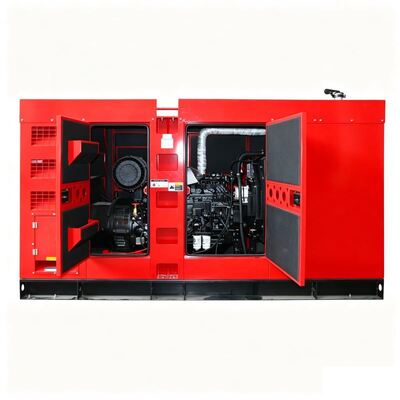

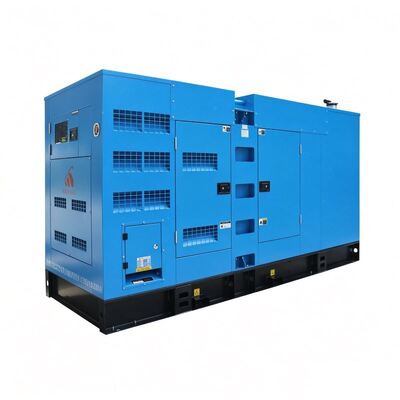

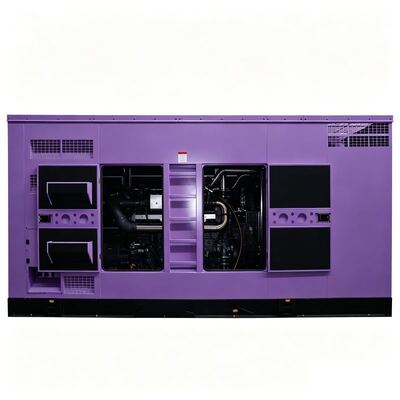

600kW Silent 3 Phase Natural Gas Generator Set With ATS Automatic Transfer Switch

This 600kW /750kVA silent natural gas generator set is powered by genuine Cummins turbocharged intercooled spark-ignition gas engine. It features a heavy-duty upgraded silent sound-proof canopy for outdoor installation with rated 230V three-phase four-wire output. Equipped with optional ATS auto-transfer switch for fully automatic unattended power switching between mains and genset. Runs on pipeline natural gas and is compatible with biogas. Matched with high-efficiency 100% copper brushless alternator. Suitable for prime power or emergency standby power for large factories, industrial parks and power plants. ISO & CE certificates available for international tender and customs clearance.

• Prime power: 600kW /750kVA; Standby power: 660kW /825kVA
• Original Cummins dedicated natural gas engine with 4-stroke turbocharged intercooled, lean-burn combustion technology
• Electronic gas-air mixing control for low gas consumption and strong load-acceptance capacity
• Heavy-duty silent sound-proof canopy with multi-layer composite sound-absorbing material and large-size industrial silencer
• Rain-proof, dust-proof and anti-corrosion surface treatment with large maintenance access doors
• Complete natural gas safety assembly including gas filter, pressure regulator, and gas safety shut-off valve
• 100% copper brushless alternator with H-class insulation grade and IP23 protection grade
• Built-in PMG-AVR automatic voltage regulation for stable 230V output
• 3-phase 4-wire output with power factor 0.8 lagging
• 50Hz / 60Hz optional with rotational speed: 1500RPM(50Hz), 1800RPM(60Hz)
• 24V DC electric starting system with maintenance-free battery and battery charger
• ATS Auto-Transfer Switch optional for automatic power switching
• Industrial intelligent controller with real-time monitoring and remote communication
• Full-range multi-protection system for safety and reliability
• Heavy-duty reinforced anti-vibration rubber mounts

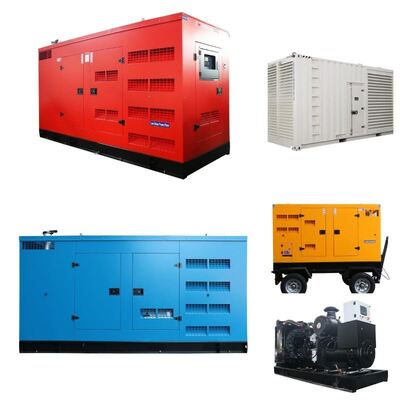

• Optional accessories including mobile trailer and multi-genset parallel cabinet

• Original Cummins natural gas engine with mature lean-burn technology and global spare-parts supply network
• Heavy-duty silent canopy achieves low-noise operation with rain-proof & dust-proof design for outdoor industrial sites
• Complete gas safety protection components ensure system safety for long-term gas-fueled operation
• Premium 100% copper brushless alternator provides stable clean 230V three-phase power for industrial variable loads
• Optional ATS auto-transfer system enables unattended automatic power switchover
• Rich customizable options with ISO & CE certifications for global industrial project requirements

Large-scale manufacturing factories, industrial parks, power plants, providing prime power and emergency standby power for production equipment and public facilities.
