300kW 375kVA Super Silent Emergency Diesel Generator Water Cooled With 60Hz ATS

Brand Name:	JFP
Model Number:	JFP-300GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Warranty:

1 Year

Phase:

3 Phase 4 Wire

Application:

Emergency Standby Power

Prime Power:

300kW / 375kVA

Standby Power:

330kW / 412.5kVA

Frequency:

60Hz

Rated Voltage:

480/277V, 3 Phase 4 Wire

Rated Current:

451A

Power Factor:

0.8 Lagging

Cooling Method:

Water Cooled

Noise Level:

≤72dB(A) @7m

Packaging Details:

Plyfilm or plywood

Highlight:

375kVA Emergency Diesel Generator

Super Silent Emergency Diesel Generator

300kW Diesel Generator Water Cooled

Product Description

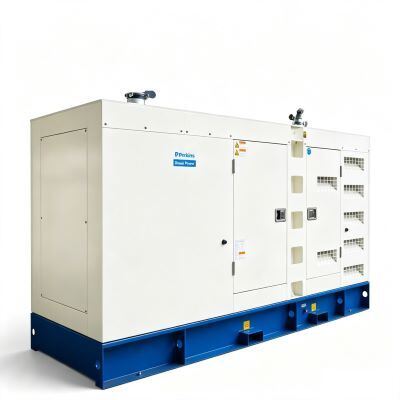

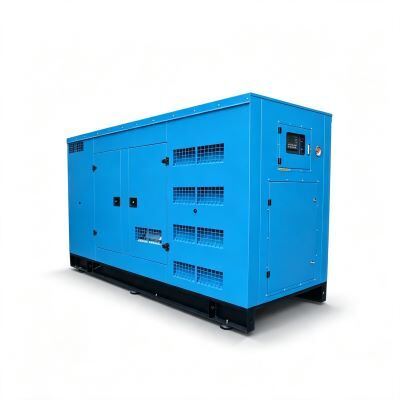

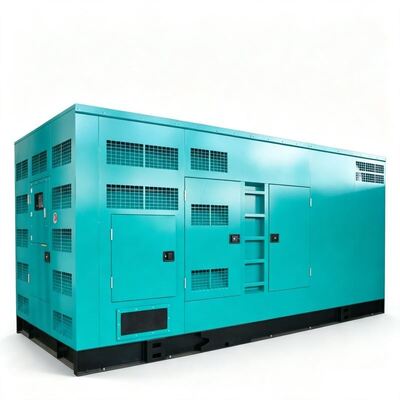

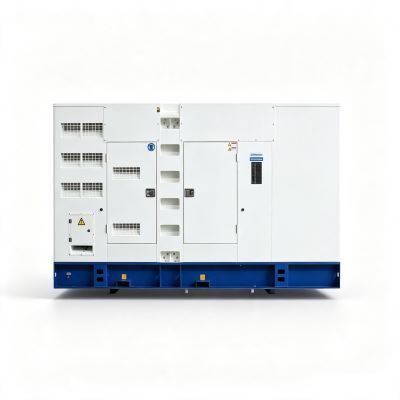

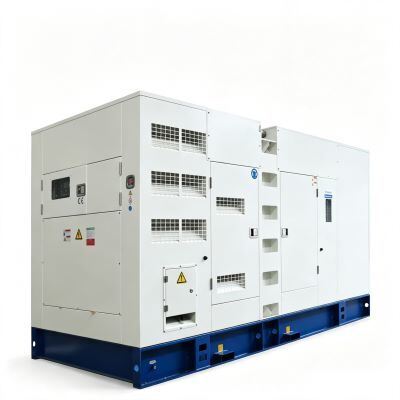

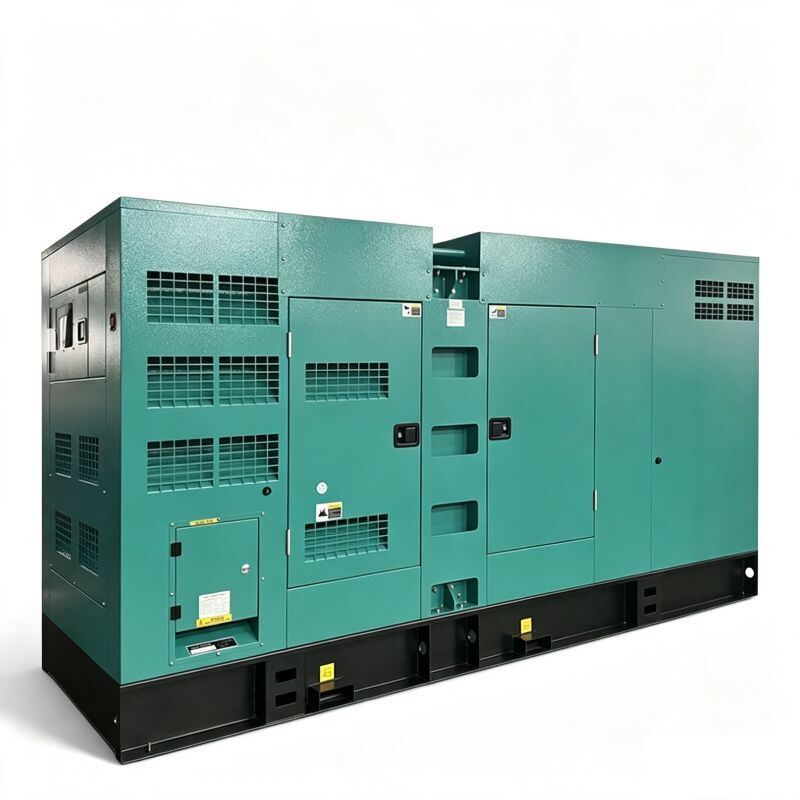

JFP 300kW / 375kVA Super Silent Water Cooled Emergency Diesel Genset With 60Hz ATS for Emergency Standby Power

This 300kW prime power / 375kVA standby power water-cooled super silent diesel genset is engineered for global 60Hz markets. Featuring a heavy-duty industrial diesel engine, full-copper brushless alternator, and integrated soundproof canopy, it provides reliable uninterrupted emergency backup power for various applications while fully complying with ISO 8528 international generator standards.

Key Features

Water-Cooled Heavy-Duty Industrial Diesel Engine: Four-stroke water-cooled turbocharged intercooled engine with electronic common rail fuel injection. Features sufficient power reserve, strong anti-overload capacity, low fuel consumption, and stable long-hour continuous heavy-load operation.
Super Silent Fully Sealed Canopy: All-weather rainproof, dustproof and anti-corrosion steel soundproof enclosure with multi-layer high-density sound-absorbing cotton. Operating noise ≤72dB(A) @7 meters with optimized heat dissipation for direct outdoor placement.
60Hz Customized Full Copper Brushless Alternator: Class H insulation, IP23 protection grade, ultra-low voltage waveform distortion. Standard 480/277V 3 Phase 4 Wire output for 60Hz countries.
Auto Start & Optional ATS Automatic Transfer Switch: Built-in auto-start control logic with ignition within 5-10 seconds of grid power failure. Optional ATS cabinet enables full unattended operation.
Intelligent Digital Controller & Comprehensive Safety Protection: High-end controller with real-time monitoring and complete protection functions including overspeed, high water temperature, low oil pressure, and emergency shutdown.
Integrated Heavy-Duty Base Frame: Thick channel steel welded base with built-in large-capacity daily fuel tank and high-density rubber shock absorbers.

Technical Specifications

Item	Parameter
Prime Power	300kW / 375kVA
Standby Power	330kW / 412.5kVA
Frequency	60Hz
Rated Voltage	480/277V, 3 Phase 4 Wire
Rated Current	451A
Power Factor	0.8 lagging
Cooling Method	Water Cooled
Startup Mode	24V DC Auto Electric Start
Structure Type	Super Silent Rainproof Canopy
Noise Level	≤72dB(A) @7m
Fuel Consumption @75% Rated Load	~63.5 L/h
Optional Configuration	ATS auto transfer switch, remote cloud monitoring, mobile trailer

Competitive Advantages

Specialized 60Hz design for overseas export markets
Ultra-quiet super silent canopy meeting urban environmental noise control standards
Auto-start function plus ATS automatic switching for 24-hour unattended operation
Water cooling system ensures stable continuous operation under heavy industrial loads
Factory full-load aging test before delivery with pre-assembled integrated structure
Global spare parts supply network for convenient after-sales maintenance

Application Scenarios

Overseas industrial plants, mining areas, large shopping malls, hotels, central hospitals, data centers, urban municipal construction sites, residential communities, port terminals and all projects requiring 60Hz automatic emergency backup power.
