3 Phase 4 Wire 24V DC Electric Start Diesel Generator 35 KW Emergency Generator

Brand Name:	JFP
Model Number:	JFP-35GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Controller:

Deepsea/ComAp/Smartgen

Warranty:

1 Year

Phase:

3 Phase 4 Wire

Prime Power:

35kW / 44kVA

Standby Power:

38.5kW / 48.4kVA

Voltage Standard:

400/230V, 3 Phase 4 Wire

Rated Current:

63A

Frequency / Speed:

50Hz / 1500rpm

Starting Mode:

24V DC Electric Start

Packaging Details:

Plyfilm or plywood

Highlight:

3 Phase Electric Start Diesel Generator

4 Wire Electric Start Diesel Generator

Diesel 35 KW Emergency Generator

Product Description

JFP 35KW 44KVA Open Frame Silent Diesel Genset

This 35kW (44kVA) three-phase four-wire diesel generator supports both open frame and silent canopy versions, fitted with reliable industrial diesel engine and 24V DC electric starting system. It delivers stable emergency standby power, widely used for residential backup, small construction sites, shops, field work and disaster power supply, fully compliant with ISO 8528 global generator standards.

Main Features

Reliable Industrial Diesel Engine: 4-stroke water-cooled/air-cooled optional, turbocharged intercooled, mechanical/electronic governor, stable output, low fuel consumption, strong adaptability to high temperature and dusty environments.
24V DC Electric Start System: Standard 24V heavy-duty storage battery, one-click electric startup, easy operation without manual cranking, suitable for unattended emergency startup.
3 Phase 4 Wire Output: Rated 400/230V three-phase four-wire, compatible with three-phase construction equipment and single-phase daily electrical loads simultaneously, power factor 0.8 lagging.

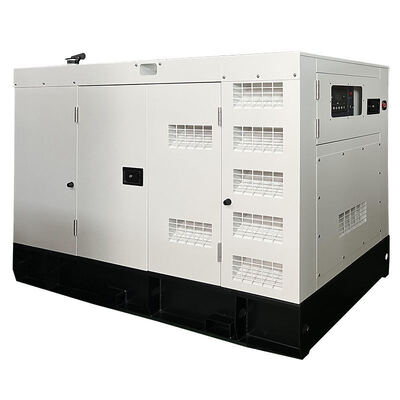

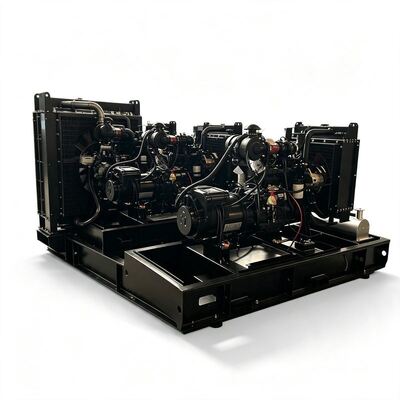

Two Optional Structures: Open Frame for simple exposed rack with low cost and convenient maintenance, or Silent Canopy with multi-layer sound absorption for noise ≤75dB(A)@7m, rainproof & dustproof.
All-Copper Brushless Alternator: Class H insulation, IP23 protection grade, low voltage distortion, clean power to protect precision electrical appliances.
Intelligent Digital Controller: Real-time display of voltage, current, frequency, water temperature, oil pressure, speed and running hours with full safety protection and auto shutdown.
Integrated Base Frame: Channel steel welded base with built-in daily fuel tank, thick rubber shock pads to reduce vibration; optional trailer chassis for mobile transfer.

Technical Specifications

Item	Parameter
Prime Power	35kW / 44kVA
Standby Power	38.5kW / 48.4kVA
Voltage Standard	400/230V, 3 Phase 4 Wire
Rated Current	63A
Frequency / Speed	50Hz / 1500rpm
Starting Mode	24V DC Electric Start
Structure Type	Open Frame / Silent Canopy Optional
Cooling System	Water Cooled Standard
Fuel Consumption @75% Load	~7.6 L/h
Insulation Grade	Class H
Protection Class	IP23

Competitive Advantages

Dual structural options (open frame & silent) to match different site and budget demands
Standard 24V DC electric start, effortless startup for emergency power failure
3 phase 4 wire design meets mixed single & three-phase load demands
Compact size, easy transport and fast on-site installation
Complete fault self-protection system to extend unit service life
Low maintenance cost, mature spare parts supply for global after-sales service
