200KW 250KVA Prime Power Silent Diesel Generator Water Cooled Emergency Genset

Brand Name:	JFP
Model Number:	JFP-200GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Controller:

Deepsea/Smartgen

Warranty:

1 Year

Type:

Silent Type

Color:

Blue, Or Customized

Engine:

Perkins

Phase:

3 Phase 4 Wire

Rated Prime Power:

200kW / 250kVA

Standby Emergency Power:

220kW / 275kVA

Power Factor:

0.8 Lagging

Rated Voltage:

400/230V (Customizable)

Frequency:

50Hz / 60Hz Optional

Rated Speed:

1500rpm / 1800rpm Optional

Packaging Details:

Plyfilm or plywood

Highlight:

250KVA Diesel Generator Water Cooled

200KW Silent Diesel Generator

Prime Power Emergency Genset

Product Description

JFP 200KW 250KVA Silent Diesel Generator Water Cooled EPA Certified Tier 3 Emergency Backup Genset with ATS 60HZ

This 200kW silent emergency backup genset is powered by original Perkins industrial diesel engine, matched with high-efficiency brushless synchronous alternator and heavy-duty integrated silent soundproof canopy. It is specially designed for emergency power supply scenarios such as hospitals, medical centers, fire stations, emergency command centers and urban medical rescue institutions.

Product Overview

Equipped with multi-stage silencing system, independent forced heat dissipation, built-in daily fuel tank and intelligent linkage control system, it can realize rapid self-start within 3-8 seconds after mains failure to guarantee uninterrupted power for medical rescue equipment, life support instruments and emergency lighting. The whole unit meets ISO8528 and CE export standards, low noise, IP54 all-weather outdoor protection, suitable for long-term unattended standby operation.

Key Features

200kW Prime Power: Stable output for industrial and commercial applications

Advanced Noise Reduction: Operates below 75 dB(A) with enclosed canopy design

Perkins 1106D-E70TAG5 Engine: High-efficiency, low-emission performance meeting ISO 8528 standards

Durable Construction: Reinforced steel frame and corrosion-resistant components for harsh environments

Smart Control System: Auto-start, fault detection, and remote monitoring via LCD panel

Technical Specifications

Item	Specification
Rated Prime Power	200kW / 250kVA
Standby Emergency Power	220kW / 275kVA
Power Factor	0.8 lagging
Rated Voltage	400/230V (Customizable)
Frequency	50Hz / 60Hz Optional
Rated Speed	1500rpm / 1800rpm Optional
Engine Brand	Original Perkins Industrial Diesel Engine
Structure Type	Integrated Silent Soundproof Canopy (First-aid Emergency Backup)
Cooling Method	Water Cooling
Startup Mode	24V DC Heavy-Duty Electric Start
Insulation / Whole Machine Protection Class	H Class / IP54
Noise Level	≤72dB(A) @7 meters
Voltage Regulation Accuracy	≤±1%
Control System	Digital Intelligent Emergency Controller, ATS Optional
Approx. Dimension (L×W×H)	4860 × 1860 × 2330 mm
Approx. Total Weight	7350 kg

Competitive Advantages

Original Perkins engine with mature stable performance, reliable frequent startup performance, specially adapted for hospital long-term standby emergency working conditions, global after-sales maintenance support
Medical customized low-noise silent canopy, effectively reduce noise pollution in medical areas, meet hospital environmental management requirements
Factory pre-assembled and full-load aging tested before delivery, simple on-site fixing and pipeline connection, short construction cycle for hospital emergency power transformation projects
High-quality alternator with low harmonic distortion, no damage to precision first-aid equipment such as ventilators and defibrillators
IP54 fully enclosed waterproof and dustproof structure, can be placed outdoors near hospital buildings, save civil engineering room construction cost
Intelligent emergency dedicated control program, fast response power failure startup, perfect match the uninterrupted power demand of medical rescue
Diversified optional configurations including ATS, remote monitoring and cold start heater, to meet the emergency power supply demands of community clinics, general hospitals and large emergency command centers

Application Scenarios

General hospital emergency backup power

Medical first-aid center standby genset

Fire rescue station power reserve

Urban emergency command center

Medical isolation ward

Blood station

Medical laboratory

Health service center

Medical mobile rescue stations

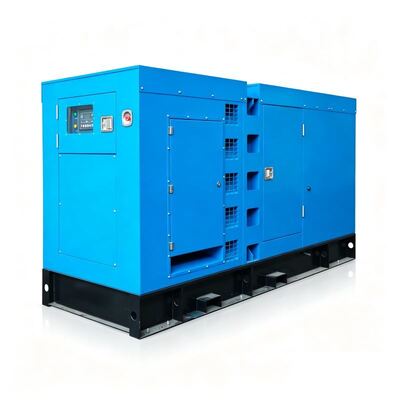

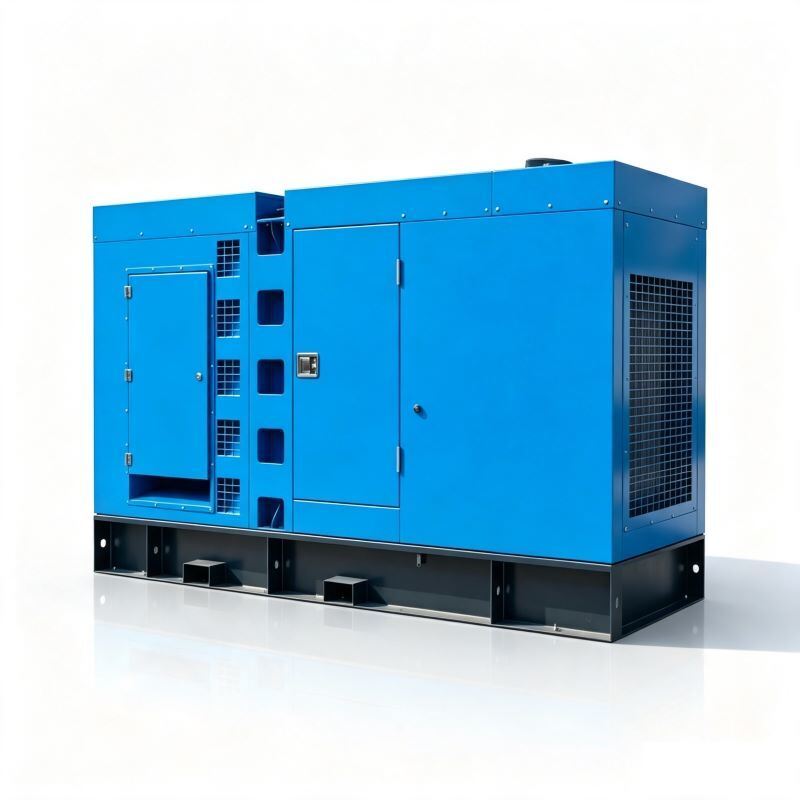

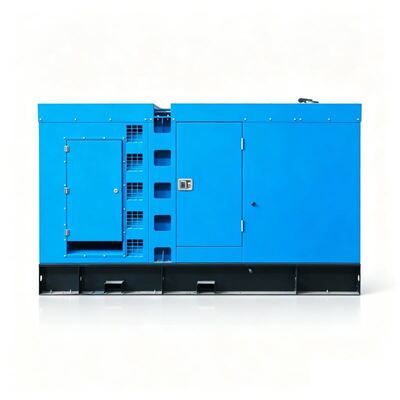

Product Images
