160kW Yuchai Open Type Diesel Generator Set With Leroy Somer Alternator For Industrial Power

Brand Name:	JFP
Model Number:	JFP-160GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Type:

Open Type

Phase:

3 Phase 4 Wire

Engine:

Yuchai

Warranty:

1 Year

Controller:

Deepsea/ComAp/Smartgen

Prime Power:

160kW / 200kVA

Standby Power:

176kW / 220kVA

Rated Voltage:

400V / 230V, 3-Phase 4-Wire

Rated Current:

289A

Frequency:

50Hz

Rotation Speed:

1500rpm

Packaging Details:

Plyfilm or plywood

Highlight:

160kW Open Type Diesel Generator Set

Industrial Open Type Diesel Generator Set

160kW Industrial Diesel Generator

Product Description

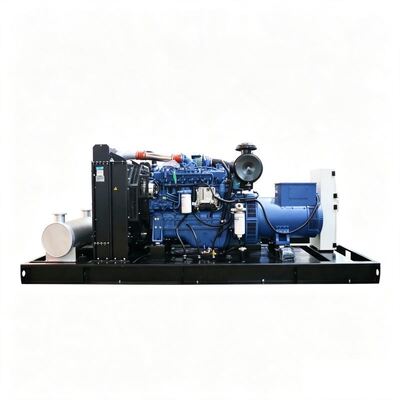

JFP 160kW Yuchai Open Type Diesel Genset With Leroy Somer Alternator

This 160kW (200kVA) open-frame diesel generator set is driven by genuine Yuchai industrial diesel engine and coupled with Leroy-Somer brushless self-excited alternator. Produced in compliance with ISO 8528-1 international generator standard. It provides continuous prime power and emergency standby power for factories, commercial buildings, hospitals, construction sites, mining areas and telecommunication stations.

Product Overview

The open-type structure offers outstanding heat dissipation and easy access for inspection, overhaul and component replacement, suitable for installation in dedicated generator room or outdoor shelter.

Main Features

Heavy-duty open steel base chassis, excellent heat dissipation performance, convenient for daily inspection, maintenance and parts replacement
Yuchai water-cooled four-stroke industrial diesel engine, sufficient power reserve, good fuel economy and stable running performance
Leroy-Somer brushless self-excited alternator, low voltage waveform distortion, stable power output, few wearing components and long service life
Equipped with Deepsea intelligent controller, real-time monitoring of voltage, current, frequency, oil pressure, water temperature and running hours
Full protection functions: overspeed, high water temperature, low oil pressure, over-voltage, under-voltage, overload protection, with fault alarm and automatic shutdown
Integrated steel base frame with built-in fuel tank; anti-vibration dampers reduce vibration transmission between power unit and base
Standard local manual start-stop; optional ATS automatic transfer switch for unattended emergency power supply

Functions

Continuous prime power output for regular industrial loads
Emergency standby power supply when mains grid fails
Multi-parameter real-time monitoring, fault alarm and automatic emergency stop
Local manual start-stop control
Optional ATS auto transfer, remote monitoring function

Technical Specifications

Prime Power	160kW / 200kVA
Standby Power	176kW / 220kVA
Rated Voltage	400V / 230V, 3-Phase 4-Wire
Rated Current	289A
Frequency	50Hz
Power Factor	0.8 lagging
Rotation Speed	1500rpm
Alternator	Leroy Somer, brushless self-excited, IP23, Insulation Class H
Engine	Yuchai industrial diesel engine, 4-stroke, water-cooled, direct injection
Governor	Electronic governor
Cooling System	Water radiator cooling
Fuel Consumption @75% load	~34 L/h
Base Frame	Heavy-duty open steel base, integrated fuel tank, anti-vibration mounts
Controller	Deepsea auto-start controller
Protection Class	IP23

Competitive Advantages

Mature matching of original Yuchai engine and Leroy-Somer alternator, worldwide well-known, easy global spare-parts sourcing, high cost-performance
Open-type structural design brings superior heat dissipation, effectively avoids overheating risk under long-time heavy-load continuous operation
Leroy-Somer brushless alternator outputs clean high-quality power, suitable for sensitive electronic equipment, low maintenance workload
Complete multi-safety-protection system effectively protects the unit from damage under abnormal working conditions
Integrated base design for easy transportation and generator-room installation; flexible to equip silencer, ATS, remote monitoring and other optional accessories
Strict factory performance test according to ISO 8528-1 standard, stable and reliable for long-duration continuous running

Application Scope

Manufacturing plants, commercial complexes, hospitals, construction sites, mines, telecom base stations, water treatment plants, industrial workshops and other prime power or emergency backup power occasions.
