| Brand Name: | JFP |
| Model Number: | JFP-600GF |
| MOQ: | 1 |
| Payment Terms: | L/C,T/T |

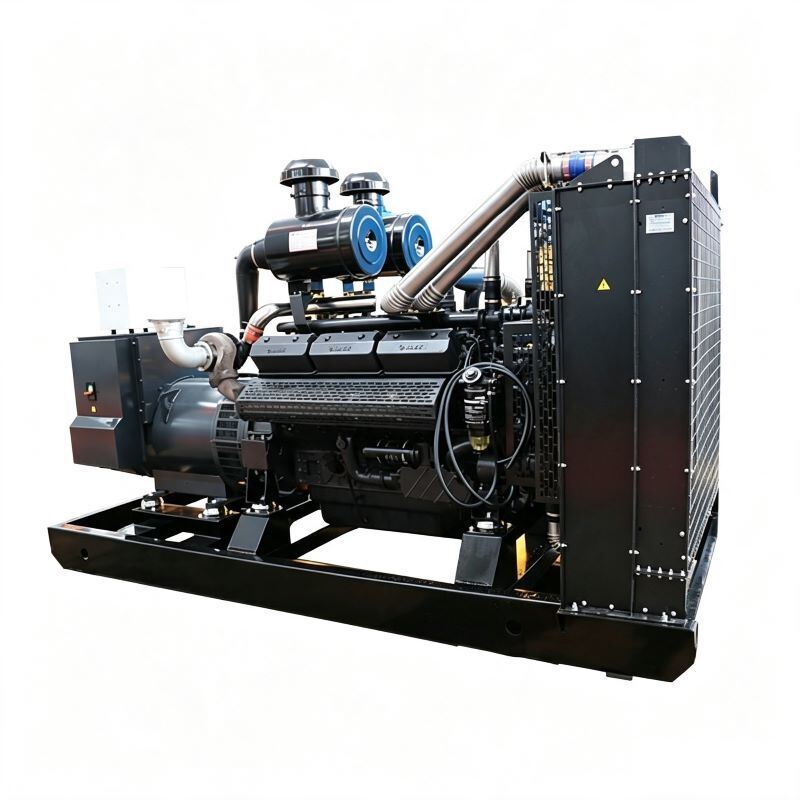

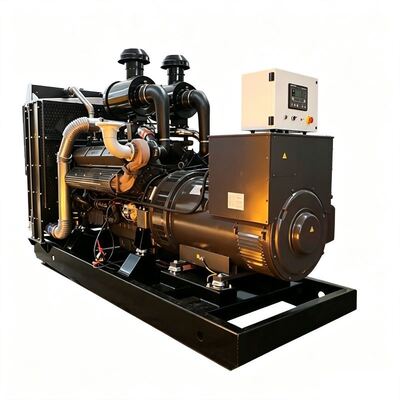

This 600kW (750kVA) open-frame diesel generator set features a genuine Shangchai heavy-duty industrial diesel engine paired with a high-efficiency brushless synchronous alternator. The open base frame design provides excellent heat dissipation performance and easy access for inspection, troubleshooting, and component replacement. Suitable for prime power or emergency standby applications, it's ideal for large factories, mines, heavy construction sites, industrial parks, and other locations without strict noise-restriction requirements.
| Rated Prime Power | 600kW / 750kVA |
| Standby Power | 660kW / 825kVA |
| Rated Frequency | 50Hz (60Hz optional) |
| Rated Voltage | 400/230V (480V customizable) |
| Rated Current | 1082A |
| Power Factor | 0.8 Lagging |
| Rotating Speed | 1500rpm |
| Connection | 3 Phase 4 Wires, Star Connection |
| Structure Type | Open Frame Type |
| Control System | Intelligent digital controller (ATS optional) |
| Overload Capacity | 110% rated load for 1 hour every 12 hours |
| Base Fuel Tank | 8-hour continuous running fuel tank |
| Engine Model | SC25G830D2 |
| Configuration | In-line 6-cylinder, 4-stroke, water cooled |
| Intake Mode | Turbocharged & Intercooled |
| Governing Mode | Electronic governor |
| Displacement | 24.4L |
| Starting System | 24V DC electric start |
| Cooling System | Closed radiator cooling |
| Fuel Consumption | ≤205 g/kW*h |
| Fuel Type | 0# Diesel |
| Type | Brushless self-excited synchronous alternator with AVR |
| Winding | 100% pure copper winding |
| Insulation Class | Class H |
| Protection Grade | IP23 |
| Steady-state Voltage Regulation | ≤±1% |
| Efficiency | ≥94.8% |
| Waveform Distortion Rate | ≤2.5% |
Prime power or emergency backup power for large industrial plants, mining sites, heavy construction sites, industrial parks, large warehouses, water treatment plants and other sites without strict noise-control requirements.
