| Brand Name: | JFP |
| Model Number: | JFP-1800GF |
| MOQ: | 1 |
| Payment Terms: | L/C,T/T |

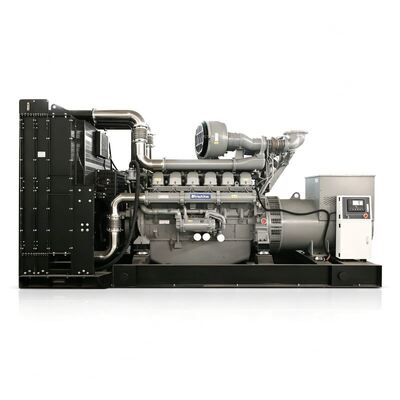

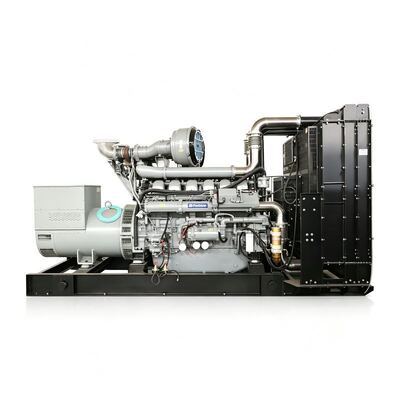

This 1800kW (2250kVA) open-frame diesel generator set features a genuine Perkins 4016TAG3A V-type diesel engine matched with a Stamford brushless synchronous alternator. Designed and manufactured in strict accordance with ISO 8528 power generation industry standards, the unit is mounted on an integrated heavy-duty steel base frame with vibration isolators. It provides stable prime continuous power and emergency standby power for large industrial applications.
| Parameter | Specification |
|---|---|
| Prime Power | 1800kW / 2250kVA |
| Standby Power | 1980kW / 2475kVA |
| Rated Voltage | 400/230V (380/220V, 415/240V customizable) |
| Frequency | 50Hz (60Hz optional) |
| Rated Speed | 1500rpm |
| Phase & Connection | 3 Phase 4 Wires |
| Power Factor | 0.8 Lagging |
| Rated Current | 3240A |
| Structure Type | Open Type (Base Frame Mounted) |
| Standard Controller | Smartgen / Deepsea Control Module |
| Parameter | Specification |
|---|---|
| Model | 4016TAG3A |
| Configuration | 16-Cylinder, Vee 60°, Four-Stroke, Water Cooled |
| Aspiration | Turbocharged & Intercooled |
| Displacement | 61.123 L |
| Governor | Electronic Governing System |
| Starting System | 24V DC Electric Start |
| Fuel Consumption | ~264 L/h @100% full load |
| Emission Standard | EU Stage IIIA / EPA Tier 3 |
| Parameter | Specification |
|---|---|
| Type | Brushless, Self-excited, Single Bearing |
| Winding | 100% Pure Copper |
| Insulation Class | Class H |
| Protection Grade | IP23 |
| Voltage Regulation | ≤±1% |
| Additional Features | Built-in AVR, low harmonic distortion, premium power quality |
| Parameter | Specification |
|---|---|
| Base Frame | Heavy thick steel base, fitted with rubber vibration isolators |
| Overall Dimension (L×W×H) | 5950 × 2450 × 3420 mm |
| Approximate Weight | 15200 kg |
Ideal for large facilities requiring high-power continuous or emergency standby power.
