400kW Silent Type Perkins Diesel Generator Set with Stamford Alternator

Brand Name:	JFP
Model Number:	JFP-400GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Engine:

Perkins

Warranty:

1 Year

Phase:

3 Phase 4 Wire

Controller:

Deepsea/ComAp/Smartgen

Prime Power:

400kW / 500kVA

Standby Power:

440kW / 550kVA

Rated Voltage:

400/230V (Optional: 380/220V, 415/240V)

Frequency:

50Hz (60Hz Customizable)

Rated Speed:

1500rpm

Noise Level:

≤75dB(A) @7 Meters

Fuel Consumption:

~83 L/h @100% Full Load

Overall Dimension:

4250 × 1650 × 2100 Mm

Packaging Details:

Plyfilm or plywood

Product Description

JFP 400kW(500kVA) Silent Type Perkins Diesel Generator Set with Stamford Alternator

Product Overview

This 400kW (500kVA) silent diesel generator set features genuine Perkins diesel engine coupled with Stamford brushless synchronous alternator. Manufactured in strict compliance with ISO 8528 and GB2820 standards, the unit is equipped with a heavy-duty integrated soundproof canopy and provides stable prime power and emergency standby power. Ideal for locations with strict noise control requirements including commercial complexes, hospitals, data centers, industrial parks, and residential areas.

Technical Specifications

Unit General Parameters
Prime Power	400kW / 500kVA
Standby Power	440kW / 550kVA
Rated Voltage	400/230V (Optional: 380/220V, 415/240V)
Frequency	50Hz (60Hz customizable)
Rated Speed	1500rpm
Phase & Connection	3 Phase 4 Wires
Power Factor	0.8 Lagging
Rated Current	722A
Noise Level	≤75dB(A) @7 meters

Perkins Diesel Engine
Engine Model	2506C-E15TAG2
Configuration	6-Cylinder, In-line, Four-Stroke, Water Cooled
Aspiration	Turbocharged & Intercooled
Displacement	15.06 L
Fuel Consumption	~83 L/h @100% full load
Emission Standard	EU Stage IIIA / EPA Tier 3

Stamford Alternator
Type	Brushless, Self-excited, Single Bearing
Winding	100% Pure Copper
Insulation Class	Class H
Protection Grade	IP23
Voltage Regulation	≤±1%

Silent Canopy & Dimensions
Overall Dimensions (L×W×H)	4250 × 1650 × 2100 mm
Approximate Weight	5600 kg
Continuous Running	≥8 hours under full load

Key Features

Premium Brand Combination
Original Perkins engine matched with Stamford alternator for stable performance with global after-sales service network.

Professional Noise Reduction
Multi-layer silent enclosure effectively isolates mechanical vibration and exhaust noise, meeting urban environmental standards.

High-Quality Power Output
Stamford all-copper brushless alternator delivers excellent power quality for sensitive precision equipment.

Comprehensive Protection System
Automatic shutdown protection for low oil pressure, high coolant temperature, overspeed, overload, and emergency stop with fault code display.

Optimized Fuel System
Electronic fuel injection system provides sufficient power output, excellent fuel economy, and strong load capacity.

Outdoor Ready Design
Waterproof, dustproof silent canopy allows direct outdoor placement without dedicated generator room.

Core Functions

Provide continuous prime power and emergency backup power during utility power failure
Automatic start and stop functionality when paired with ATS switch
Real-time monitoring of voltage, frequency, current, engine speed, coolant temperature, oil pressure, and cumulative running hours
Multiple fault alarm and automatic protective shutdown functions
Optional remote monitoring system supporting mobile and computer access
Supports long-term stable continuous operation under rated load

Competitive Advantages

Classic Perkins + Stamford power assembly, highly recognized by global engineering purchasers
Complete global spare parts supply and after-sales service system
Mature large-power silent cabinet technology with outstanding noise control
Stable voltage output with low waveform distortion for data centers and medical facilities
Long maintenance cycle reducing long-term operation and maintenance costs
CE, ISO certification and factory test reports for international bidding and customs clearance

Application Scope

Large factories, industrial parks, data centers, hospitals, shopping malls, hotels, residential communities, construction projects, telecom hub stations, commercial buildings, and other projects requiring low-noise emergency standby power.

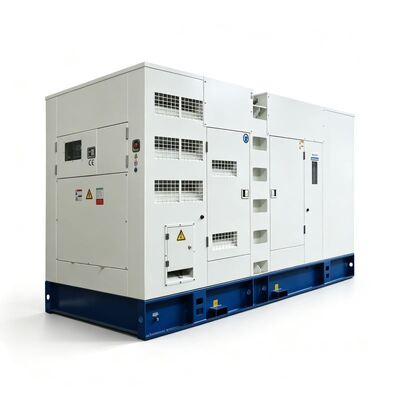

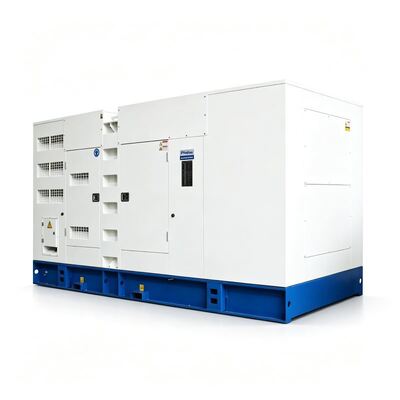

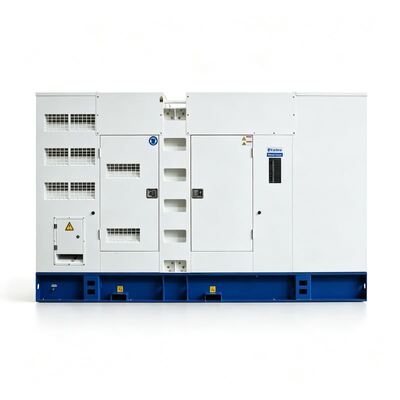

Product Images
