80kW Silent Type Diesel Generator Set with Perkins Engine for Reliable Power Supply

Brand Name:	JFP
Model Number:	JFP-80GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Phase:

3 Phase 4 Wire

Warranty:

1 Year

Controller:

Deepsea/ComAp/Smartgen

Engine:

Perkins

Prime Power:

80kW / 100kVA

Standby Power:

88kW / 110kVA

Rated Frequency:

50Hz (60Hz Customizable)

Rated Voltage:

400/230V (custom Voltages Available)

Phase & Connection:

3 Phase 4 Wire

Rated Speed:

1500rpm

Noise Level:

≤72dB(A) @7 Meters

Gross Weight:

Approx. 1680 Kg

Packaging Details:

Plyfilm or plywood

Product Description

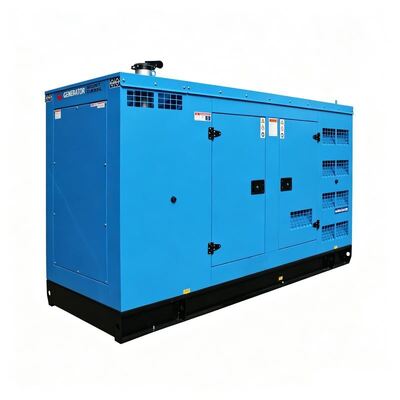

JFP 80kW(100kVA) Perkins Silent Type Diesel Generator Set

This 80kW (100kVA) silent diesel generator set is powered by genuine UK Perkins industrial diesel engine matched with high-efficiency brushless alternator. Equipped with fully enclosed heavy-duty silent canopy, the unit complies strictly with ISO 8528 and CE standards.

It provides stable three-phase AC prime power and emergency standby power. The optimized multi-layer noise reduction structure, rainproof, dustproof and anti-corrosion design enables direct outdoor installation. Widely used in residential districts, commercial complexes, office buildings, hospitals, construction sites, small manufacturing plants and communication stations. Proven Perkins power delivers reliable continuous operation with low vibration and low fuel consumption for noise-sensitive power supply projects.

Main Features

Genuine UK Perkins Original Diesel Engine: Adopts authentic Perkins inline 4-cylinder, four-stroke water-cooled turbocharged intercooled diesel engine with mature fuel injection system and electronic governor. The engine owns sufficient power reserve, strong overload capacity and excellent adaptability to high temperature, high humidity and high altitude environments. Global Perkins after-sales network supports worldwide spare parts supply and maintenance service.
High-Efficiency Brushless Alternator: Self-excited brushless alternator with 100% pure copper winding and built-in high-precision AVR automatic voltage regulator. Low harmonic distortion, fast voltage response and reliable performance. Insulation Class H, protection grade IP23, capable of supplying power for general industrial equipment and partial precision loads.
High-Performance Silent Soundproof Canopy: Heavy-duty galvanized steel canopy filled with flame-retardant multi-layer sound-absorbing materials, matched with large industrial muffler and optimized intake & exhaust silencing channels. Noise level ≤72dB(A) @7 meters. The canopy surface adopts anti-rust coating, with lockable maintenance doors, external emergency stop button, rainproof and dustproof design, suitable for long-term outdoor unattended operation.
Intelligent Digital Control System: Standard SmartGen or Deepsea digital controller. Real-time monitoring of voltage, frequency, coolant temperature, oil pressure, load rate and running hours. Complete automatic alarm and emergency shutdown protection against low oil pressure, high coolant temperature, overspeed and overload. ATS automatic transfer switch optional for unattended automatic power switching.
Integrated Base Frame & Vibration Isolation System: Thickened steel integrated base frame with built-in fuel tank. High-density rubber vibration isolators reduce vibration transmission between power assembly and canopy. Reserved lifting lugs for convenient hoisting, transportation and positioning.
Humanized Maintenance Layout: Large side maintenance doors provide easy access for filter replacement, oil draining and routine inspection. Reasonable component layout simplifies daily maintenance work and reduces labor costs. Standard 24V DC electric starting system ensures reliable startup under low-temperature conditions.

Core Functions

Supply continuous 80kW prime power and 88kW emergency standby power
Real-time operating data monitoring, fault alarm and comprehensive safety protection
Output stable high-quality AC power for lighting, air conditioning, production machinery and office equipment
Support ATS automatic switching: auto start upon mains failure, auto shutdown after grid power recovery
24V DC reliable electric starting system
Built-in fuel tank supports continuous operation; compatible with external extended fuel tank
Optional 4G remote monitoring module for remote data viewing and remote start-stop control
Adapt to long-time standby and medium-duration continuous operation

Technical Specifications

Genset General Parameters
Model	80GF-Silent Perkins
Prime Power	80kW / 100kVA
Standby Power	88kW / 110kVA
Rated Frequency	50Hz (60Hz customizable)
Rated Voltage	400/230V (custom voltages available)
Phase & Connection	3 Phase 4 Wire
Power Factor	0.8 Lagging
Rated Speed	1500rpm
Noise Level	≤72dB(A) @7 meters
Structure Type	Fully Enclosed Silent Canopy Type
Dimension (L×W×H)	2850 × 1150 × 1450 mm
Gross Weight	Approx. 1680 kg
Certifications	ISO9001, CE

Engine Specifications
Engine Brand & Model	Perkins 1106A-70TG1
Structure	Inline 6-cylinder, 4-stroke, Turbocharged & Intercooled, Water-cooled
Displacement	7.0 L
Fuel System	Mechanical Direct Injection
Governor	Electronic governor
Starting System	24V DC Electric Start
Fuel Consumption (100% full load)	205 g/kW*h
Cooling Method	Closed radiator water cooling

Alternator Specifications
Type	Brushless, Self-excited, AVR automatic voltage regulation
Winding	100% Pure Copper Wire
Insulation Class	H
Protection Class	IP23
Voltage Regulation Accuracy	≤ ±1%
Performance	Low THD, applicable for various electrical loads

Control System
Standard	Digital Controller (SmartGen HGM6120N / DSE6120)
Optional	ATS Automatic Transfer Switch, 4G Remote Monitoring Module, Water Jacket Heater, External Fuel Tank

Competitive Advantages

Reliable Genuine Perkins European Engine: Original UK Perkins engine with decades of verified technology, stable performance, abundant global spare parts resources and mature worldwide after-sales service, highly recognized by overseas buyers.

All-in-one Silent Outdoor Solution: Integrated silencing, rainproof and dustproof functions. No need to build dedicated generator room, saving large civil engineering investment, directly deployed outdoors.

Stable Power Output & Wide Load Adaptability: Pure copper alternator realizes steady voltage output, adaptable to mixed loads including resistive and inductive equipment, effectively avoiding unstable power causing equipment malfunction.

Excellent Power Reserve & Strong Environmental Adaptability: Turbocharged intercooled design provides sufficient power reserve, runs stably under high temperature, high altitude and humid coastal environments.

Balanced Fuel Economy & Low Maintenance Cost: Optimized combustion system controls fuel consumption effectively. Standardized spare parts are easy to purchase, reducing long-term operation and maintenance expenditure.

Flexible Customization Options: Support customized voltage, frequency, ATS system, remote monitoring and cold start devices, meeting diversified demands of commercial, industrial and engineering projects.

Typical Application Scenarios

Commercial buildings, residential communities, hospitals, shopping malls, small manufacturing factories, construction sites, communication base stations, water treatment stations, agricultural projects and medium-sized emergency power supply projects.
