| Brand Name: | JFP |
| Model Number: | JFP-16GF |
| MOQ: | 1 |
| Payment Terms: | L/C,T/T |

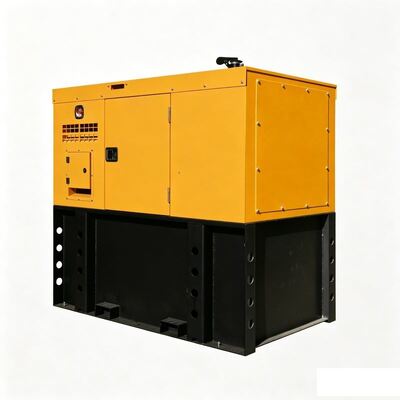

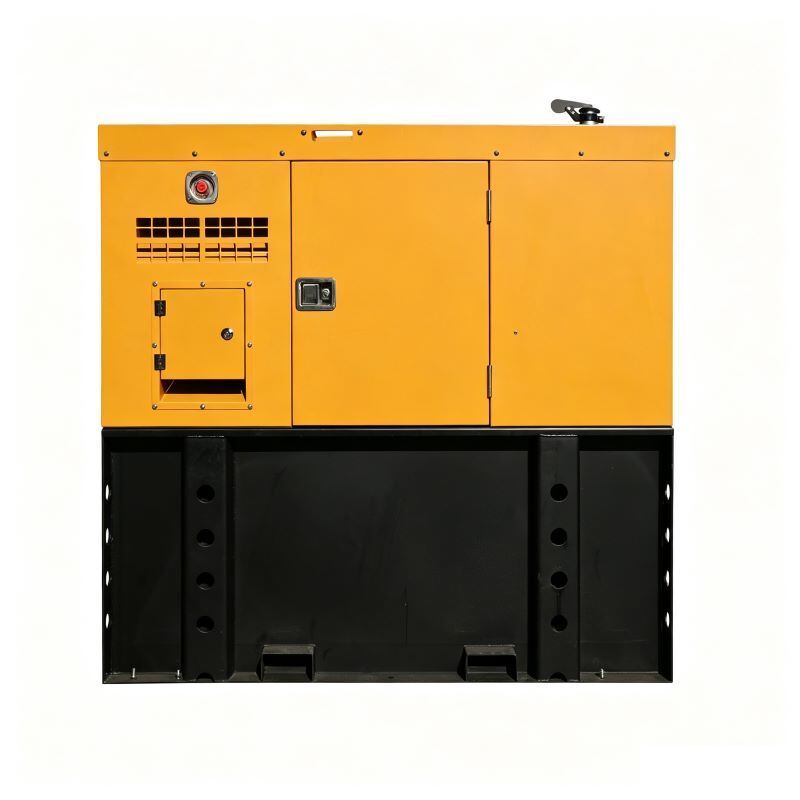

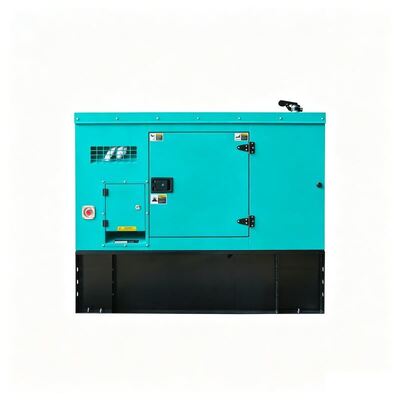

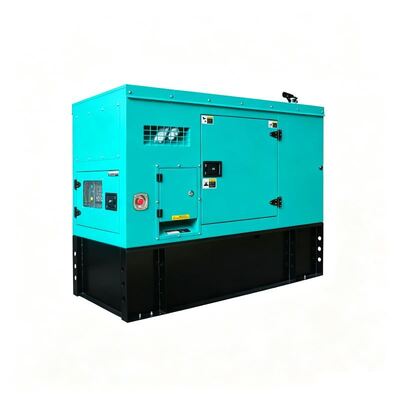

This 16kW (20kVA) silent diesel generator set features a genuine UK Perkins 404A-22G1 inline four-cylinder water-cooled diesel engine paired with the world-renowned French Leroy Somer brushless alternator. The unit comes with a fully enclosed silent canopy and complies with ISO 8528 and CE standards.
This generator set provides stable three-phase AC power for continuous prime power and emergency standby applications. The integrated silent enclosure effectively reduces operational noise, supporting direct outdoor installation without additional noise reduction facilities. Ideal for villas, residential areas, commercial shops, office buildings, communication base stations, small factories, and construction sites. Compact layout ensures convenient transportation and installation, making it an excellent low-noise backup power solution.

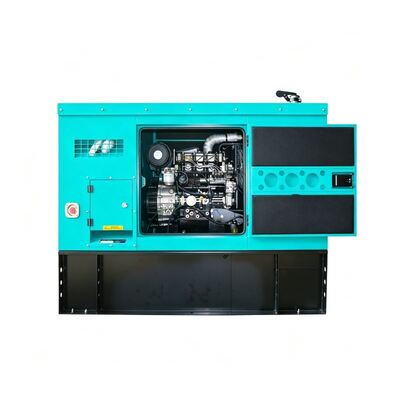

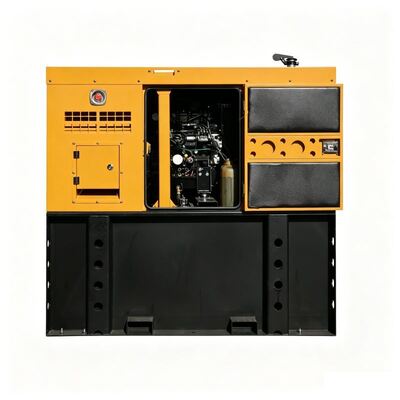

Original Perkins 404A-22G1 four-stroke inline 4-cylinder naturally aspirated water-cooled engine with mechanical indirect injection fuel system and mechanical governor. Mature proven structure ensures low vibration and stable operation. Global Perkins aftersales network guarantees worldwide spare parts supply and maintenance service.
Famous Leroy Somer self-excited brushless alternator with 100% pure copper winding and built-in high-precision AVR automatic voltage regulator. Features low harmonic distortion, rapid voltage response, and outstanding motor starting capability. Insulation Class H, protection grade IP23, fully suitable for office equipment, household appliances, and light industrial sensitive loads.
Thickened galvanized steel canopy with flame-retardant multi-layer sound absorption cotton and internal silencing duct. Noise level ≤72dB(A) @7 meters. Rainproof, dustproof, and anti-corrosion surface treatment. Equipped with lockable maintenance doors, observation window, external emergency stop button, and built-in exhaust silencer. Suitable for long-term outdoor placement.
Standard SmartGen or Deepsea digital controller provides real-time monitoring of voltage, frequency, coolant temperature, oil pressure, running hours, and load rate. Complete automatic alarm and emergency shutdown protection against low oil pressure, high coolant temperature, overspeed, and overload. ATS automatic transfer switch optional for unattended automatic power switching.
Heavy-duty steel base frame equipped with high-density rubber vibration isolators to minimize vibration transmission. Built-in fuel tank supports long continuous operation. Reserved lifting points for convenient hoisting and moving.
Large side maintenance doors allow easy access for filter replacement, oil draining, and routine inspection. Reasonable pipeline layout reduces maintenance difficulty. Standard 12V DC electric starting system ensures reliable startup under normal ambient temperature.
| Genset General Parameters | |
|---|---|
| Model | 16GF-Silent Perkins-Leroy Somer |
| Prime Power | 16kW / 20kVA |
| Standby Power | 17.6kW / 22kVA |
| Rated Frequency | 50Hz (60Hz customizable) |
| Rated Voltage | 400/230V (custom voltages available) |
| Phase & Connection | 3 Phase 4 Wire |
| Power Factor | 0.8 Lagging |
| Rated Speed | 1500rpm |
| Noise Level | ≤72dB(A) @7 meters |
| Structure Type | Silent Soundproof Canopy Type |
| Dimension (L×W×H) | 2010 × 900 × 1130 mm |
| Gross Weight | Approx. 690 kg |
| Certifications | ISO9001, CE |
| Engine Specifications | |
|---|---|
| Engine Brand & Model | Perkins 404A-22G1 |
| Structure | Inline 4-cylinder, 4-stroke, Naturally Aspirated, Water-cooled |
| Displacement | 2.216 L |
| Bore × Stroke | 84 × 100 mm |
| Fuel System | Mechanical Indirect Injection |
| Governor | Mechanical governor |
| Starting System | 12V DC Electric Start |
| Fuel Consumption (100% full load) | 210 g/kW*h |
| Cooling Method | Closed radiator water cooling |
| Alternator Specifications | |
|---|---|
| Brand | Leroy Somer |
| Type | Brushless, Self-excited, AVR automatic voltage regulation |
| Winding | 100% Pure Copper Wire |
| Insulation Class | H |
| Protection Class | IP23 |
| Voltage Regulation Accuracy | ≤ ±1% |
| Performance | Low THD, suitable for conventional and sensitive electrical loads |
| Control System | |
|---|---|
| Standard | Digital Controller (SmartGen HGM6120N / DSE6120) |
| Optional | ATS Automatic Transfer Switch, 4G Remote Monitoring Module, Water Jacket Heater, External Fuel Tank |
Villa residential backup power, commercial stores, office buildings, small factories, construction sites, communication micro base stations, water pump stations, agricultural facilities and small emergency power guarantee projects.
