800kW 1000kVA Cummins Engine Diesel Generator Set with Stamford Alternator for Industrial Power

Product Overview

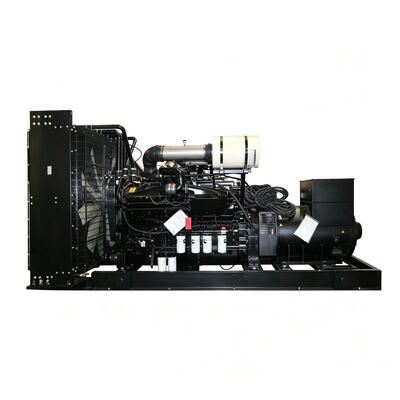

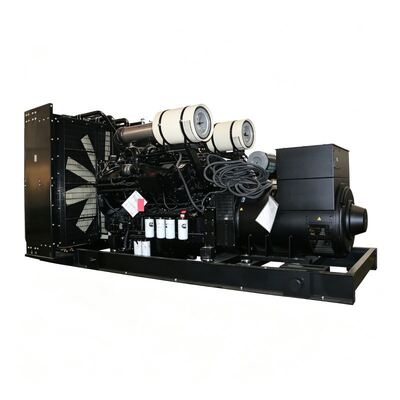

This 800kW (1000kVA) open-frame diesel generator set features a genuine CCEC Chongqing Cummins KTA38-G2A V12 heavy-duty industrial diesel engine, paired with world-renowned Stamford brushless alternator. Manufactured in strict compliance with ISO 8528 and CE standards.

The unit delivers stable three-phase AC power for continuous prime power and emergency standby applications. The open-type design provides excellent heat dissipation performance, making it ideal for installation in ventilated generator rooms. Widely used in large industrial plants, data centers, mining sites, water treatment facilities, commercial complexes, and generator rental projects. Optimized power assembly ensures stable long-duration operation under variable and heavy-load conditions.

Main Features

• Genuine CCEC Cummins Heavy-Duty Power Unit: Original Chongqing Cummins KTA38-G2A, V-type 12-cylinder four-stroke water-cooled engine with turbocharging and air-air intercooling. Features mature PT fuel injection system and electronic governor. Robust cast iron cylinder block provides strong overload capacity and excellent adaptability to high-temperature, high-dust, and high-altitude environments. Global Cummins service network ensures convenient spare parts procurement and maintenance worldwide.
• Premium Stamford Brushless Alternator: World-renowned brushless self-excited alternator with 100% pure copper winding and built-in high-performance AVR automatic voltage regulator. Low harmonic distortion, fast voltage response, and powerful motor starting capability. Insulation Class H, protection grade IP23, effectively protecting servers, medical precision equipment, and automated production lines.
• Open Frame Structure with Superior Heat Dissipation: Extra heavy-duty integrated steel base frame. Open layout prevents heat accumulation during long-hour continuous operation. Equipped with high-efficiency composite rubber vibration isolators to reduce vibration transmission. Lifting lugs provided for convenient hoisting and transportation.
• Intelligent Digital Control Panel: Standard Deepsea or SmartGen high-end digital controller. Real-time monitoring of voltage, frequency, coolant temperature, oil pressure, running hours, and load rate. Complete automatic alarm and emergency shutdown protection against abnormal operating conditions. Optional ATS automatic transfer switch for unattended backup power systems.
• Easy Access for Inspection & Maintenance: All core components are exposed without canopy barriers, allowing efficient routine inspection, oil changes, filter replacement, and unit overhaul, significantly reducing maintenance labor time.
• 24V Reliable Electric Starting System: Standard 24V DC electric starting motor provides stable startup performance under low-temperature harsh conditions. Built-in base fuel tank supports medium continuous operation; external large-capacity fuel tank can be configured as needed.

Core Functions

• Provide continuous prime power supply and emergency standby power supply
• Real-time operation data monitoring, fault alarm and comprehensive safety protection: low oil pressure, high coolant temperature, overspeed, overload, overvoltage protection
• Output high-quality stable power for heavy industrial machinery, lighting systems, communication equipment and precision automation instruments
• Support matching ATS automatic transfer switch: automatic startup after mains power failure, automatic shutdown when grid power recovers
• Support optional 4G remote monitoring module to realize remote data checking and remote start-stop control
• Adapt to long-time continuous operation and frequent load fluctuation working conditions

Technical Specifications

Competitive Advantages

• Globally Recognized Classic Premium Brand Combination: Cummins engine + Stamford alternator is a worldwide accepted high-end matching scheme with perfect power matching and coordinated stable performance. Both brands feature mature global service and spare parts supply networks.
• Excellent Power Output Quality: Stamford alternator delivers stable voltage with low harmonic distortion, reducing equipment failure risks caused by poor power quality, suitable for all precision and sensitive loads.
• Efficient Heat Dissipation & Low Overheating Failure Risk: Open-type layout eliminates heat accumulation during long-hour continuous operation, effectively reducing overheating faults for 24/7 operation.
• Lower Maintenance Cost & High Service Efficiency: No silent canopy barrier allows rapid inspection and maintenance, cutting regular maintenance labor costs.
• Outstanding Cost Competitiveness: Without silent enclosure, the unit offers significant price advantage compared to silent versions. Optimal solution for projects with dedicated ventilated generator rooms.
• Rich Customization Capacity: Supports customized voltage, frequency, ATS system, remote monitoring, cold start heating device, and external fuel supply systems. Ideal for factory fixed power supply, large industrial projects, and heavy-duty generator leasing business.

Typical Application Scenarios

Large industrial manufacturing plants, mining projects, large construction sites, comprehensive data centers, water supply & sewage treatment plants, cold storage logistics parks, large commercial complexes, generator leasing companies, and industrial facilities with independent generator rooms.
