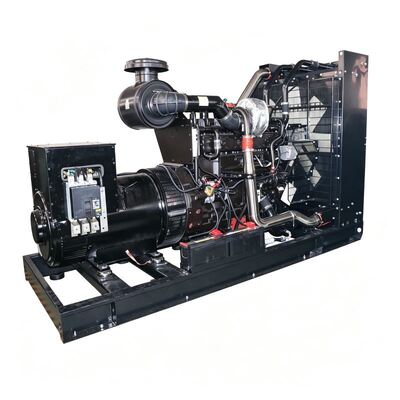

500kW 625kVA Open Type Cummins Heavy Duty Diesel Genset For Industrial Power Supply

This 500kW (625kVA) open type heavy-duty diesel genset  is powered by genuine CCEC Cummins industrial heavy-duty diesel engine, matched with high-performance 100% pure copper brushless alternator. Adopting classic open-frame layout, this large-power industrial genset boasts abundant power reserve, excellent impact load resistance, barrier-free heat dissipation and reliable long-duration continuous power output. It is engineered for heavy industrial prime power supply and critical emergency standby power applications.

Complying with CE, ISO9001 and ISO8528 international standards, the unit is widely deployed in large manufacturing plants, open-pit mines, petrochemical facilities, large-scale infrastructure projects, data center parks, remote off-grid power stations and municipal key projects. Optional ATS automatic transfer switch, remote monitoring system and multi-unit parallel operation function support intelligent unattended power supply, acting as a trusted core power solution for global large industrial projects.

• Genuine Cummins Heavy-Duty Industrial Engine Equipped with authentic Cummins KTA19-G8 six-cylinder inline, water-cooled, turbocharged & intercooled direct injection diesel engine. Built with robust cast iron cylinder block and optimized fuel combustion system, the engine delivers massive power reserve, fast transient load response, stable fuel consumption and outstanding durability under variable heavy-load conditions.
• High-Performance Pure Copper Brushless Alternator Fitted with industrial-grade full copper brushless alternator with Class H high-temperature insulation and IP23 protection grade. Equipped with high-precision AVR automatic voltage regulator to generate low-THD pure sine wave electricity.
• Open Frame Optimized for Maximum Heat Dissipation The open structural design fully exposes radiators, engine body and air circulation channels without obstruction. It effectively eliminates heat accumulation and overheating risks when the unit runs at full load 24/7.
• Industrial Intelligent Full Protection Control System Configured with Smartgen or DeepSea high-end digital controller, realizing real-time monitoring of voltage, current, frequency, coolant temperature, oil pressure, rotation speed and cumulative running hours.
• Reinforced Integrated Base & Vibration Damping System Thickened integral steel base with built-in large-capacity fuel tank and multi-point high-strength rubber shock absorbers suppress strong mechanical vibration during high-power operation and avoid resonance.

• 24V DC Reliable Electric Start: Standard 24V electric starting system ensures quick and stable startup under low temperature, high humidity and harsh industrial surroundings.
• Comprehensive Safety Protection: Automatic alarm and emergency shutdown triggered by overload, overvoltage, undervoltage, low oil pressure, high temperature and overspeed faults to safeguard the whole unit.
• ATS Automatic Switching (Optional): Auto-start upon mains failure and delayed shutdown after grid recovery, realizing fully unattended emergency backup power supply.
• 24/7 Full-Load Continuous Operation: Excellent heat dissipation efficiency and stable power endurance support long-hour full-load operation to meet prime power demand of large industrial zones.
• Remote Monitoring & Parallel Operation (Optional): Supports remote real-time data viewing, start-stop control, fault record query and multi-unit parallel operation to expand power capacity for large power station projects.

• Prime Power: 500kW / 625kVA
• Standby Power: 550kW / 688kVA
• Power Factor: 0.8 (Lagging)
• Phase System: 3 Phase 4 Wire
• Rated Voltage: 400/230V (50Hz) / 220/127V (60Hz Optional)
• Rated Frequency: 50Hz / 60Hz Customizable
• Rated Speed: 1500RPM / 1800RPM
• Unit Type: Open Type / Open Frame Industrial Genset
• Certification: CE, ISO9001, ISO8528

• Engine Model: KTA19-G8
• Engine Type: 6-Cylinder, Inline, Water-Cooled, Turbocharged & Intercooled, Direct Injection Diesel Engine
• Starting System: 24V DC Electric Start
• Fuel Type: Commercial Diesel
• Operation Mode: Large industrial long-term heavy-duty continuous & standby power

• Type: Brushless, Self-Excited, AVR Automatic Voltage Regulation
• Insulation Class: H
• Protection Class: IP23
• Winding Material: 100% Pure Copper
• Power Quality: Ultra-Low THD Clean Sine Wave Output

• Controller: Smartgen HGM6120N / DeepSea DSE6120
• Optional Configuration: ATS/AMF automatic system, remote monitoring module, parallel operation system

• Globally Recognized Cummins Heavy-Duty Power Platform
• Outstanding Continuous Heavy-Load Stability
• Stable, High-Quality Industrial Power
• Easy Maintenance & High Cost Efficiency
• Global After-Sales Support System
• Rigorous Factory Performance Testing
• Diversified Customization Options

This 500kW open type Cummins diesel generator set targets large-scale heavy-duty industrial power supply. It is widely applied for open-pit mining, petrochemical projects, large manufacturing factories, infrastructure construction, data center standby power, remote off-grid power stations and municipal major engineering emergency power supply.
