Three Phase Silent Type Cummins Diesel Genset 400kW 500kVA With Stamford Alternator

Brand Name:	JFP
Model Number:	JFP-400GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Prime Power:

400kW / 500kVA

Standby Power:

440kW / 550kVA

Rated Frequency:

50Hz (60Hz Customizable)

Rated Voltage:

400/230V (custom Voltages Available)

Noise Level:

≤72dB(A) @7 Meters

Gross Weight:

Approx. 6100 Kg

Packaging Details:

Plyfilm or plywood

Highlight:

Cummins Diesel Genset 400kW

Three Phase Cummins Diesel Genset

Silent Diesel Genset 500kVA

Product Description

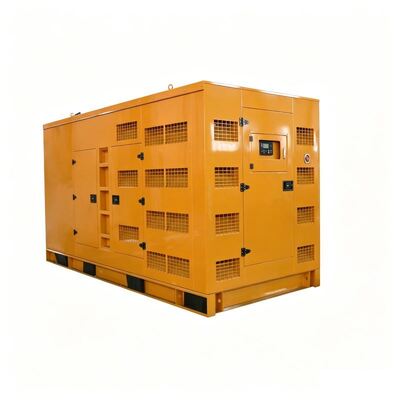

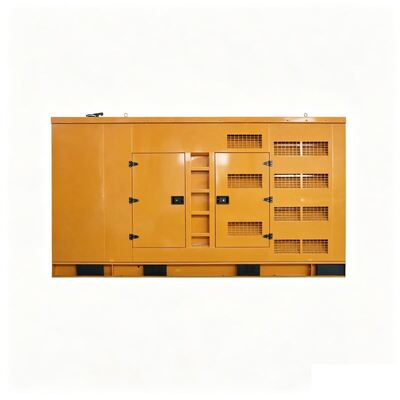

JFP 400kW(500kVA) Cummins Silent Type Diesel Generator Set With Stamford Alternator

Product Overview

This 400kW (500kVA) silent diesel generator set features a genuine DCEC Cummins 6ZTAA13-G4 inline six-cylinder heavy-duty industrial diesel engine, paired with the world-renowned Stamford brushless alternator. The unit is equipped with a heavy-duty fully enclosed silent canopy and strictly complies with ISO 8528 and CE standards.

Designed to supply stable three-phase AC power for continuous prime power and emergency standby applications, the optimized noise reduction enclosure effectively suppresses operating noise. This makes it ideal for noise-restricted locations including large hospitals, commercial complexes, hotels, residential districts, office buildings, industrial parks, data centers, and sewage treatment plants.

Main Features

Genuine Dongfeng Cummins Heavy-Duty Power Core: Original DCEC 6ZTAA13-G4 four-stroke water-cooled engine with electronic governor. Features robust cast iron construction, strong overload capacity, and excellent environmental adaptability.
High-Grade Stamford Brushless Alternator: Famous Stamford brushless self-excited alternator with 100% pure copper winding and built-in AVR automatic voltage regulator. Insulation Class H, protection grade IP23.
High-Performance Silent Soundproof Canopy: Galvanized anti-corrosion steel canopy with multi-layer fire-retardant sound absorption material. Noise level ≤72dB(A) @7 meters.
Intelligent Digital Control System: Standard SmartGen or Deepsea digital controller with real-time monitoring and complete alarm protection systems.
Integrated Base Frame & Vibration Isolation: Extra heavy steel base frame with built-in fuel tank and high-density rubber vibration dampers.
Humanized Maintenance Layout: Large lockable maintenance access doors for convenient daily inspection and routine maintenance.

Core Functions

Provide continuous prime power supply and emergency standby power
Real-time operation monitoring with comprehensive safety protection systems
Output stable high-quality power for industrial machinery, lighting, communication facilities, and precision instruments
Support ATS linkage function for automatic startup and shutdown
24V DC electric starting system ensures reliable operation in low-temperature environments
Built-in base fuel tank supports long-hour continuous operation
Optional 4G remote monitoring module for remote data access and control

Technical Specifications

Parameter	Specification
Model	400GF-Silent Cummins-Stamford
Prime Power	400kW / 500kVA
Standby Power	440kW / 550kVA
Rated Frequency	50Hz (60Hz customizable)
Rated Voltage	400/230V (custom voltages available)
Phase & Connection	3 Phase 4 Wire
Power Factor	0.8 Lagging
Rated Speed	1500rpm
Noise Level	≤72dB(A) @7 meters
Dimensions (L×W×H)	5000 × 1650 × 2350 mm
Gross Weight	Approx. 6100 kg
Engine Model	DCEC Cummins 6ZTAA13-G4
Displacement	13.0 L
Fuel Consumption (100% load)	200 g/kW*h

Competitive Advantages

Globally recognized classic brand combination (Cummins + Stamford)
Premium power output quality with low harmonic distortion
Excellent outdoor and noise reduction performance
Superior economic performance and long service life
Flexible customization options for various applications
Comprehensive multi-layer safety protection systems

Application Scenarios

Large hospitals, commercial shopping malls, five-star hotels, office buildings, residential communities, large industrial manufacturing factories, data centers, communication base stations, water supply & sewage treatment plants, cold storage facilities, and large construction projects.
