150kW 187.5kVA Cummins Diesel Genset Open Type Industrial Diesel Power Generator

Brand Name:	JFP
Model Number:	JFP-132GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Prime Power:

150kW / 187.5kVA

Standby Power:

165kW / 206kVA

Power Factor:

0.8 (Lagging)

Phase System:

3 Phase 4 Wire

Rated Voltage:

400/230V (50Hz) / 220/127V (60Hz Optional)

Rated Frequency:

50Hz / 60Hz Customizable

Rated Speed:

1500RPM / 1800RPM

Engine Model:

6CTA8.3-GM

Packaging Details:

Plyfilm or plywood

Highlight:

Cummins Diesel Genset Open Type

187.5kVA Cummins Diesel Genset

150kW Industrial Diesel Power Generator

Product Description

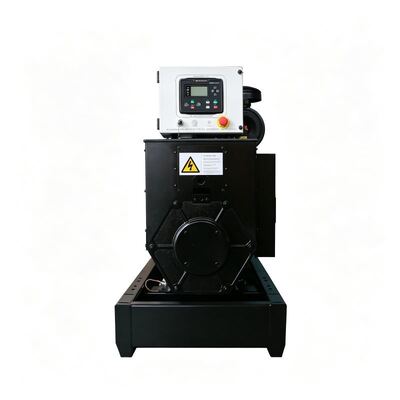

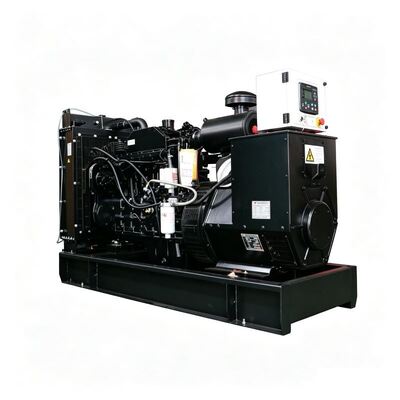

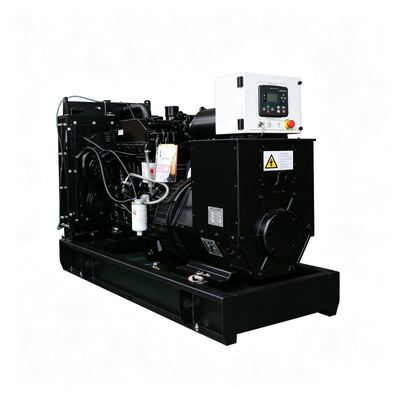

150kW (187.5kVA) Open Type Cummins Diesel Generator Set

This 150kW (187.5kVA) open type diesel generator set is powered by a genuine Cummins industrial diesel engine and equipped with a high-efficiency brushless alternator. Adopting a professional open-frame structure without soundproof canopy, this heavy-duty industrial genset features excellent heat dissipation performance, strong overload capacity and extremely high operational stability.

Product Overview

This industrial generator set is specially designed for long-term continuous prime power and heavy-load standby power supply in industrial scenarios. Fully compliant with CE, ISO9001 and ISO8528 international standards, the unit delivers reliable power output, low fuel consumption and durable performance. It is widely applicable for factory machine rooms, industrial parks, large construction sites, mining projects, water treatment plants and remote off-grid areas.

Core Features

Genuine Cummins Heavy-Duty Industrial Engine
Equipped with authentic Cummins 6-cylinder inline, water-cooled, turbocharged and direct-injection diesel engine with mature heavy-duty industrial technology. Supported by Cummins global after-sales service network.
High-Efficiency Brushless Alternator
Adopts industrial-grade pure copper brushless alternator with Class H insulation and IP23 protection grade. Built-in high-precision AVR automatic voltage regulator ensures ultra-stable pure sine wave power output.
Open Frame Structure for Maximum Heat Dissipation
The standard open-type frame fully exposes the engine, radiator and air circulation system, achieving unobstructed natural ventilation and efficient heat dissipation.
Intelligent Industrial Control System
Configured with industrial-grade Smartgen or DeepSea digital controller. Monitors voltage, current, frequency, coolant temperature, oil pressure, rotating speed and running hours in real time.
Heavy-Duty Integrated Base & Vibration Reduction
Thickened integral steel base with built-in large-capacity fuel tank and high-strength rubber shock absorbers effectively reduces mechanical vibration during operation.

Main Functions

Reliable 24V Electric Start: Standard 24V DC electric starting system ensures fast and reliable startup in harsh industrial environments.
Full-Range Safety Protection: Automatic alarm and emergency shutdown against low oil pressure, high water temperature, overload, and other faults.
ATS Automatic Switching (Optional): Auto start on mains failure and auto delay stop after power recovery, realizing fully unattended emergency backup power supply.
24/7 Heavy-Duty Continuous Operation: Superior heat dissipation performance and strong power endurance support long-term full-load prime power operation.
Remote Monitoring & Parallel Operation (Optional): Supports remote real-time data monitoring, start/stop control, and multi-unit parallel operation.

Technical Specifications

Parameter Category	Specifications
Genset General Parameters	Prime Power: 150kW / 187.5kVA Standby Power: 165kW / 206kVA Power Factor: 0.8 (Lagging) Phase System: 3 Phase 4 Wire Rated Voltage: 400/230V (50Hz) Rated Frequency: 50Hz / 60Hz Customizable Rated Speed: 1500RPM / 1800RPM Certification: CE, ISO9001, ISO8528
Engine Parameters	Engine Model: 6CTA8.3-GM Engine Type: 6-Cylinder, Inline, Water-Cooled, Turbocharged Starting System: 24V DC Electric Start Fuel Type: Commercial Diesel
Alternator Parameters	Type: Brushless, Self-Excited, AVR Automatic Voltage Regulation Insulation Class: H Protection Class: IP23 Winding Material: 100% Pure Copper
Control System	Controller: Smartgen HGM6120N / DeepSea DSE6120 Optional: ATS/AMF automatic system, remote monitoring, parallel operation

Competitive Advantages

Genuine Cummins Heavy-Duty Power Core: Original Cummins 6CTA series heavy-duty engine with strong power reserve and excellent load adaptability.
Excellent Continuous Operation Stability: Open-type unrestricted heat dissipation design solves heat accumulation problem during long-term full-load operation.
High-Quality Stable Power Output: High-performance pure copper brushless alternator delivers ultra-stable voltage and low-distortion current.
Low Maintenance & High Cost-Performance: Open frame structure allows direct visual inspection and quick access to all core components.
Complete Global After-Sales System: Cummins' global service network and complete spare parts supply channels.
Strict Industrial-Grade Quality Control: Every unit passes 100% full-load aging test, performance calibration and safety inspection.
Strong Customization Adaptability: Supports multi-country voltage and frequency customization with optional functions.

Application Scenarios

This 150kW open type Cummins diesel generator set is specially designed for heavy-duty industrial power supply scenarios. It is widely used for industrial factory fixed machine rooms, industrial parks, large construction sites, mining areas, water treatment projects, farm irrigation systems, remote off-grid areas and large commercial & municipal emergency standby power projects.
