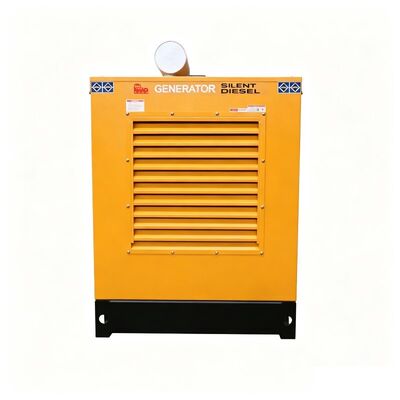

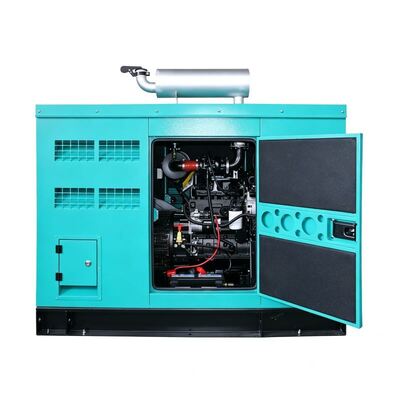

Silent Cummins 50kw Diesel Generator 3 Phase 4 Wire Industrial Diesel Generator Set

JFP 50kW (62.5kVA) Silent Cummins Diesel Generator Set with Leroy Somer Alternator

This 50kW (62.5kVA) silent diesel generator set adopts genuine Cummins industrial diesel engine and original French Leroy Somer brushless alternator, equipped with a heavy-duty integrated soundproof canopy. As a high-end industrial power combination, Cummins power matched with Leroy Somer alternator delivers ultra-stable power quality, higher efficiency and stronger overload capacity.

Suitable for both prime continuous power and standby emergency power, this low-noise genset is widely used for hospitals, commercial complexes, residential communities, telecom base stations, industrial factories and noise-sensitive urban projects. Fully compliant with CE, ISO9001 and ISO8528 standards. Optional ATS automatic transfer switch enables fully unattended emergency power supply, which is a premium reliable power solution for high-standard global engineering projects.

• Genuine Cummins Industrial Diesel Engine
  Equipped with authentic Cummins 4-cylinder inline, water-cooled, turbocharged diesel engine (4BTA3.9-G2). It features mature industrial technology, strong power reserve, fast dynamic load response, low fuel consumption and low emissions. With global after-sales service network and universal spare parts supply, the engine supports long-term continuous operation with ultra-low failure rate.
• Original Leroy Somer French Premium Alternator
  Adopts world-famous French Leroy Somer pure copper brushless alternator, H-class insulation and IP23 protection grade. Equipped with high-precision AVR automatic voltage regulation system, it provides ultra-low distortion pure sine wave power. Compared with ordinary alternators, Leroy Somer alternator has stronger motor starting capability, better voltage stability and higher power efficiency, perfectly protecting high-precision medical, communication and industrial equipment.
• Heavy-Duty Low-Noise Silent Canopy
  The thickened galvanized steel canopy is treated with anti-rust and anti-corrosion paint, filled with high-density flame-retardant sound-absorbing cotton and matched with large industrial muffler and optimized air duct structure. The operating noise is controlled within 68–70dB(A) at 7 meters. The canopy integrates waterproof, dustproof and rainproof functions, adapting to long-term outdoor installation and urban environmental protection noise limit scenarios.
• Intelligent Full Protection Control System
  Configured with industrial-grade Smartgen or DeepSea intelligent digital controller. It monitors voltage, current, frequency, coolant temperature, oil pressure, rotation speed and running hours in real time. Built-in complete fault alarm and automatic shutdown protection system ensures safe and stable operation of the unit.
• Integrated Base & Vibration Reduction Structure
  Heavy-duty integral steel base with built-in fuel tank and high-strength rubber shock absorbers effectively reduces operation vibration and secondary noise. The integrated structure requires no complex foundation construction, convenient for transportation, hoisting and on-site installation.

• Reliable 24V Electric Start: Standard 24V DC electric starting system ensures fast and stable startup in low-temperature and harsh working environments.
• Full-Range Safety Protection: Automatic alarm and shutdown for low oil pressure, high water temperature, overload, over-voltage, under-voltage and overspeed faults to avoid unit damage.
• ATS Automatic Switching (Optional): Automatically starts when mains power fails and shuts down with delay after mains power recovery, realizing unattended intelligent emergency power supply.
• 24/7 Continuous Industrial Operation: Supports long-time stable prime power operation for off-grid factories, remote areas and continuous production projects.
• Remote Monitoring & Control (Optional): Supports remote real-time data viewing, start/stop operation and fault information push via mobile and computer terminals.

• Prime Power: 50kW / 62.5kVA
• Standby Power: 55kW / 68.75kVA
• Power Factor: 0.8 (Lagging)
• Phase System: 3 Phase 4 Wire
• Rated Voltage: 400/230V (50Hz) / 220/127V (60Hz Optional)
• Rated Frequency: 50Hz / 60Hz Customizable
• Rated Speed: 1500RPM / 1800RPM
• Unit Type: Silent / Soundproof Canopy Type
• Noise Level: ≤70dB(A) @ 7m
• Certification: CE, ISO9001, ISO8528

• Engine Model: 4BTA3.9-G2
• Engine Type: 4-Cylinder, Inline, Water-Cooled, Turbocharged, Direct Injection Diesel Engine
• Starting System: 24V DC Electric Start
• Fuel Type: Commercial Diesel
• Fuel Consumption: Low fuel consumption for long-term industrial operation

• Brand: Original Leroy Somer (France)
• Type: Brushless, Self-Excited, AVR Automatic Voltage Regulation
• Insulation Class: H
• Protection Class: IP23
• Winding: 100% Pure Copper, Ultra-Low THD Power Output

• Controller: Smartgen HGM6120N / DeepSea DSE6120
• Optional Functions: ATS/AMF automatic system, remote monitoring module, parallel operation system

• High-End Global Famous Combination: Cummins engine + French Leroy Somer alternator is a top-tier industrial power matching scheme, widely adopted in high-standard medical, communication, industrial and government projects, with extremely high global reputation and customer trust.
• Superior Power Quality & Overload Capacity: Leroy Somer premium alternator features more stable voltage regulation, lower harmonic distortion and stronger motor starting ability than conventional alternators, ensuring safe operation of precision and sensitive equipment.
• Higher Operation Efficiency & Durability: Optimized Cummins fuel economy design reduces daily operation cost; brushless Leroy Somer structure requires almost no maintenance, extending service life and reducing long-term operating expenses.
• Urban Low-Noise Environmental Design: Professional silent canopy meets strict urban noise emission standards, available for residential areas, hospitals, schools and commercial zones where ordinary open-type units cannot be installed.
• Complete Global After-Sales System: Both Cummins and Leroy Somer have worldwide official service networks and spare parts supply channels, ensuring fast technical support and after-sales service for global high-end projects.
• Strict Industrial Grade Testing: Every unit passes 100% full-load aging test and precision performance calibration before delivery, ensuring stable output and low failure rate for long-term industrial use.
• Strong Customization Adaptability: Supports multi-country voltage and frequency customization, as well as ATS automatic switching, remote monitoring and parallel system configuration to meet diverse high-standard project requirements.

This 50kW silent Cummins & Leroy Somer generator set is specially designed for high-quality power demand scenarios. It is widely used for hospital emergency power, telecom base stations, data rooms, high-end commercial buildings, residential communities, industrial factories, school facilities and key engineering standby & continuous power supply projects.
