| Brand Name: | JFP |
| Model Number: | JFP-150GF |
| MOQ: | 1 |
| Payment Terms: | L/C,T/T |

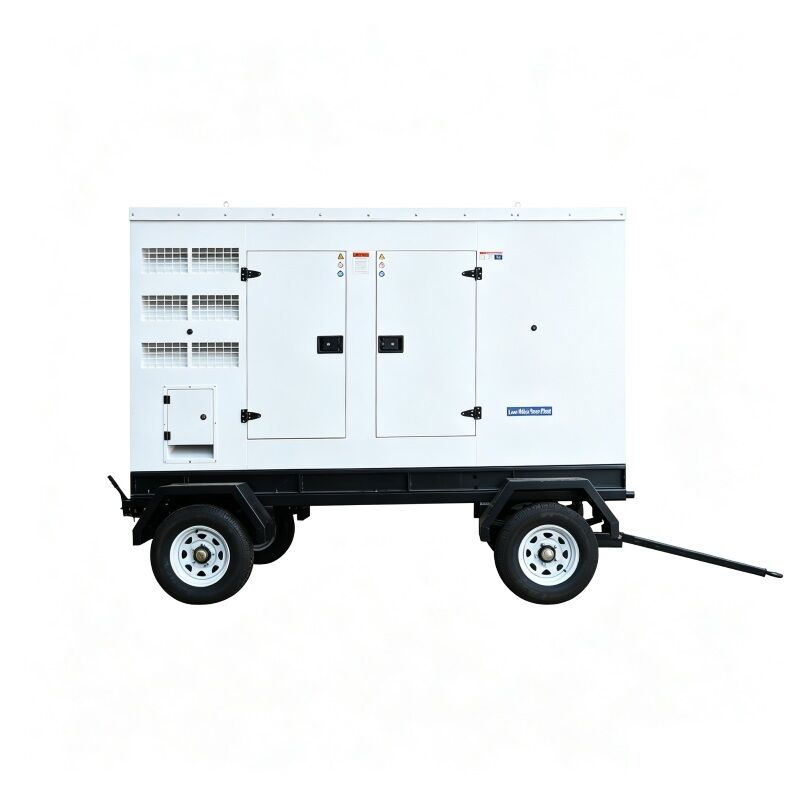

This 150kW (187.5kVA) mobile trailer diesel generator set adopts DCEC Cummins 6CTA8.3-G2 engine matched with Nidec Leroy-Somer LSA42.3 brushless alternator, complying with ISO 8528 standards. Equipped with heavy-duty mobile trailer chassis, the unit can be quickly relocated by tractor without fixed foundation. It supplies reliable continuous power and emergency standby power for construction sites, road engineering, mining, field operation, disaster relief and temporary projects requiring frequent transfer.
1. 60Hz/440V specification can be customized upon request.
2. Please confirm power definition: PRIME POWER or STANDBY POWER before order.
| Model | JFP-150GF |
| Prime Power (PRP) | 150 kW / 187.5 kVA |
| Standby Power (ESP) | 165 kW / 206.25 kVA |
| Rated Voltage | 400V / 230V, 3P4W Star Connection |
| Rated Frequency | 50 Hz |
| Rated Speed | 1500 rpm |
| Power Factor | 0.8 (Lagging) |
| Rated Line Current | 270A |
| Brand & Model | DCEC Cummins 6CTA8.3-G2 |
| Type | 6-cylinder In-line, 4-stroke, Water-cooled, Direct Injection |
| Aspiration | Turbocharged & Air-to-Air Charge Cooled |
| Bore * Stroke | 114 mm × 135 mm |
| Displacement | 8.3 L |
| Starting System | DC 24V Electrical Start |
| Fuel Consumption (1500rpm) | 212 g/kW*h |
| Brand | Leroy-Somer |
| Type | Brushless, Self-excited, Rotating Field, Single Bearing |
| Rated Power | Prime: 187.5 kVA; Standby: 206.25 kVA |
| Insulation Class | H |
| Protection Grade | IP23 |
| Brand | Deepsea |
