Open Type Diesel Generator Set

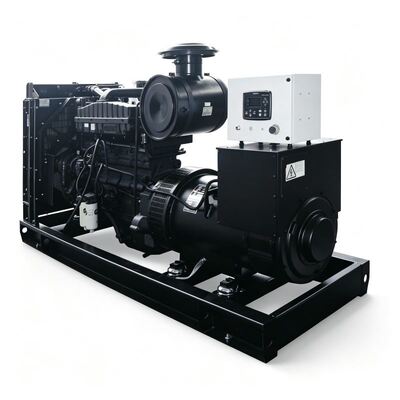

300kW Cummins Open Type Diesel Generator Set

All Category

Open Type Diesel Generator Set

Diesel Generator with ATS

Ms. Alice

sales@jfpower-genset.com

+86-13305162218

Chat Now

300kW Cummins Open Type Diesel Generator Set

Brand Name:	JFP
Model Number:	JFP-300GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Engine:

Cummins

Type:

Open Type

Phase:

3 Phase 4 Wire

Warranty:

1 Year

Controller:

Deepsea/ComAp/Smartgen

Prime Power:

300kW / 375kVA

Standby Power:

330kW / 413kVA

Frequency:

50Hz / 60Hz Optional

Rotational Speed:

1500RPM(50Hz) / 1800RPM(60Hz)

Rated Voltage:

400V, Custom High-voltage Optional

Cooling Method:

Water-cooled

Packaging Details:

Plyfilm or plywood

Highlight:

300kW Open Type Diesel Generator Set

Open Type Diesel Generator Set 3 Phase

300kW Cummins Diesel Generator Set

Product Description

JFP 300kw Cummins Open Type Diesel Generator Set

This 300kW open-frame diesel generator set is driven by genuine Cummins heavy-duty industrial diesel engine. Adopting open-type structure, the unit features excellent heat dissipation performance and convenient maintenance access. It provides stable and reliable power output for factories, construction sites, mining projects and commercial complexes, serving as prime power for off-grid locations or emergency standby power when utility grid fails.

Main Features

300kW prime power output, strong overload capacity for long-time heavy-duty continuous operation
Original Cummins water-cooled diesel engine, mature reliable performance, global spare-parts and after-sales support
100% copper brushless alternator, H-class insulation, low temperature rise, high efficiency
Open-type design, great heat dissipation, easy inspection, fault check and component replacement
3-phase 4-wire output, 50Hz / 60Hz optional, standard 400V, custom high-voltage available
Intelligent digital controller, real-time monitor voltage, current, frequency, oil pressure, water temperature, running hours
Full-range protection: over-voltage, under-voltage, over-current, short-circuit, overspeed, low oil pressure, high-temperature alarm & auto shutdown
24V DC electric starting system; optional ATS auto transfer switch, AMF function, parallel cabinet
Heavy-duty base frame fitted with vibration isolators to reduce mechanical vibration
ISO & CE certified, suitable for 24/7 non-stop industrial working
Optional upgrade: silent canopy, container type, mobile trailer, large external fuel tank

Technical Specifications

Item	Parameter
Prime Power	300kW / 375kVA
Standby Power	330kW / 413kVA
Engine Brand	Cummins Heavy-duty Diesel Engine
Frequency	50Hz / 60Hz Optional
Rotational Speed	1500RPM(50Hz) / 1800RPM(60Hz)
Rated Voltage	400V, custom high-voltage optional
Phase & Wire	3 Phase 4 Wire
Cooling Method	Water-cooled
Structure	Open-Type
Starting Mode	24V DC Electric Start
Alternator	100% Copper Brushless Alternator
Control System	Digital controller with full-function protection
Optional	ATS, AMF system, parallel cabinet, silent / container / trailer modification
Application	Factory, construction site, mining, commercial building prime & standby power

Competitive Advantages

Cummins original engine enjoys worldwide service network, stable quality and easy spare-parts supply
Open-frame structure brings outstanding heat dissipation, simple daily maintenance and lower maintenance cost
100% copper alternator guarantees high efficiency and long service life under variable load conditions
Support high-voltage customization to reduce power transmission loss for large-area sites
Complete multi-protection system effectively prevents unit damage caused by abnormal working status
Multiple optional configurations, flexible to be modified into silent or container-type according to site demands

Application Scenarios

Manufacturing factories, engineering construction sites, mining sites, commercial complexes, hospitals, remote off-grid areas, industrial park emergency standby power supply.
