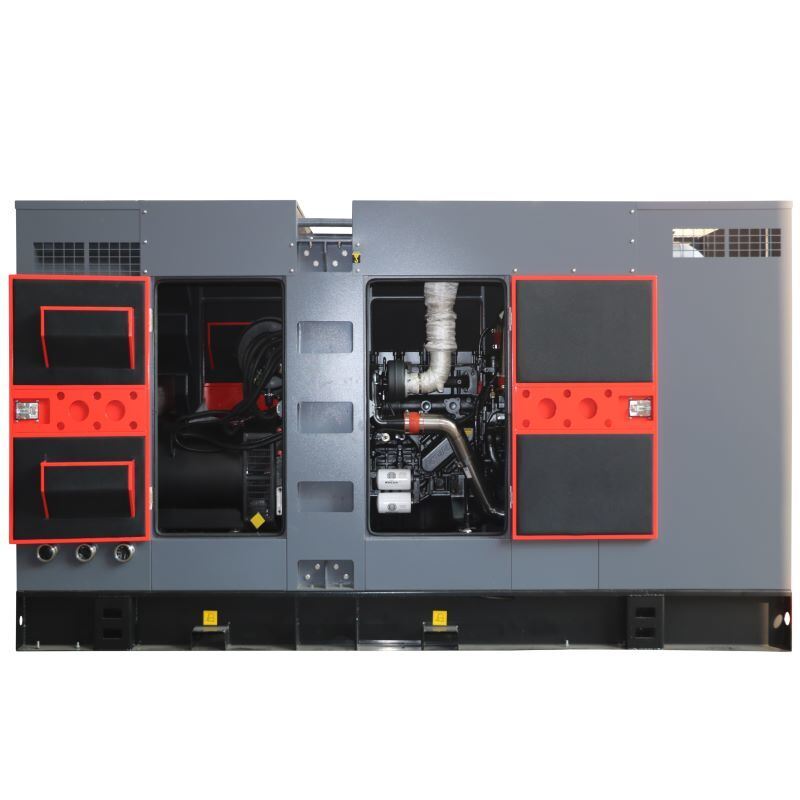

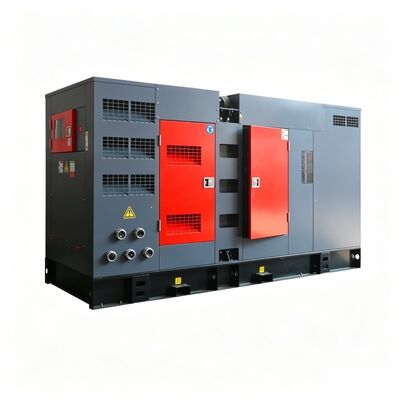

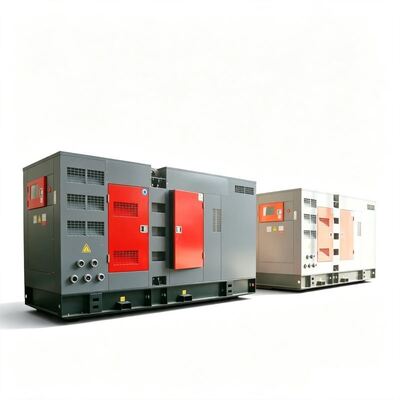

600kW Silent Canopy Diesel Generator

This 600kW (750kVA) high-power silent diesel generator set is engineered for heavy-duty emergency and standby electrical power applications. Featuring an industrial water-cooled diesel engine, all-copper brushless alternator, and fully enclosed silent canopy with optional ATS automatic transfer switch, this unit complies with ISO 8528 international genset standards. It delivers continuous stable power for large factories, data centers, commercial complexes, hospitals, mining sites, and municipal projects where power reliability and noise control are essential.

• Heavy-Duty Water-Cooled Industrial Diesel Engine: 4-stroke water-cooled turbocharged intercooled engine with electronic fuel injection. Features large power reserve, strong overload resistance, low fuel consumption, and capability for long-duration heavy-load continuous operation. Standard 24V DC electric auto-start system ensures fast response during mains power failure with good adaptability to high-temperature, dusty harsh working conditions.
• High-Power All-Copper Brushless Alternator: Class H insulation grade, IP23 protection, and low voltage distortion rate. Standard 400/230V 3-phase 4-wire 50Hz output (60Hz customizable). Provides clean, stable electrical power to protect large industrial equipment, precision instruments, and critical loads from voltage fluctuation damage.
• Heavy-Duty Silent Rain-Proof Canopy: All-weather sealed anti-corrosion steel canopy filled with multi-layer high-density sound-absorbing cotton and large-volume multi-stage industrial silencer. Operating noise ≤75dB(A) @7 m. Independent air intake and exhaust heat-dissipation duct prevents overheating under full-load long-time running. The unit can be placed outdoors directly without dedicated generator room.
• ATS Automatic Transfer System (Optional): ATS cabinet enables fully unattended emergency power supply. Automatically starts the genset within 8-10 seconds when grid power fails; automatically switches load back to mains power and shuts down the generator once utility power recovers. Optional remote cloud monitoring module for real-time data checking and fault alarm notification via PC or mobile phone.
• Intelligent Controller & Full-Range Safety Protection: High-performance digital genset controller displays real-time voltage, current, frequency, coolant temperature, lube oil pressure, rotating speed, and accumulated running hours. Multiple protection functions include overspeed, high water temperature, low oil pressure, overvoltage, undervoltage, overload, short-circuit, and low fuel level, with sound-light alarm and automatic emergency shutdown to prevent unit damage.
• Reinforced Integrated Base Frame: Thick channel-steel welded base with built-in large-capacity daily fuel tank. High-density rubber shock absorbers reduce vibration and secondary noise transmission. Reserved external large fuel tank interface supports multi-day unattended operation; mobile trailer or container-type structure available as upgrade option.

• High-power output design meets large-scale industrial emergency standby power demand
• Silent canopy design satisfies urban noise-restricted outdoor deployment requirements
• ATS auto-switch function achieves 24-hour unattended power supply, reducing manual management cost
• Robust engine assembly supports long-time continuous heavy-load operation for critical loads
• Complete multi-protection mechanism effectively lowers failure risk for important power-consuming facilities
• Pre-assembled complete unit enables convenient hoisting and transportation with fast on-site installation and commissioning

Large-scale manufacturing factories, data centers, comprehensive commercial buildings, hospitals, mining sites, municipal engineering projects, port terminals, residential communities, and other facilities requiring high-power emergency electrical backup power.
