Silent Cummins Diesel Genset

Brand Name:	JFP
Model Number:	JFP-200GF
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO, CE, TLC, CCS, BV

Prime Power:

200kW / 250kVA

Standby Power:

220kW / 275kVA

Rated Frequency:

50Hz (60Hz Customizable)

Rated Voltage:

400/230V (Custom Voltages Available)

Noise Level:

≤72dB(A) @7 Meters

Dimension:

3500 × 1120 × 1700 Mm

Gross Weight:

Approx. 2500 Kg

Fuel Consumption:

205 G/kW*h

Packaging Details:

Plyfilm or plywood

Highlight:

Silent Cummins Diesel Genset

200kW Cummins Diesel Genset

250kVA Cummins Diesel Generator Set

Product Description

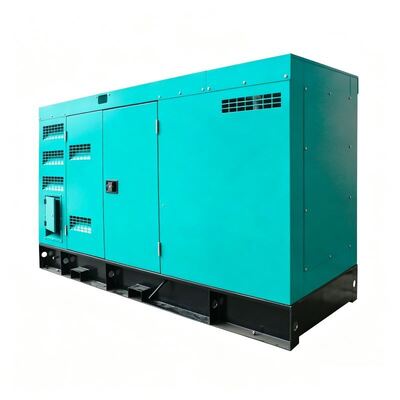

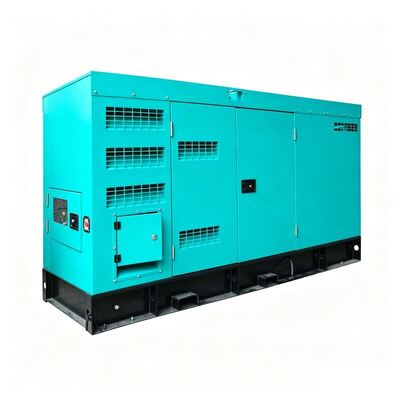

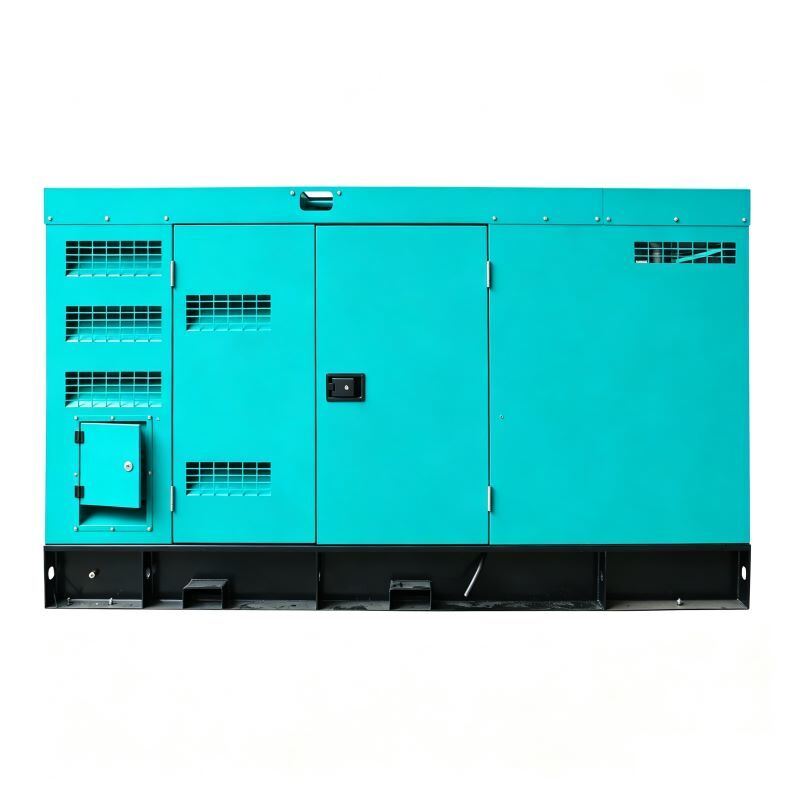

200kW (250kVA) Silent Cummins Diesel Genset with Leroy Somer Alternator

This 200kW (250kVA) silent diesel generator set combines genuine DCEC Cummins industrial diesel engine with Nidec Leroy Somer brushless alternator, housed in a heavy-duty fully enclosed silent canopy. The unit complies with ISO 8528 and CE standards, delivering stable three-phase AC power for prime power and emergency standby applications.

Product Overview

Optimized noise reduction enclosure effectively solves noise pollution problems, making it suitable for noise-restricted locations including hospitals, commercial complexes, hotels, office buildings, residential districts, factories and data centers. Robust structure supports long-duration continuous operation under variable load conditions for commercial and industrial projects.

Main Features

Genuine Dongfeng Cummins Power Unit: Original DCEC 6LTAA8.9-G2 inline 6-cylinder engine with electronic governor, turbocharged & air-air intercooled design
Nidec Leroy Somer Premium Alternator: Brushless self-excited alternator with 100% copper winding, built-in high-performance AVR, Insulation Class H, IP23 protection
High-Performance Silent Canopy System: Galvanized steel soundproof cabinet with multi-layer sound absorption, noise level ≤72dB(A) @7 meters
Intelligent Digital Control System: SmartGen or Deepsea automatic controller with real-time monitoring and complete protection
Integrated Base Frame & Vibration Isolation: Heavy steel base frame with built-in fuel tank and anti-vibration dampers
Humanized Maintenance Layout: Large lockable maintenance access doors for easy inspection and routine maintenance

Core Functions

Continuous prime power supply and emergency standby power
Real-time operation monitoring with comprehensive safety protection
Stable high-quality power for industrial equipment, lighting, and precision instruments
ATS linkage function for automatic startup upon mains failure
24V DC electric starting system for reliable low-temperature operation
Built-in base fuel tank with external extended fuel tank compatibility
Optional remote monitoring module for real-time data and remote control

Technical Specifications

Genset General Parameters

Model	200GF-Silent Cummins-Leroy Somer
Prime Power	200kW / 250kVA
Standby Power	220kW / 275kVA
Rated Frequency	50Hz (60Hz customizable)
Rated Voltage	400/230V (Custom voltages available)
Noise Level	≤72dB(A) @7 meters
Dimensions	3500 × 1120 × 1700 mm
Gross Weight	Approx. 2500 kg

Engine Specifications

Engine Brand & Model	DCEC Cummins 6LTAA8.9-G2
Structure	Inline 6-cylinder, 4-stroke, Turbocharged & Air-Air Intercooled
Displacement	8.9 L
Fuel Consumption	205 g/kW*h (100% full load)
Starting System	24V DC Electric Start

Alternator Specifications

Brand	Nidec Leroy Somer
Type	Brushless, Self-excited, AVR automatic voltage regulation
Winding	100% Pure Copper Wire
Insulation Class	H
Protection Class	IP23

Competitive Advantages

World Top Dual Brand Matching: Cummins engine + Leroy Somer alternator combination with global after-sales support

Superior Power Quality: Outstanding voltage stability and low harmonic distortion for sensitive equipment

Advanced Silent & Outdoor Adaptability: Optimized noise reduction meets urban environmental requirements

Excellent Economy & Long Service Life: Low fuel consumption and maintenance costs for long-term operation

Flexible Customization Capacity: Support for customized voltage, frequency, ATS systems, and remote monitoring

Complete Multi-layer Safety Protection: Comprehensive fault protection minimizes power outage risks

Typical Application Scenarios

Hospitals, commercial shopping malls, five-star hotels, office buildings, residential communities, industrial factories, data rooms, communication base stations, water supply & sewage treatment plants, cold storage, and construction projects.
