| Brand Name: | JFP |
| Model Number: | JFP-150GF |
| MOQ: | 1 |
| Payment Terms: | L/C,T/T |

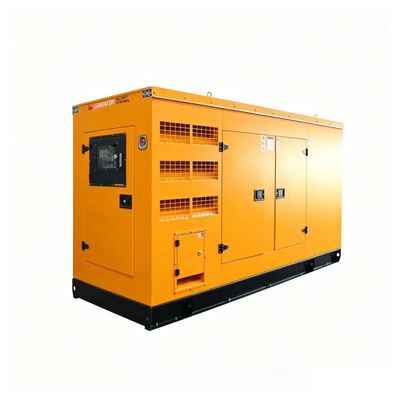

This 150kW (187.5kVA) silent diesel generator set combines genuine Cummins heavy-duty industrial diesel engine with original Stamford brushless alternator, housed in a high-strength integrated waterproof and soundproof canopy. As a premium high-power industrial and commercial power solution, this genset delivers robust power reserve, ultra-stable power output, low fuel consumption, and low-noise operation performance.
Suitable for both prime continuous power and standby emergency power, it is widely deployed in large industrial plants, data centers, municipal projects, commercial complexes, hospital systems, schools, residential communities, and noise-restricted urban areas. Fully compliant with CE, ISO9001, and ISO8528 international standards. Optional ATS automatic transfer switch and remote monitoring system support fully unattended intelligent power supply, serving as a reliable high-power backup and continuous power solution for medium and large engineering projects worldwide.

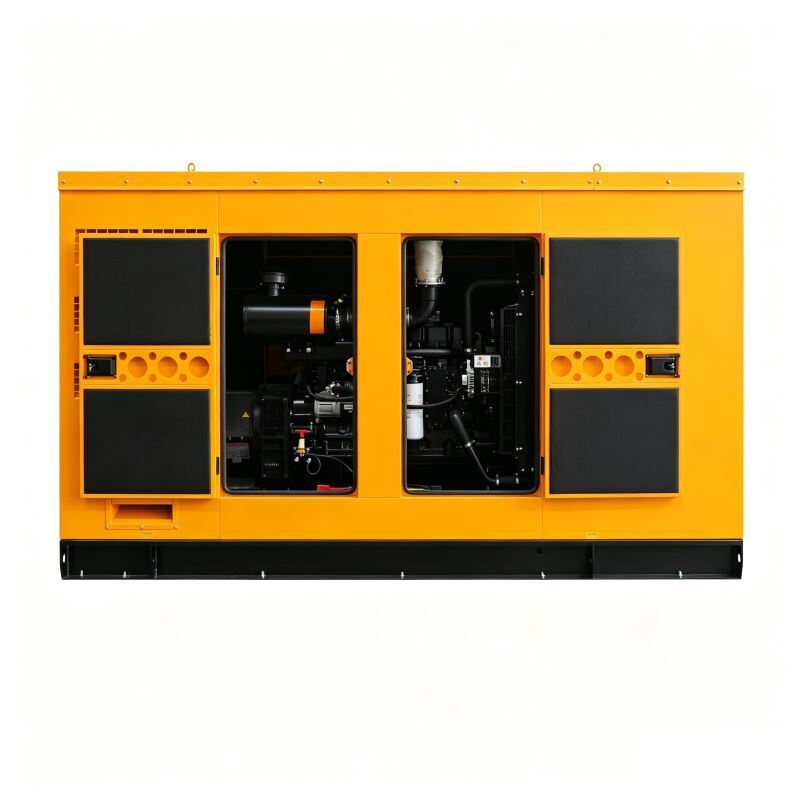

Powered by authentic Cummins 6-cylinder inline, water-cooled, turbocharged and direct-injection diesel engine (6CTA8.3-GM). With mature heavy-duty industrial manufacturing technology, it delivers abundant power reserve, fast dynamic load response, low fuel consumption and low exhaust emissions. Supported by Cummins global after-sales service network and complete spare parts supply system, the engine supports long-term 24-hour full-load continuous operation with extremely low failure rate and outstanding durability.
Equipped with world-famous Stamford 100% pure copper brushless alternator, featuring Class H high-temperature resistance insulation and IP23 dustproof and waterproof protection grade. The professional 2/3 pitch winding design and high-precision built-in AVR automatic voltage regulator ensure ultra-stable pure sine wave power output with extremely low THD. It provides strong motor starting capacity and excellent anti-interference performance, effectively protecting industrial production lines, large mechanical equipment and high-precision electrical instruments.

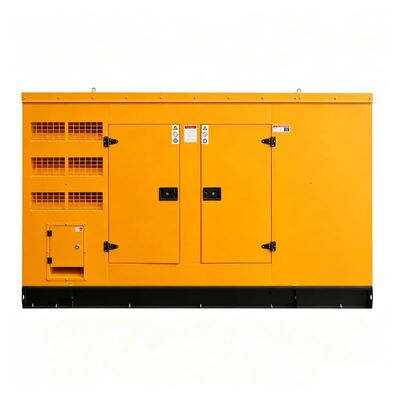

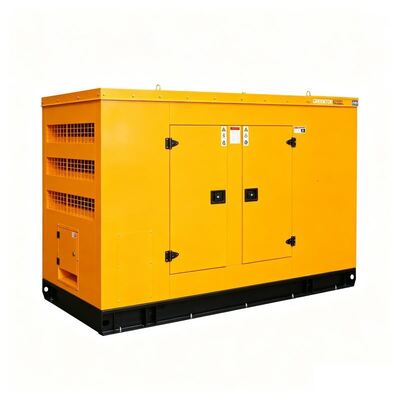

The thickened galvanized steel canopy adopts multi-layer anti-rust and anti-corrosion spraying process, filled with high-density flame-retardant sound-absorbing cotton and matched with large industrial muffler and optimized circulating air duct system. The operating noise is strictly controlled within 70-73dB(A) at 7 meters. The integrated canopy combines waterproof, dustproof, rainproof and windproof functions, fully adapting to long-term outdoor fixed installation and urban environmental protection noise-limited scenarios.
Configured with industrial-grade Smartgen or DeepSea intelligent digital controller. It enables real-time monitoring of voltage, current, frequency, coolant temperature, oil pressure, rotating speed and cumulative running hours. Built-in complete fault judgment, alarm and automatic shutdown protection functions prevent unit damage caused by abnormal working conditions and maximize operational safety.
| Prime Power | 150kW / 187.5kVA |
| Standby Power | 165kW / 206kVA |
| Power Factor | 0.8 (Lagging) |
| Phase System | 3 Phase 4 Wire |
| Rated Voltage | 400/230V (50Hz) / 220/127V (60Hz Optional) |
| Rated Frequency | 50Hz / 60Hz Customizable |
| Rated Speed | 1500RPM / 1800RPM |
| Noise Level | ≤73dB(A) @ 7m |
| Certification | CE, ISO9001, ISO8528 |
| Engine Model | 6CTA8.3-GM |
| Engine Type | 6-Cylinder, Inline, Water-Cooled, Turbocharged, Direct Injection Diesel Engine |
| Starting System | 24V DC Electric Start |
| Fuel Type | Commercial Diesel |
| Type | Brushless, Self-Excited, AVR Automatic Voltage Regulation |
| Insulation Class | H |
| Protection Class | IP23 |
| Winding Material | 100% Pure Copper |
| Output Waveform | Low Distortion Pure Sine Wave |
This 150kW silent Cummins and Stamford generator set is suitable for both emergency standby power and long-term prime power supply. It serves as an ideal high-power solution for large industrial factories, data centers, telecom hub stations, municipal engineering facilities, high-end commercial buildings, shopping malls, hotels, hospital systems, campus facilities and residential communities with strict noise control requirements.
