| Brand Name: | JFP |
| Model Number: | JFP-1600GF |
| MOQ: | 1 |
| Payment Terms: | L/C,T/T |

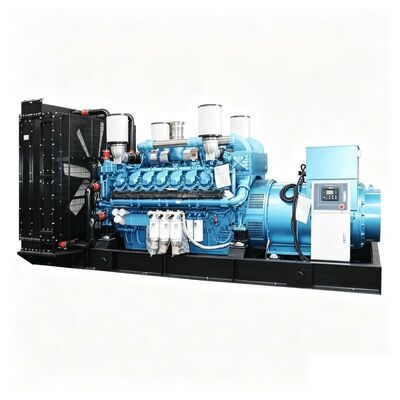

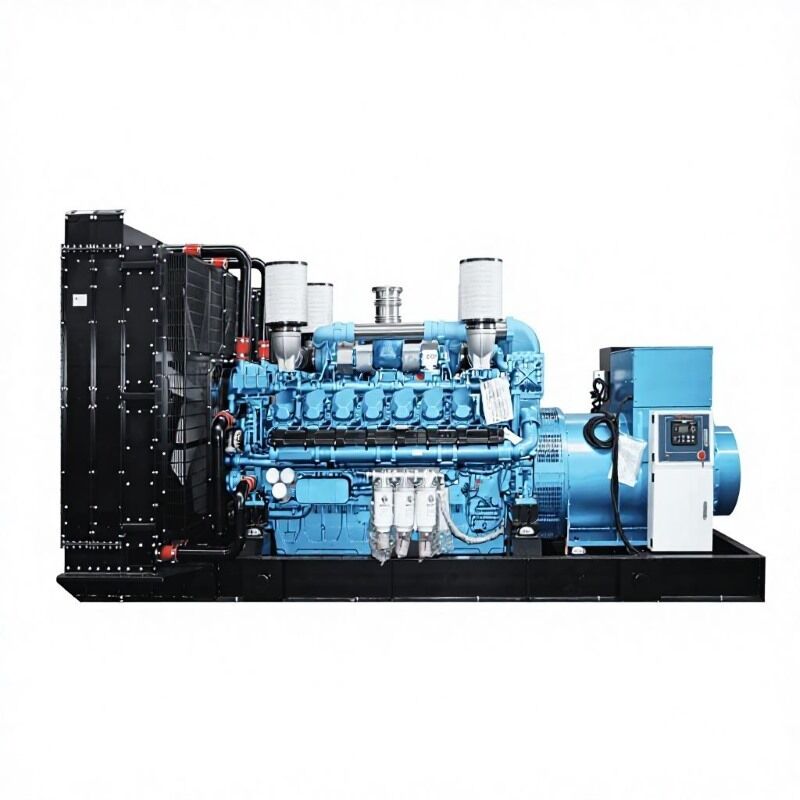

This 1600kW high-power water-cooled diesel generator set adopts Perkins 4016TAG2A V16 electronically controlled engine matched with genuine STAMFORD PI734F premium brushless alternator, manufactured in accordance with ISO 8528 international standards. With open-frame layout and professional water cooling system, the unit delivers stable emergency backup power and continuous prime power supply for large-scale industrial plants, chemical factories, mining sites, data centers, commercial complexes and critical infrastructure projects.
| Diesel Generator Details | |
|---|---|
| Model | JFP-1600GF |
| Prime Power (PRP) | 1600 kW / 2000 kVA |
| Standby Power (ESP) | 1760 kW / 2200 kVA |
| Rated Voltage | 400V / 230V, 3P4W Star Connection |
| Rated Frequency | 50 Hz |
| Rated Speed | 1500 rpm |
| Power Factor | 0.8 (Lagging) |
| Rated Line Current | 2887A |
| Application | Large-scale industrial plants, chemical factories, mining sites, data centers, commercial complexes and critical infrastructure projects |
| Diesel Engine Details | |
|---|---|
| Brand & Model | Perkins 4016TAG2A |
| Type | V16-cylinder, 4-stroke, Water-cooled, Direct Injection |
| Aspiration | Quad Turbocharged & Air-to-Water Charge Cooled |
| Bore × Stroke | 160 mm × 190 mm |
| Displacement | 61.12 L |
| Starting System | DC 24V Electrical Start |
| Fuel Consumption (1500rpm) | ≤206 g/kW·h |
| Alternator Details | |
|---|---|
| Brand | Stamford |
| Type | Brushless, Self-excited, Rotating Field, Single Bearing |
| Rated Power | Prime: 2000 kVA; Standby: 2200 kVA |
| Standard AVR | MX321 |
| Insulation Class | H |
| Protection Grade | IP23 |
| Controller Details | |
|---|---|
| Brand | Deepsea |
